The Gigabyte B760M GAMING AC DDR4 GEN5 Micro ATX Motherboard (part number B760M GAMING AC D4 GEN5) is a high-performance, compact platform designed for Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors on the LGA1700 socket. Built with GIGABYTE’s Ultra Durable™ technology, it features a 6+2+1 hybrid digital VRM with low RDS(on) MOSFETs for stable power delivery, ensuring optimal performance for modern CPUs. Supporting dual-channel DDR4 memory up to 64GB with XMP profiles reaching 5333 MT/s and beyond, it delivers robust memory performance for gaming and multitasking. The motherboard includes two PCIe 4.0 x4 M.2 slots for high-speed storage and a PCIe 5.0 x16 slot with Ultra Durable™ armor for enhanced graphics card support, doubling the bandwidth of PCIe 4.0 for next-generation devices. Connectivity is enhanced with Wi-Fi 802.11ac, 2.5GbE LAN, and versatile ports including USB-C 5Gb/s, HDMI, DisplayPort, and D-Sub. Smart Fan 6 ensures efficient cooling with multiple sensors and fan stop functionality, while DIY-friendly features like PCIe EZ-Latch, WIFI EZ-Plug, and Q-Flash Plus simplify assembly and BIOS updates. With high-fidelity audio and RGB Fusion, this motherboard offers a balanced, feature-rich solution for compact gaming and productivity builds.

Features

Durable Performance

• 6+2+1 Hybrid Digital VRM: Equipped with 6+2+1 phases digital PWM and low RDS(on) MOSFETs for precise power delivery, supporting Intel 14th, 13th, and 12th Gen processors with enhanced scalability.

• Dual Channel DDR4 Memory: Supports up to 64GB (2 x 32GB DIMMs) with XMP profiles up to 5333 MT/s (OC), ensuring compatibility and high performance for gaming and multitasking.

• PCIe 5.0 x16 Slot: Features a PCIe 5.0 x16 slot with Ultra Durable™ SMD armor, offering 32 GT/s per lane for high-performance graphics cards, storage devices, and AI accelerators, doubling PCIe 4.0 bandwidth.

• Ultra Durable™ Build: One-piece stainless-steel shielding reinforces PCIe slots for heavy graphics cards, with 1.7x stronger shearing and 3.2x stronger retention force.

• UD Power Connector: Solid-pin 8-pin CPU and 24-pin ATX connectors enhance power conductivity and thermal dissipation, reducing wear from repeated connections.

Thermal Management

• Smart Fan 6: Includes multiple temperature sensors, three system fan headers, and hybrid PWM/DC fan support (up to 24W each) with fan stop functionality and dual curve modes (Slope/Stair) for quiet, efficient cooling.

• VRM Thermal Design: Enlarged VRM heatsinks improve heat dissipation, ensuring system stability under heavy loads.

Future Connectivity

• Wi-Fi 802.11ac: Realtek® RTL8821CE module supports dual-band 2.4/5 GHz with speeds up to 1.73Gbps and Bluetooth 5.0 for reliable wireless connectivity.

• 2.5GbE LAN: Realtek® 2.5GbE LAN chip provides up to 2.5Gbps for fast, stable wired networking, ideal for gaming and cloud computing.

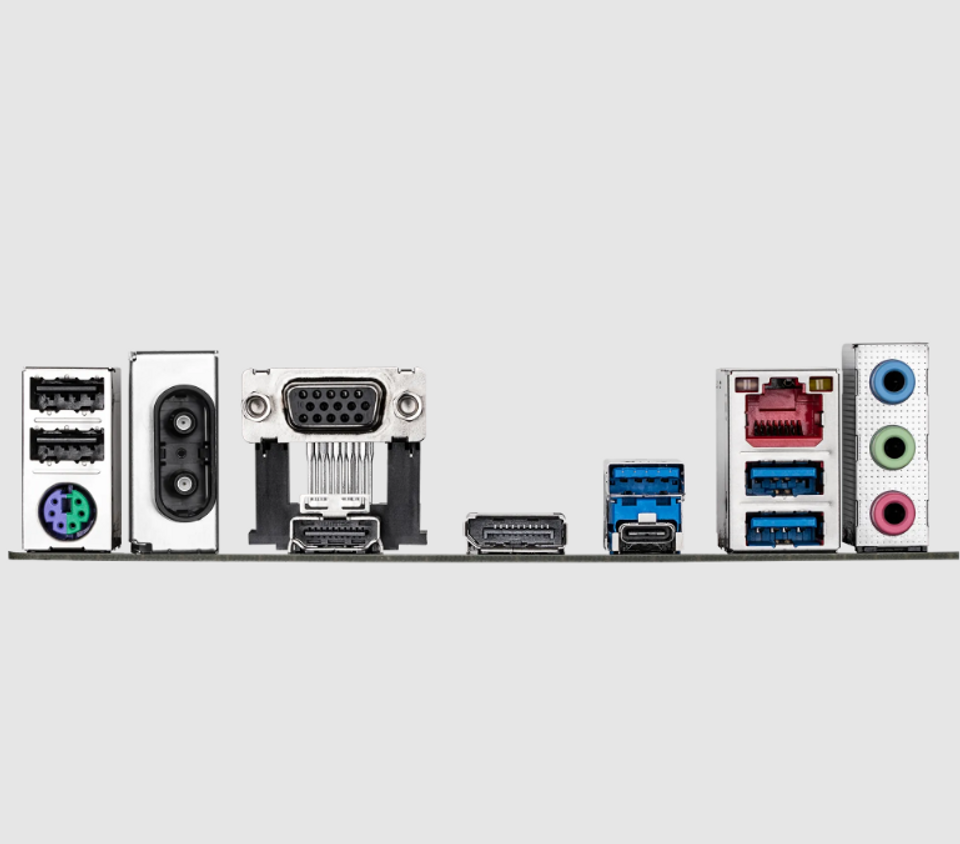

• Extended Connectivity: Features rear USB-C 5Gb/s, three USB 3.2 Gen 1 ports, two USB 2.0 ports, HDMI (4096x2160@60Hz), DisplayPort (4096x2304@60Hz), and D-Sub (1920x1200@60Hz), supporting up to triple displays.

• Storage Options: Includes two PCIe 4.0 x4 M.2 connectors (type 2280) and four SATA 6Gb/s connectors with RAID 0, 1, 5, and 10 support for high-speed, flexible storage configurations.

Hi-Fi Audio

• High-End Audio Solution: Realtek® Audio CODEC supports 2/4/5.1/7.1-channel high-definition audio with S/PDIF Out and high-quality capacitors for immersive sound.

• Audio Noise Guard: Separates analog audio components at the PCB level to minimize noise, delivering clear and realistic audio for gaming and multimedia.

Easy and Friendly Design

• PCIe EZ-Latch: Simplifies graphics card removal from the PCIe 5.0 x16 slot, streamlining upgrades and maintenance.

• WIFI EZ-Plug and Compass: Integrates Wi-Fi antenna plugs into a single adapter with auto-detection for optimal signal strength, enhancing wireless setup ease.

• Q-Flash Plus: Enables BIOS updates without CPU, memory, or graphics card, using a USB flash drive and dedicated button for seamless firmware updates.

• UC BIOS with PerfDrive: Redesigned interface with nine customizable quick-access slots and exclusive performance optimization settings based on cooling configurations.

• Gigabyte Control Center (GCC): Unified software for managing RGB Fusion, system settings, and auto-updates with an intuitive, modular interface.

• RGB Fusion: Supports two addressable RGB Gen2 LED headers and one RGB LED header for customizable lighting.
