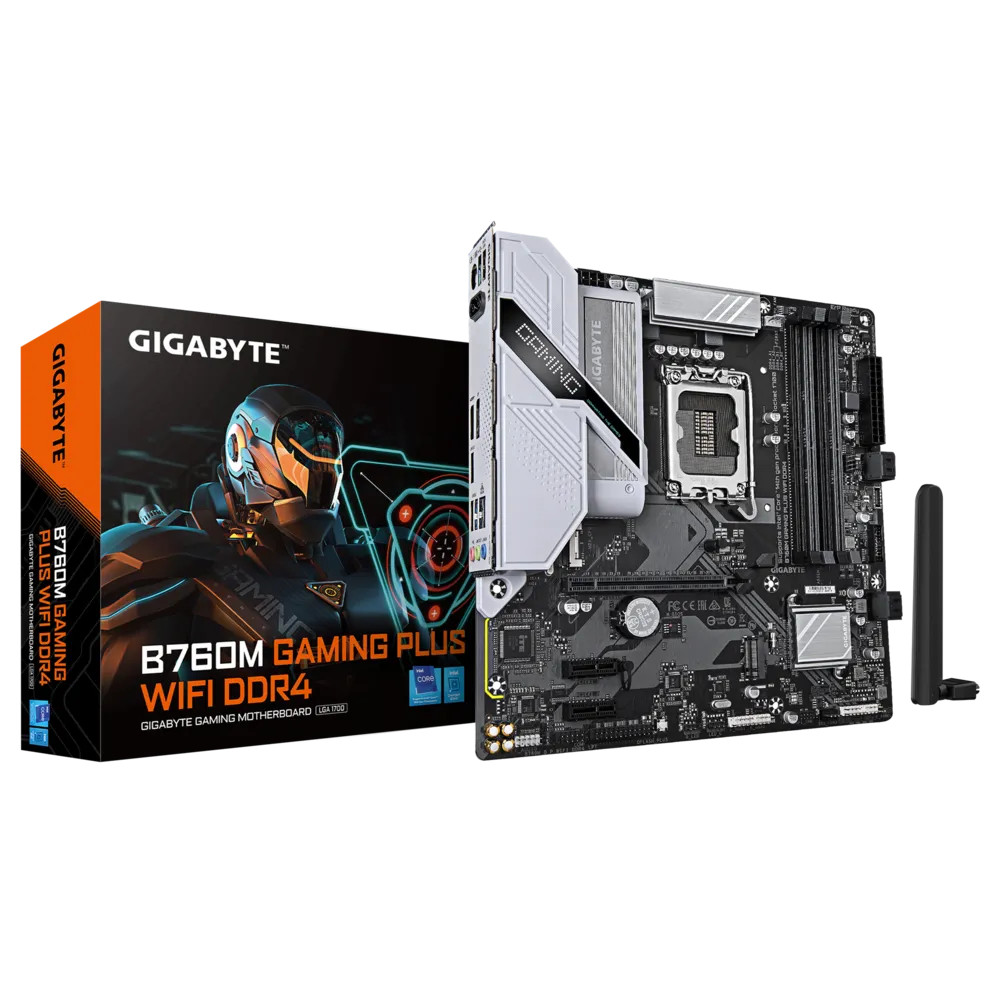

Gigabyte B760M Gaming Plus WiFi DDR4 Micro ATX Motherboard – Intel LGA1700, 14th/13th/12th Gen CPU Support, Dual M.2 PCIe 4.0, Wi-Fi 6, USB-C - B760M G P WIFI DDR4

The Gigabyte B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard (rev. 1.1) is a versatile and reliable platform designed to support Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors, offering a robust foundation for gaming, productivity, and multimedia builds. Built with GIGABYTE’s Ultra Durable technology, this motherboard features a 4+1+1 hybrid digital VRM design with low RDS(on) MOSFETs and premium components for stable power delivery, ensuring optimal performance for modern CPUs. It supports up to 128GB of DDR4 memory with XMP profiles up to 5333 MT/s (OC), providing excellent compatibility and performance for gaming and multitasking. The motherboard includes two PCIe 4.0 x4 M.2 slots and four SATA 6Gb/s connectors for high-speed storage, complemented by advanced connectivity options like Wi-Fi 6, GbE LAN, and front USB-C 5Gb/s. Its thermal design, with an enlarged MOSFET heatsink, ensures efficient heat dissipation, while Smart Fan 6 offers precise cooling control with fan stop functionality. DIY-friendly features such as WIFI EZ-Plug, PCIe EZ-Latch, and Q-Flash Plus simplify assembly and BIOS updates, even without a CPU, memory, or GPU installed. With high-quality audio, RGB Fusion, and an intuitive UC BIOS, this Micro ATX motherboard delivers a balanced blend of performance, connectivity, and ease of use for compact, high-performance PC builds.

Features

Durable Performance

• Hybrid 4+1+1 Digital VRM Design: Equipped with 4+1+1 phases digital PWM and low RDS(on) MOSFETs, paired with premium chokes and capacitors, ensuring stable power delivery for Intel 14th, 13th, and 12th Gen processors, supporting enhanced system performance and scalability.

• DDR4 XMP Support up to 5333 MT/s: Supports up to 128GB of DDR4 memory across four DIMMs with dual-channel architecture and XMP profiles, delivering high-speed performance and compatibility for gaming and multitasking (varies by memory module and CPU configuration).

• PCIe 4.0 Ready Design: Features a PCIe 4.0 x16 slot for graphics cards or NVMe SSDs and two PCIe 4.0 x4 M.2 slots, providing superior bandwidth and performance for next-generation devices.

Thermal Management

• Enlarged MOSFET Heatsink: Large surface area heatsink design significantly improves heat dissipation, maintaining optimal temperatures for reliable performance under load.

• Smart Fan 6: Includes multiple temperature sensors, hybrid fan headers with PWM/DC support, and fan stop functionality, offering high current support (up to 24W per header) and precise fan curve control with Slope/Stair dual modes for quiet, efficient cooling.

Future Connectivity

• Wi-Fi 6 and Bluetooth 5.3: Realtek Wi-Fi 6 RTL8851BE supports 802.11ax with speeds up to 2.4Gbps and 2.4/5 GHz bands, paired with Bluetooth 5.3 for 4X range and faster transmission, ensuring smooth streaming and gaming experiences.

• GbE LAN: Realtek Gigabit Ethernet delivers up to 1 Gbps for fast, responsive network performance, ideal for streaming, file transfers, and online gaming.

• Extended Connectivity: Features front USB-C 5Gb/s (USB 3.2 Gen 1), five USB 3.2 Gen 1 ports, HDMI 2.1 (4096x2160@60 Hz), and DisplayPort 1.2 (4096x2304@60 Hz) for versatile peripheral and display options.

• High-Speed Storage: Includes two PCIe 4.0 x4 M.2 connectors (type 2280) and four SATA 6Gb/s connectors with RAID 0, 1, 5, and 10 support, enabling fast and flexible storage configurations.

Hi-Fi Audio

• High-End Audio Solution: Realtek Audio CODEC with high-quality capacitors and audio noise guard supports 2/4/5.1/7.1-channel high-definition audio and S/PDIF Out, delivering immersive, high-fidelity sound for gaming and multimedia.

• Audio Noise Guard: Separates sensitive analog audio components at the PCB level to minimize noise pollution, ensuring clear and realistic audio output.

Easy and Friendly Design

• WIFI EZ-Plug: Simplifies Wi-Fi antenna installation with a single, quick-connect adapter, enhancing the DIY experience for seamless setup.

• PCIe EZ-Latch: Allows easy removal of graphics cards from the PCIe 4.0 x16 slot, streamlining upgrades and maintenance.

• Q-Flash Plus: Enables BIOS updates without installing CPU, memory, or graphics card, using a USB flash drive and a dedicated onboard button for effortless firmware updates.

• UC BIOS with PerfDrive: Redesigned with an intuitive interface, 9 customizable quick-access slots, and exclusive performance optimization settings based on cooling configurations, enhancing user control and system tuning.

• Gigabyte Control Center: Unified software platform with intuitive interface, modularized control, and auto-update functionality for managing RGB Fusion, system settings, and performance monitoring.

• RGB Fusion: Supports one addressable LED header and one RGB LED header for customizable lighting, allowing users to personalize their PC’s aesthetic.

• Smart Fan 6 BIOS UI: Enhanced fan curve control with 7 control points, Slope/Stair dual modes, manual input, EZ Tuning, and savable fan curve profiles in BIOS ROM for precise and persistent cooling adjustments.

Ultra Durable Build

• 8-Pin Solid Pin CPU Power Connector: Enhances power delivery reliability for stable performance under high loads, ensuring durability for demanding applications.

• Micro ATX Form Factor: Compact 24.4cm x 24.4cm design balances performance and space efficiency, ideal for compact gaming or productivity builds.

• PCIe 4.0 Ready PCB: High-quality PCB with premium components ensures long-term reliability and compatibility with modern hardware.
