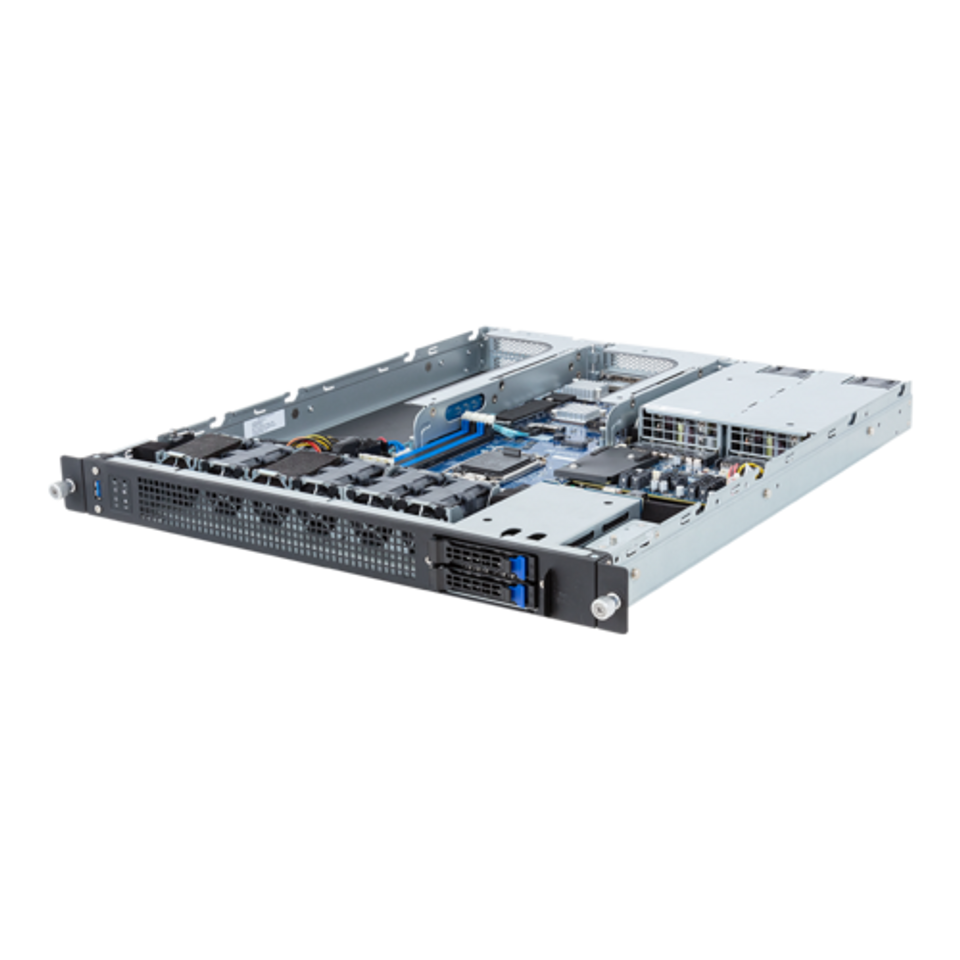

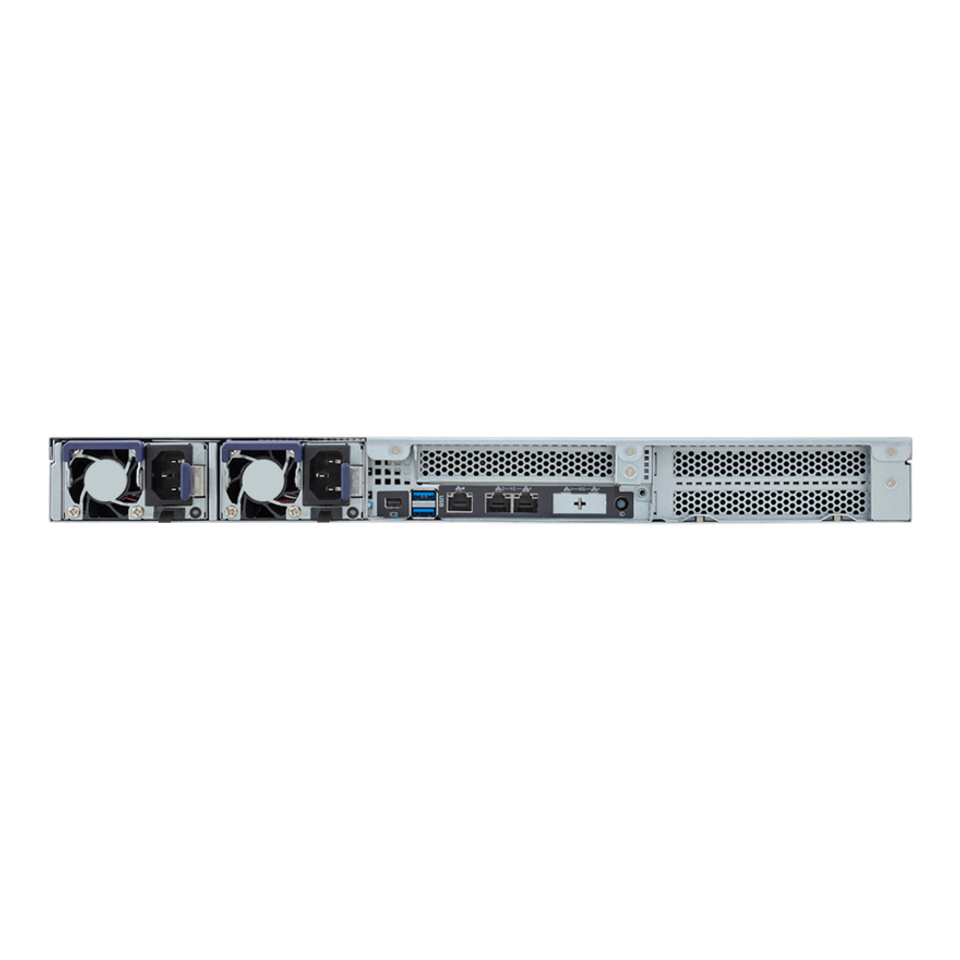

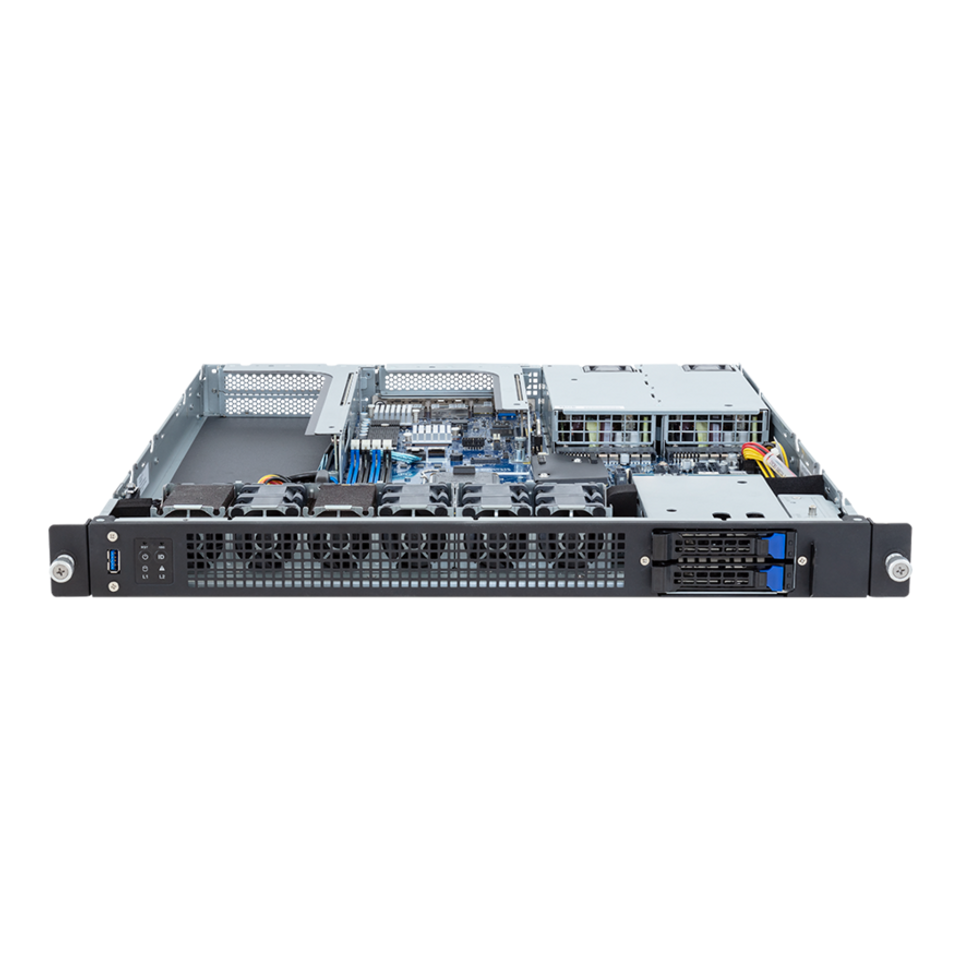

Gigabyte E133-X10 Edge Server - Intel Xeon E-2400 - 1U UP 2-Bay SATA
- Intel Xeon E-2400 Processors
- Intel Pentium Gold G7400 / G7400T Processor
- Single processor, LGA 1700
- Dual Channel ECC / non-ECC DDR5 UDIMM, 4 x DIMMs
- 2 x 1Gb/s LAN ports (Intel I210-AT)
- 1 x Dedicated management port
- 2 x 2.5" SATA hot-swappable bays
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 1 x FHFL PCIe Gen5 x16 or 2 x FHFL PCIe Gen5 x8 slots
- 1 x FHHL PCIe Gen4 x4 slot
- 1+1 800W 80 PLUS Titanium redundant power supplies
Intel Xeon E-2400 Processors
Designed for small businesses and cloud services, the new Intel Xeon E-2400 Processors offers options with 4, 6, or 8 cores. These processors support both DDR5 ECC UDIMMs and a maximum of 16 lanes PCIe 5.0 and 24 lanes PCIe 4.0 with the new Intel C260 Series Chipsets. On specific processors, the single core frequency can boost up to an astonishing 5.6 GHz with Intel Turbo Boost Technology. Bringing a high performance, reliable, and cost effective option for entry-level services all under the TDP of 95W.
E133-X10-AAG1 Block Diagram

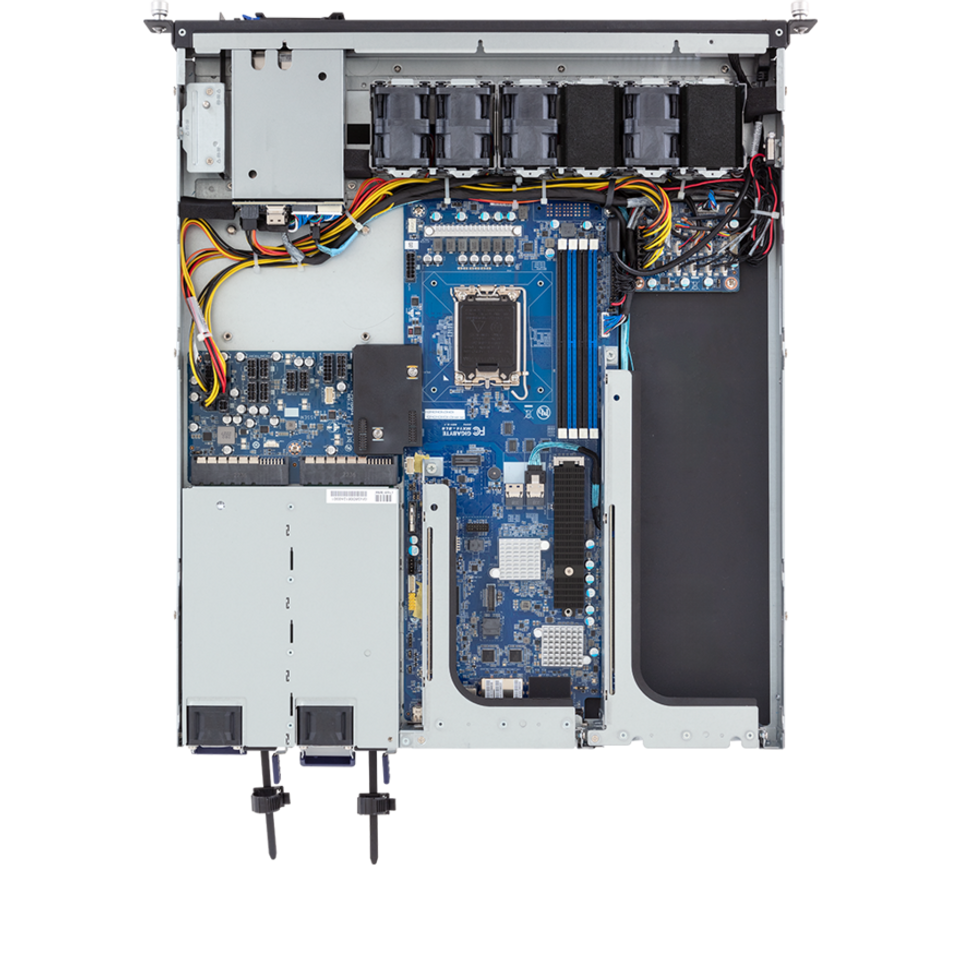

E133-X10-AAG1 Product Overview
Power Efficiency
Automatic Fan Speed Control
Gigabyte servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, Gigabyte has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, resulting in a 10% improvement in efficiency.
High Availability
Smart Ride Through (SmaRT)
To prevent server downtime and data loss as a result of loss of AC power, Gigabyte implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.
Smart Crises Management and Protection (SCMP)
SCMP is a Gigabyte patented feature which is deployed in servers with non-fully redundant PSU design. With SCMP, in the event of faulty PSU or overheated system, the system will force the CPU into an ultra-low power mode that reduces the power load, which prevents the system from unexpected shutdown and avoids component damage or data loss.
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. Gigabyte TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
User Friendly
Tool-less Drive Bays Design
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
Value-added Management
Gigabyte offers free-of-charge management applications via a specialized small processor built on the server.
Gigabyte Management Console
For management and maintenance of a server or a small cluster, users can use the Gigabyte Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the Gigabyte Management Console also provides:
- Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- Integrate SAS/SATA/NVMe devices and RAID controller firmware into Gigabyte Management Console to monitor and control Broadcom® MegaRAID adapters.
Gigabyte Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all Gigabyte servers and has support for Windows and Linux. GSM can be downloaded from Gigabyte website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:
- GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
- GSM CLI: A command-line interface for monitoring and managing remotely.
- GSM Agent: A software program installed on each Gigabyte server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
- GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
- GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
