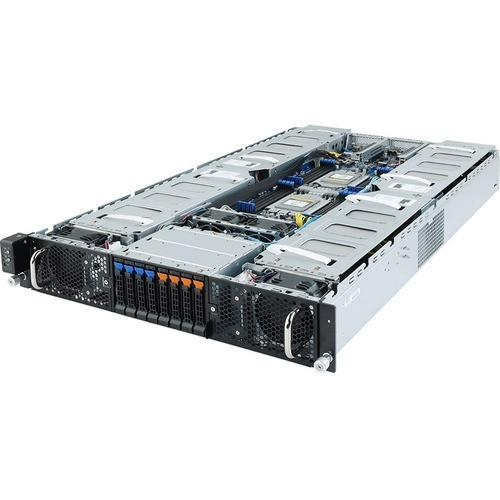

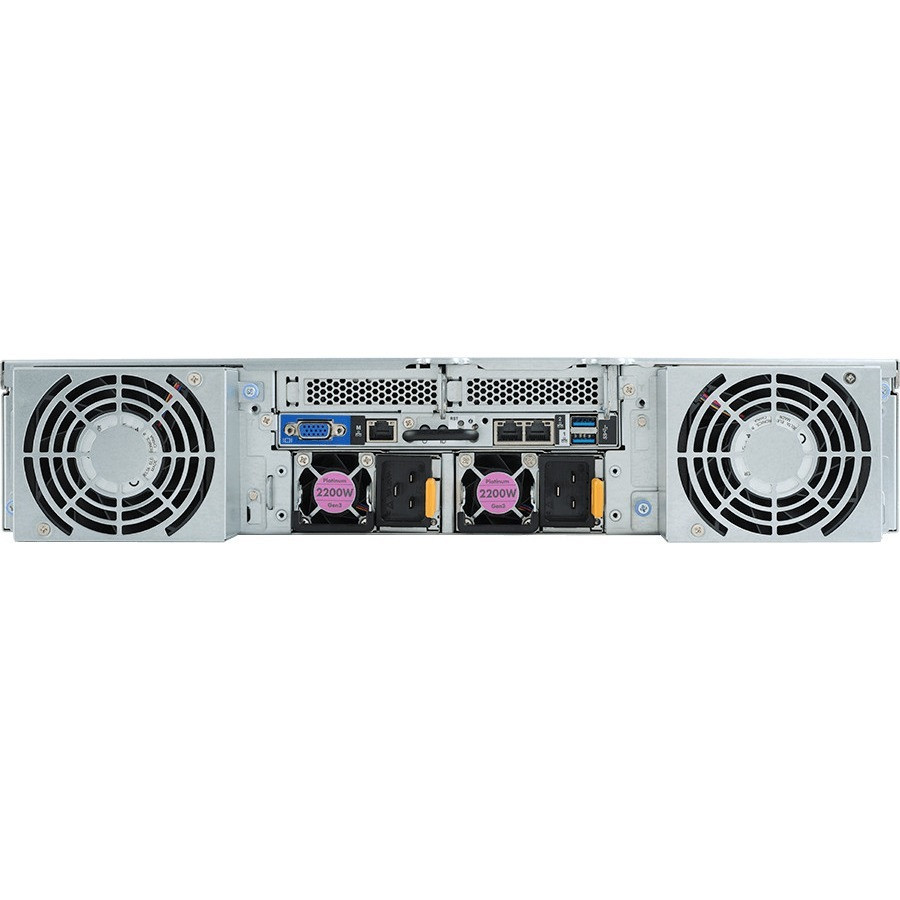

Gigabyte G292-Z42 Barebone System - 2U Rack-mountable - Socket SP3 - 2 x Processor Support - AMD Chip - 128 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 16 Total Memory Slots - Serial ATA/600 Controller - ASPEED AST2500 Graphic(s) - 8 2.5" Bay(s) - 8 SATA Interface(s) - Processor Support (EPYC) - 10 Gigabit Ethernet, Gigabit Ethernet - 2 USB 3.0 Port(s) - 2 x 2200 W - 1 Year

• Supports up to 8 x double slot GPU cards
• Dual AMD EPYC™ 7002 series processor family
• 8-Channel RDIMM/LRDIMM DDR4 per processor, total 16 x DIMMs
• 2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2 controller)
• 1 x Dedicated management port
• 8 x 2.5" hot-swappable HDD/SSD bays
• 8 x PCIe Gen3 expansion slots for GPUs
• 2 x PCIe Gen4 x16 half-length low-profile slots for add-on cards
• Aspeed® AST2500 remote management controller
• 2+0 2200W 80 PLUS Platinum power supply

AMD EPYC™ 7002 Series Processor (Rome)

The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.

• Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption
• Up to 64 core per CPU, built using Zen 2 high performance cores and AMD's innovative chiplet architecture
• Supporting PCIe Gen 4.0 with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0
• Embedded security protection to help defend your CPU, applications, and data

Gigabyte Management Console (AMI MegaRAC SP-X)

This Gigabyte server product utilizes a AMI MegaRAC SP-X platform for BMC server management, with a feature rich and easy to use browser-based graphical user interface.
Notable features include:

• RESTful API support (including the latest DMTF standards of Redfish) allows the administrator to integrate with 3rd party applications for server management
• HTML5-based iKVM remote management client included as a standard feature, no additional add-on license required to purchase
• Detailed FRU information from SMBIOS
• Pre-event automatic video recording feature from 10 to 30 seconds
• SAS / RAID controller monitoring feature

Easy BIOS Refresh

Gigabyte has also developed this integrated function (requiring no additional software) that allows users to update the BIOS of motherboards through the BMC controller:

• No need to install core components such as CPUs, memory, drives and OS
• No need to power on the system (NB. PSU must be connected)
• Update individual (IPMI 2.0) or multiple boards simultaneously (Command Line)

Gigabyte Server Management (GSM)

Gigabyte Server Management (GSM) is GIGABYTE's proprietary multiple server remote management software platform, available as a free download from each Gigabyte server product page. GSM is compatible with either IPMI or Redfish (RESTful API) connection interfaces, and comprises the following sub-programs:

• GSM Server, a software program with an easy to use browser-based GUI to enable global remote monitoring and management of multiple Gigabyte servers via each server node's BMC.
• GSM CLI, a command-line interface program to enable global remote monitoring and management of multiple Gigabyte servers via each server node's BMC.
• GSM Agent, a software program installed locally on each Gigabyte server node that retrieves additional node information (CPU/Mem/HDD/PCI/...) from the OS and passes it to the BMC. This information can then be utilized by GSM Server or GSM CLI.
• GSM Mobile, a remote server management mobile APP, available for both Android and iOS.
• GSM Plugin, a plugin that allows the user to manage and monitor Gigabyte server nodes within VMware's vCenter.

Features

• Perform computational tasks effectively accrediting the EPYC processor
• With Serial ATA/600 interface get superb reliability and high-speed data transfer
• DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
• Optimize business network's performance with 10 Gigabit Ethernet connectivity
• Provides 2 USB ports for responsive and expanded device connections
