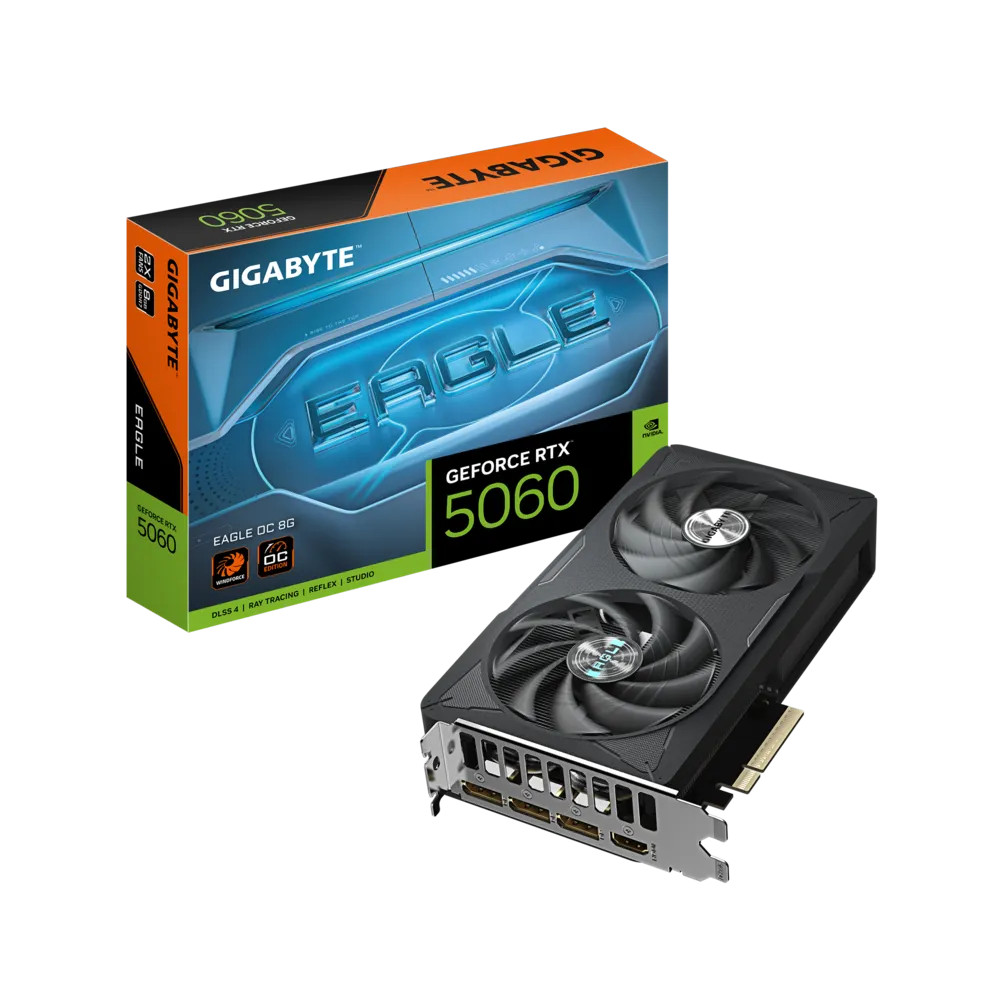

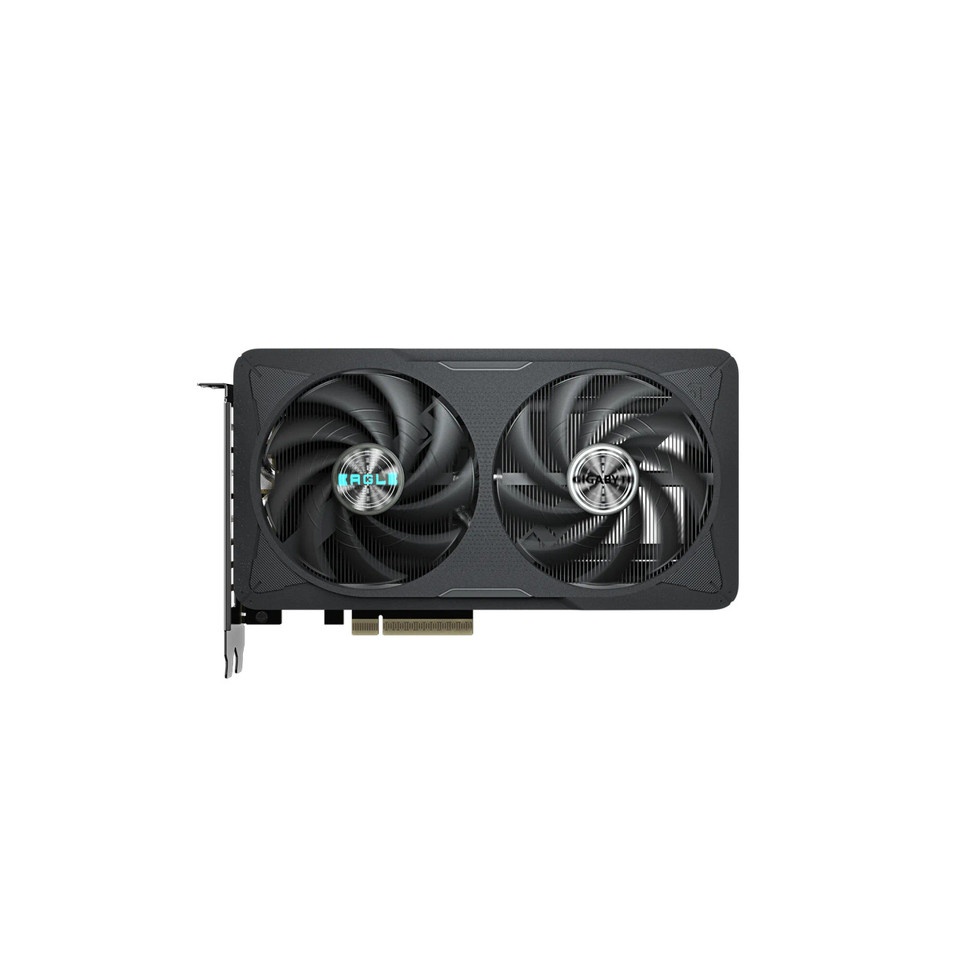

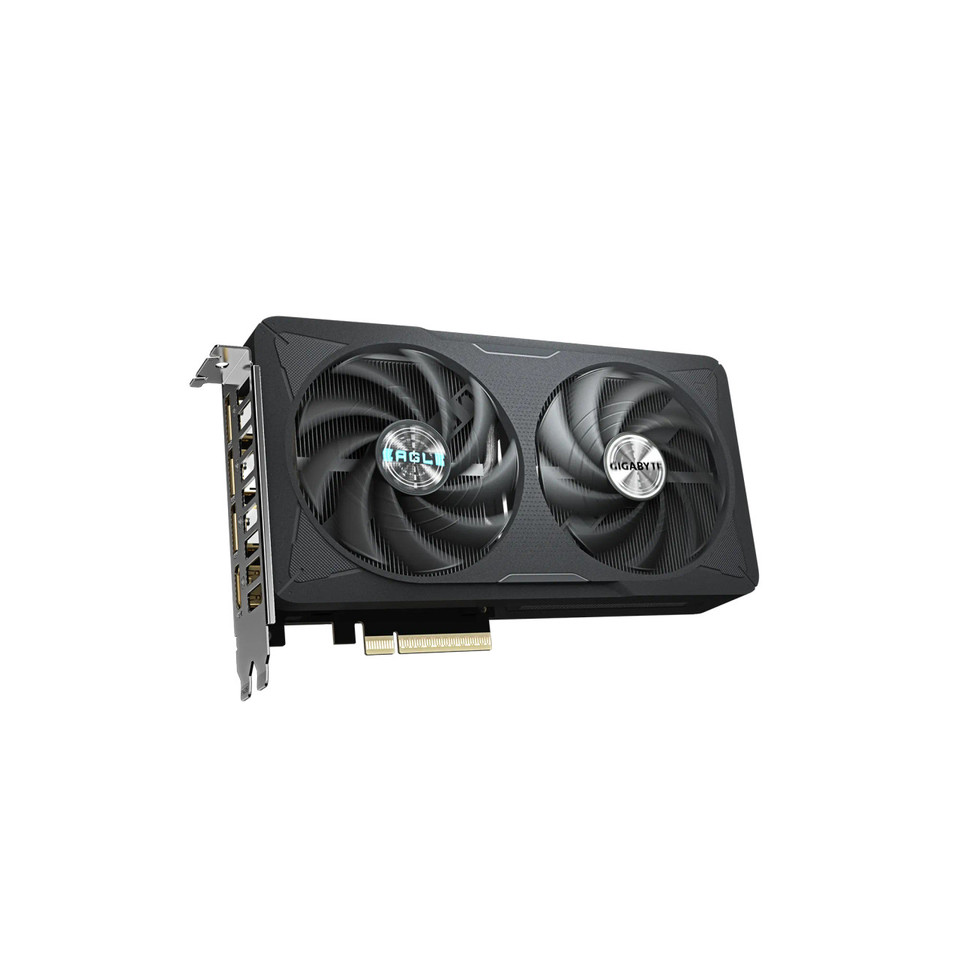

Gigabyte GeForce RTX 5060 EAGLE OC 8G - GV-N5060EAGLE OC-8GD
FEATURES
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5060
- Integrated with 8GB GDDR7 128bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade Thermal conductive gel
- Reinforced structure
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
ASTONISHING EXTERIOR DESIGN
The design inspiration for the EAGLE series stems from the fusion of aerospace battleships and sci-fi elements. Its unique curved contours outline a streamlined appearance, complemented by segmented lines resembling disassembled deck components, evoking the intricate structure of a spaceship. This design infuses the overall aesthetic with a rich cosmic technology vibe, showcasing the futuristic aesthetics and craftsmanship in every detail.
SIGNATURE IDENTITY
The frontal design boldly integrates aerospace and sci-fi elements, clearly showcasing the distinctive EALGE style, while maintaining a cohesive aesthetic with the motherboard product line. This ensures a unified design language and reinforces product family identity.
DYNAMIC PULSATING VISUAL
The addition of pulsating elements on the front enhances the overall look with a more depth and dynamics feel, creating a strong sci-fi vibe.

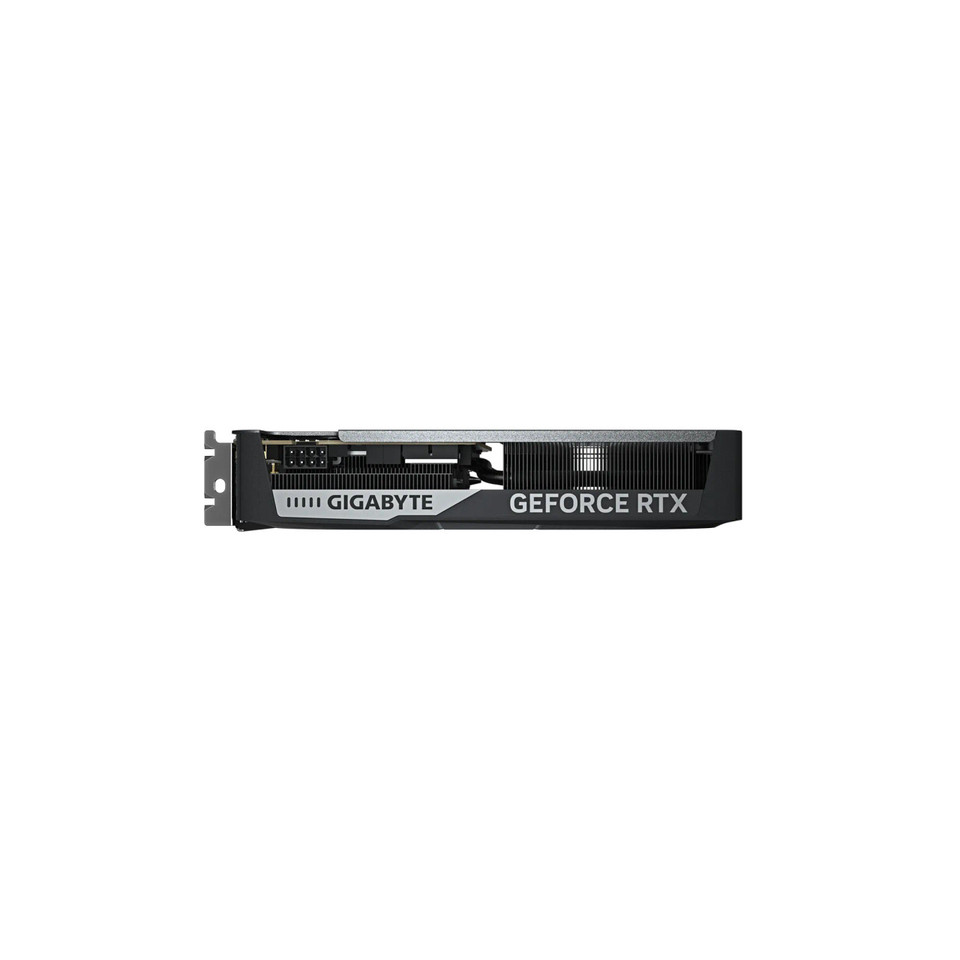

REINFORCED STRUCTURE
The reinforced backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
SPECIFICATION
- Graphics Processing: GeForce RTX 5060
- Core Clock: TBD
- CUDA Cores: 3840
- Memory Clock: 28 Gbps
- Memory Size: 8 GB
- Memory Type: GDDR7
- Memory Bus: 128 bit
- Card Bus: PCI-E 5.0
- Digital max resolution: 7680x4320
- Multi-view: 4
- Card size: L=208 W=120 H=40
- PCB Form: ATX
- DirectX: DirectX 12 API
- OpenGL: 4.6
- Recommended PSU: 450W
- Power Connectors: 8 Pin*1
- Output;DisplayPort 2.1b *3
HDMI 2.1b *1 - Accessories: Quick guide
