- Hardware-level root of trust support
- Ampere Altra Max or Altra Processors
- Single processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x 1Gb/s LAN ports (Intel I350-AM2)
- 1 x Dedicated management port
- 8 x 2.5" SATA hot-swappable bays
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 6 x LP PCIe Gen4 x16 and x8 slots
- 1+1 800W 80 PLUS Platinum redundant power supplies
Ampere Altra Max Processor
Cloud Native Server Processors
Ampere’s Altra family of processors are designed to deliver on predictable performance, high scalability and power efficiency. Ampere’s leadership on all these metrics deliver exceptional results and lower the TCO for Cloud Service Providers.
- Cloud and Edge
- PCIe Gen 4, 128 lanes (1P) / 192 lanes (2P)
- 8 channel memory, 3200MHz
- Single and Dual Socket
- 96-128 cores
- Leadership in performance/watt
- Leadership in watts/core
Arm System Ready
Arm SystemReady
New generation cloud native platform with larger scope that includes Server, Embedded, and Linux.
Arm ServerReady
Arm has developed two generations of processors so far. Gigabyte has assisted and supported Arm in developing solutions, including the v1.0 & 2.0 ServerReady program since 2018. Gigabyte is the only server hardware manufacturer listed on Arm’s official website under Partner Testimonials.
Why Ampere Altra Max based Server?
Performance Boost
Up to 80 /128 cores and 128 PCIe lanes demand data to be processed quickly and more jobs at the same time.
Architecture Efficiency
Designed for Cloud and Edge (cloud ecosystem native platform) and provides a high number of computing cores, faster throughput, and low power consumption.
Aggregate Powerhouse
Provides a management tool for cloud and edge to simplify management and improve efficiency.
Superhighway of Data
Utilizing the latest in PCIe 4.0 and 128 PCIe lanes allows faster throughput in GPUs, storage and networking.
Green Savings
Best in class performance/watt, Ampere Altra continues to increase value while driving down TCO.
Cooperation
Gigabyte has developed with Arm systems for almost 10 years. Servers will be ready with fast TTM and product offerings.

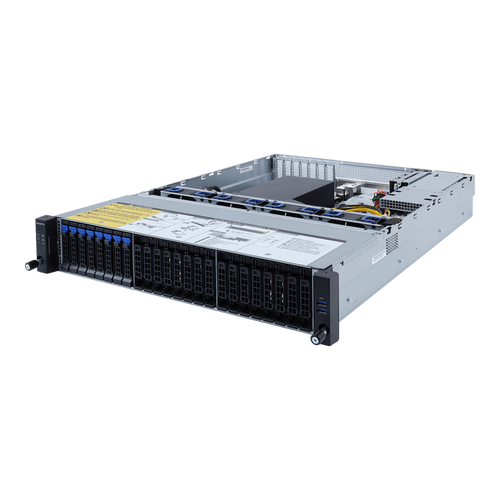

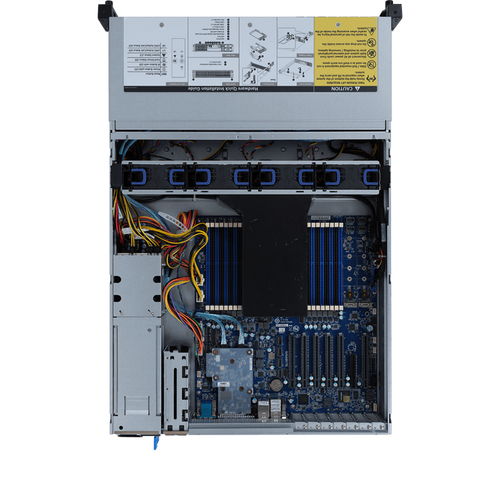

R272-P30 Product Overview
R272-P30 Block Diagram
Hardware Security
Hardware-level Root of Trust (RoT)
Protection is built in the silicon to ensure systems will not be vulnerable to security attacks or cyber threats. This ROT helps isolate the system as the boot process starts to verify cryptographic operations and ensures the firmware is not compromised by malware.
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. Gigabyte TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Power Efficiency
Automatic Fan Speed Control
Gigabyte servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
Cold Redundancy
To take advantage of the fact that a PSU will run at greater power efficiency with a higher load, Gigabyte has introduced a power management feature called Cold Redundancy for servers with N+1 power supplies. When the total system load falls lower than 40%, the system will automatically place one PSU into standby mode, resulting in a 10% improvement in efficiency.
High Availability
Smart Ride Through (SmaRT)
To prevent server downtime and data loss as a result of loss of AC power, Gigabyte implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.
User Friendly
Tool-less Drive Bays Design
Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.
Server Management
Gigabyte offers free-of-charge server management applications via small processor (BMC) built on the server.
Provides:
- Server health monitoring
- Remote troubleshooting
- Resource utilization monitoring
- Reduction in server downtimes
Gigabyte Management Console
- Single server management
- Feature-rich and easy to use browser-based interface
- Integration of 3rd party applications
- Automatic recording function
- SAS / RAID controller monitoring function
Gigabyte Server Management (GSM)
- Multiple server management platform
- Compatible w/ IPMI or Redfish
