Gigabyte W332-Z00 AMD Ryzen Tower Entry Workstation
KEY FEATURES
- AMD Ryzen 7000 Series Processors
- Dual Channel ECC / Non-ECC DDR5 Unbuffered DIMM, 4 DIMMs
- Realtek DASH Remote Management
- Realtek 2.5GbE LAN and GbE DASH LAN
- PCIe Gen5 Ready x16 slot and M.2 slot
- Rear HDMI / DP Support
- Up to 2x 3.5” HDD bays and 2x M.2 slots
- 500W 80 PLUS Bronze single power supply
The Future of Ryzen Processors
AMD Ryzen 7000 Series processors are the first generation of CPUs on the new AMD Socket AM5 platform, and Gigabyte has motherboards, workstations, and servers to support them. The processors are built with AMD “Zen 4” architecture that includes high-speed DDR5 memory, high-throughput PCIe 5.0 lanes, and hyper-efficient 5nm manufacturing. With the latest technologies and advanced features, the AMD Ryzen 7000 processors deliver a fresh user experience. They can easily handle compute heavy workloads, yet they are diverse enough that users can find an optimal choice whether that be for enterprise or consumer applications where performance, productivity, and efficiency matter.
Zen 4
architecture
Up to 16
cores
5nm
technology
AM5
socket
B650E
chipset
PCIe 5.0
support
DDR5
memory

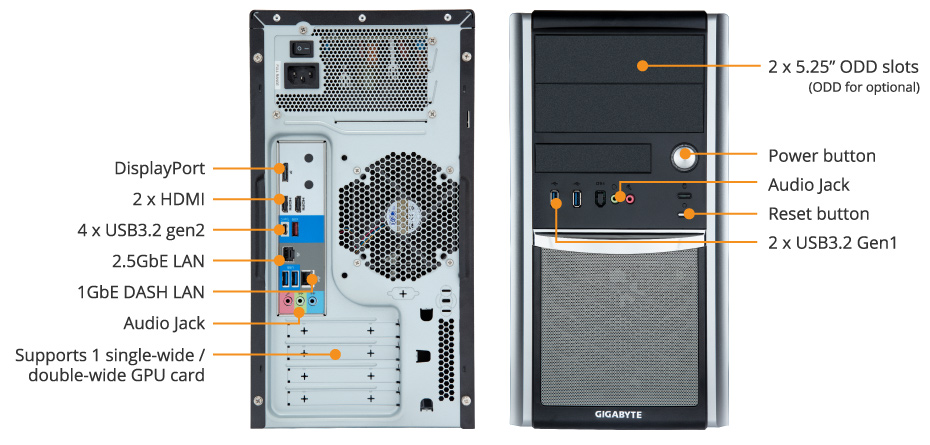

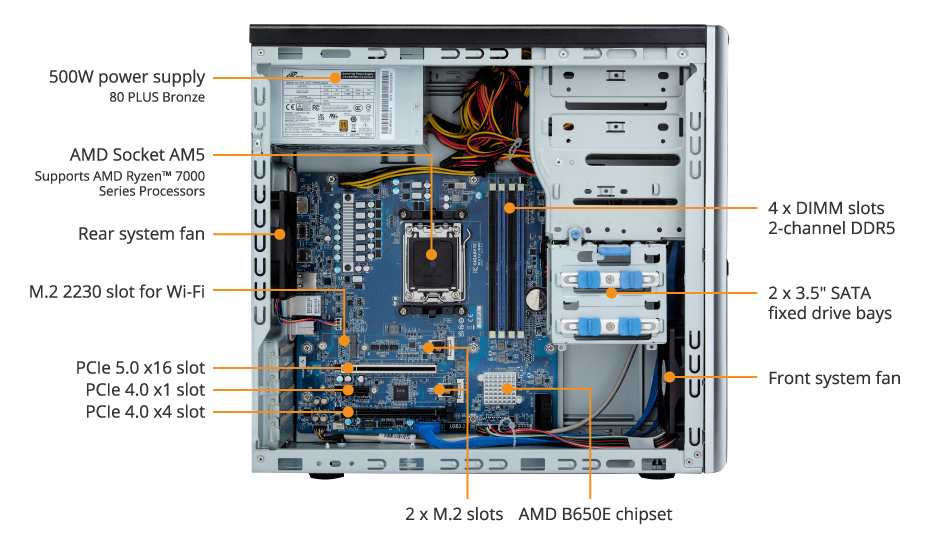

W332-Z00 Product Overview

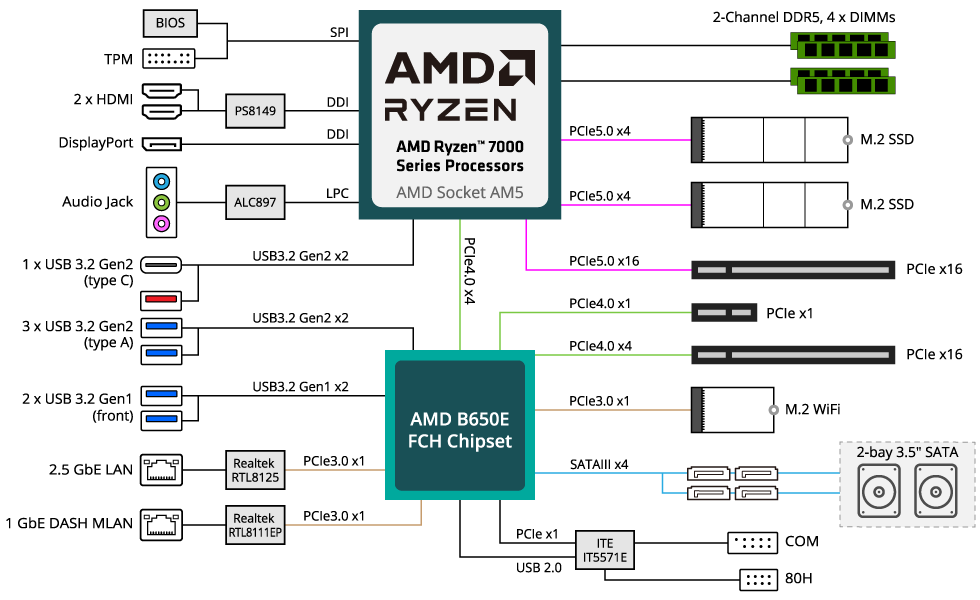

W332-Z00 Block Diagram
Memory Support
- 4 unbuffered DIMMs memory socket with 2-Channel
- ECC/Non-ECC; DDR5 support
- Up to 5200MHz for 1DPC; up to 3600MHz for 2DPC
PCIe 5.0 Ready Design
MC13-NB0 equips several new components to ensure the best PCIe 5.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, Switches that are specifically designed for PCIe 5.0.
There will be no compromised on PCIe 5.0 performance on PCIe and M.2 interface.
Value-added Management
Realtek GbE NIC with DASH capabilities
Built with a Realtek GbE NIC with DASH capabilities can utilize the easy-to-use Realtek Remote Management Console that employs DASH standards to manage and monitor client devices. Use of this in-band and out-of-band management allows IT admins the ability to access the device whether it is powered on or off, over the network. The DASH based tool can handle such tasks:
- Power state settings (on, off, restart, hibernate, or sleep)
- View hardware, firmware or BIOS versions
- Retrieve system health status
- USB device and image files redirection
- Boot device selection
- View event logs
- Apply updates and security patches
- Text console redirection
- Software KVM
