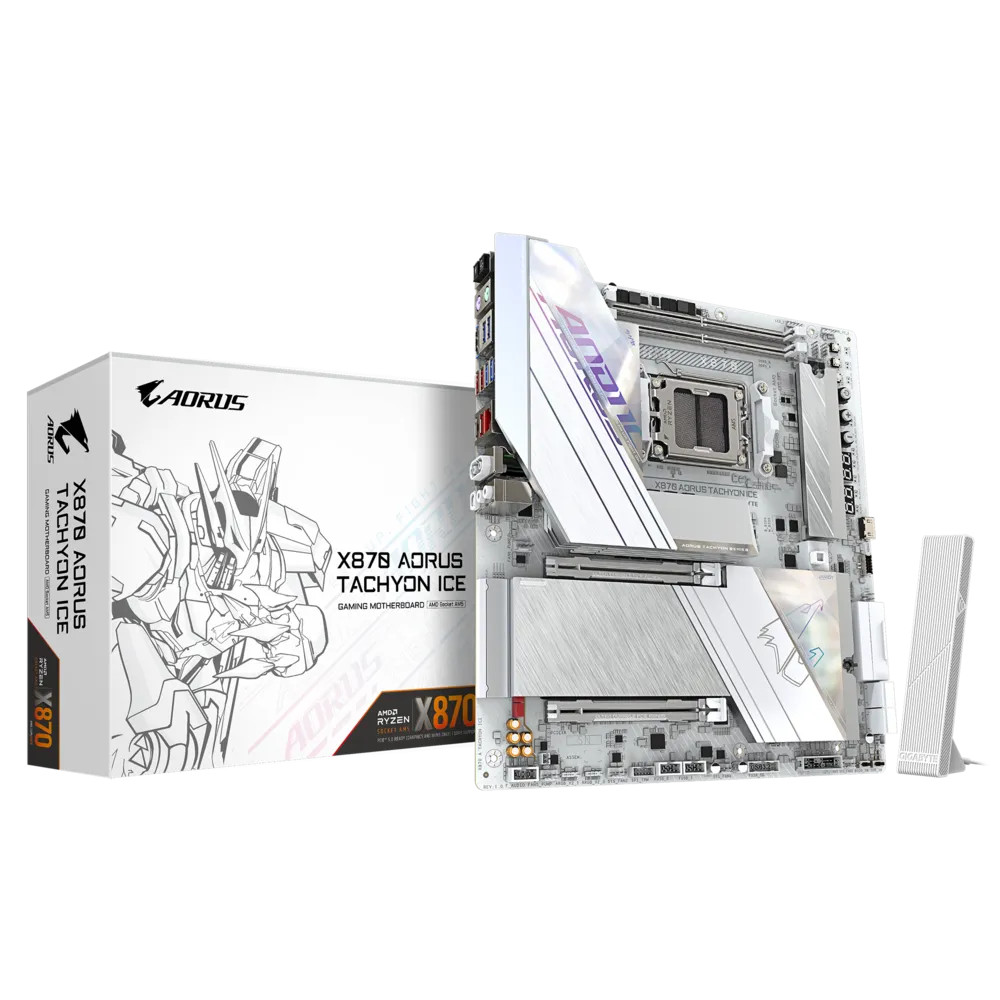

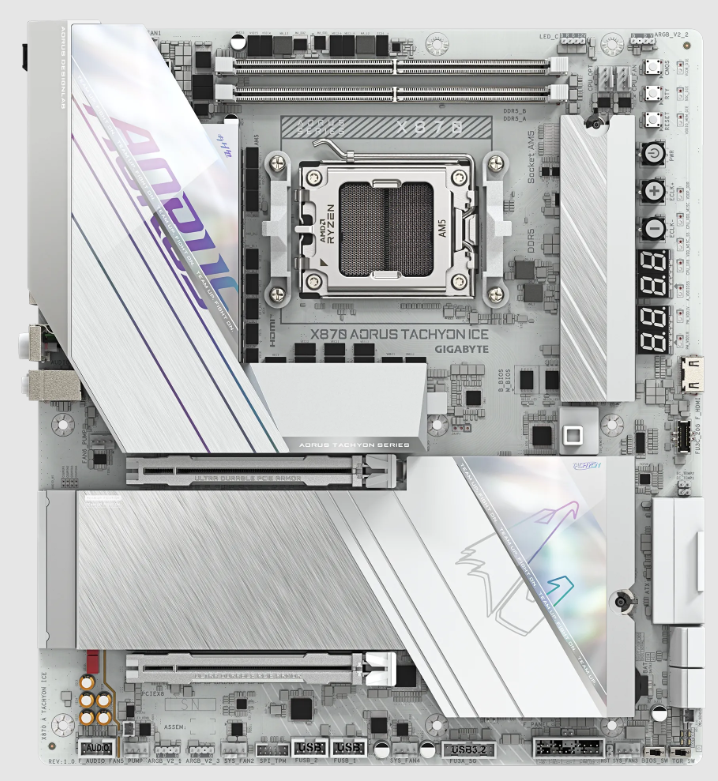

Gigabyte X870 AORUS TACHYON ICE E-ATX Motherboard – AMD X870, AM5 Socket, DDR5 9600MT/s, PCIe 5.0, Triple M.2, USB4, 5GbE LAN, Wi-Fi 7, Extreme Overclocking- X870 A TACHYON ICE

The Gigabyte X870 AORUS TACHYON ICE E-ATX Motherboard is a premium, overclocker-focused platform engineered to maximize the performance of AMD Ryzen 9000, 8000, and 7000 Series processors, catering to enthusiasts and professionals pushing the boundaries of gaming, content creation, and high-performance computing. Featuring a sleek white aesthetic, it boasts an 18+2+2 digital VRM design with 110A Smart Power Stages and a 10-layer low-loss PCB with 2X copper, ensuring exceptional power stability and signal integrity for extreme overclocking. The motherboard supports DDR5 memory up to 9600 MT/s, enhanced by AI-driven technologies like D5 Bionic Corsa and X3D Turbo Mode, delivering up to 18% gaming performance boosts. Its advanced thermal solution, including VRM Thermal Armor Advanced and M.2 Thermal Guard Extension, achieves up to 7°C lower temperatures, maintaining efficiency under intense workloads. Connectivity is future-proof with USB4 Type-C, Wi-Fi 7, 5GbE LAN, and versatile display options. DIY-friendly features like EZ-Latch designs, WIFI EZ-Plug, and an intuitive UC BIOS simplify assembly, while an onboard overclocking kit with dedicated controls empowers precise performance tuning. Built with GIGABYTE’s Ultra Durable technology, including reinforced PCIe and M.2 slots, this motherboard ensures long-term reliability, making it the ultimate choice for high-performance, custom PC builds.

Features

• X3D Turbo Mode for Gaming Performance: Activates with one click to enhance gaming performance by up to 18% for Ryzen 9000, 8000, and 7000 processors, optimizing frame rates and reducing latency for seamless gameplay.
• DDR5 Overclocking up to 9600 MT/s: Supports up to 128GB of DDR5 memory across two DIMMs with AI-driven D5 Bionic Corsa and AMD EXPO support, delivering unmatched memory performance for extreme overclocking and multitasking.
• 18+2+2 Digital VRM Design: Features 18 VCORE phases (110A Smart Power Stages with 9+9 parallel power design), 2 SOC phases (80A), and 2 MISC phases, ensuring stable power delivery for multi-core CPUs, integrated GPUs, and PCIe lanes, optimized for extreme overclocking.
• Exclusive Overclocking Kit: Includes onboard buttons (CPU Clock Up/Down, Cold Reset, BIOS Switch, OC Trigger) and voltage measurement points for precise, real-time overclocking control, ideal for enthusiasts pushing performance limits.
• AORUS AI SNATCH (Coming Soon): AI-driven auto-overclocking software for effortless performance optimization, enhancing CPU and memory capabilities with minimal user input.
• HyperTune BIOS: AI-driven BIOS optimization technology for seamless performance tuning, offering intuitive controls for advanced overclocking and system adjustments.
• Advanced Thermal Management: VRM Thermal Armor Advanced, M.2 Thermal Guard Extension for three M.2 slots, and 5 W/mK thermal pads reduce temperatures by up to 7°C, paired with Smart Fan 6 for quiet, customizable cooling with multiple fan and pump headers.
• Ultra-Fast Connectivity: Includes one USB4 Type-C port with DisplayPort (3840x2160@240 Hz), Wi-Fi 7 with ultra-high gain antenna, 5GbE LAN, HDMI 2.1 (4096x2160@60 Hz), and a front HDMI 1.4 port (1920x1080@30 Hz) for high-speed networking and versatile display options.
• High-Speed Storage: Offers three M.2 slots (1x PCIe 5.0 x4 for Ryzen 9000/7000, 2x PCIe 4.0 x4/x2) and four SATA 6Gb/s connectors with RAID 0, 1, 5 (Ryzen 9000 only), and 10 support for flexible, high-performance storage configurations.
• High-Res Audio: Powered by Realtek ALC1220 CODEC with WIMA audiophile-grade capacitors, supporting 2/4/5.1/7.1-channel audio and S/PDIF Out for immersive sound quality in gaming and multimedia.
• WIFI EZ-Plug: Simplifies Wi-Fi antenna installation with a quick-connect adapter, enhancing the DIY experience for seamless setup.
• EZ-Latch Designs: Features M.2 EZ-Latch Click, M.2 EZ-Latch Plus, and PCIe EZ-Latch Plus for screwless installation of M.2 heatsinks and PCIe cards, streamlining assembly.
• Sensor Panel Link: Onboard video port enables hassle-free in-chassis panel setup, improving convenience for custom builds.
• User-Friendly UC BIOS: Offers Multi-Theme support with grayscale mode, AIO Fan Control, Q-Flash Auto Scan, and Gigabyte Active OC Tuner for intuitive performance tuning and customization.
• Gigabyte Control Center: Unified software platform for RGB Fusion and system management, with HWiNFO co-branded OSD and new Power Monitor for real-time CPU phase monitoring.
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X load-bearing capacity, zinc alloy EMI shielding, and an inner lining rubber strip for robust graphics card support and superior signal integrity.
• M.2 UD Slot PG5: Unibody stainless-steel shield design for M.2 slots, offering 1.3X greater X-axis and 1.5X greater Y-axis strength with SMD technology to minimize signal degradation.
• Memory UD Slot D5: Stainless-steel reinforced memory slots with 1.3X anti-bending strength and 5000+ insertion/removal cycles, optimized for signal integrity and overclocking.
• UD Power Connector: Solid-pin 24-pin ATX and dual 8-pin CPU power connectors enhance conductivity, thermal dissipation, and durability for reliable power delivery.
• Ultra Durable PCIe Armor: Metal reinforcement plate for PCIe x16 slot supports large graphics cards, ensuring stability and longevity.
• 10-Layer Low-Loss PCB: Features 2X copper for improved signal integrity, reduced impedance, and enhanced durability, ideal for high-frequency overclocking.
• E-ATX Form Factor: Spacious 30.5cm x 27.5cm design provides ample room for high-performance components and cooling solutions, perfect for premium builds.
