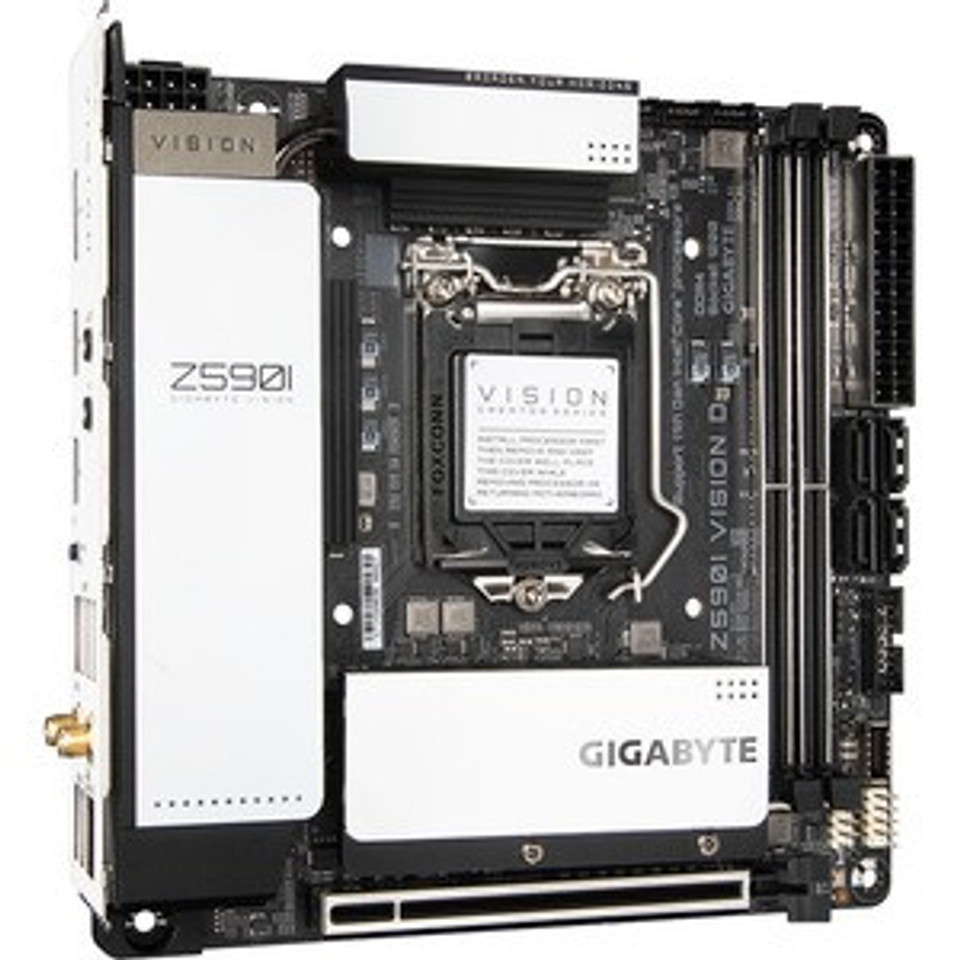

Gigabyte Z590I VISION D Desktop Motherboard - Intel Chipset - Socket LGA-1200 - Intel Optane Memory Ready - Mini ITX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - DisplayPort - 4 x SATA Interfaces
See The Passion of Creation
VISION Series
VISION Series motherboards are built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It's the perfect fit for DIY creators to build their own ideal machine.
Thunderbolt™ 4
More Speed. More Possibilities. Thunderbolt™ 4 delivers 40Gb/s high-bandwidth speeds, data transferring, video signal, power charging, and USB4™ specification compliance for more flexibility connecting any of your accessories. One USB Type-C® connector-based universal cable can replace those other cables to make connectivity simple and easy.
Intel® 2.5GbE Connectivity
High-Bandwidth and Low-Latency access.
The adoption of Intel® 2.5G LAN provides up to 2.5GbE network connectivity, with at least 2X faster transfer speeds compared to general 1GbE networking. It gives an immediate boost to overall network performance and improves the bandwidth required at large file transfers, video editing, and performance workloads.
Full PCIe 4.0 Design
For most prosumers and content creators, high bandwidth storage and high performance graphics card or accelerator cards are critical for their projects. This is especially true for 3D rendering and creating high resolution textures. To support most cutting edge devices, this motherboard support variety of PCIe 4.0 devices, including graphics card and M.2 SSD.
Dual PCIe M.2
Faster Speed. More Space.
To feature with dual M.2 connectors for extending storage available. M.2 PCIe SSD gives you 7X faster data transferring experience compared to 2.5" SATA solid-state drives. Enable the creativity to flow from thought to draft faster and get responsive performance without a wait.
Cooling Technology
Creativity and innovation continue uninterrupted.
An effective cooling solution is essential for a heavy design workload to get away with slow down, crashes, and unexpected shutdown. A heat pipe connects an extended heatsink and a designed rectangle heatsink that can fully cover the VRM area. Multi-Layered PCH/M.2 heatsink and thermal baseplate reach a perfect balance between style and performance.
DTS:X® Ultra
Immersive sounds to go.
DTS:X Ultra is capable of delivering consumers a truly premium entertainment experience by completely surrounding the listener and expanding the sound stage to create a more immersive environment. Supports channel-based, scene based, and object-based audio. Also, it takes movies, music, and interactive gaming experiences to an exciting new level.
Intel® Z590 Mini-ITX Creators Motherboard with enhanced power design, Effective thermal solution, Thunderbolt™ 4, Intel® Wi-Fi 6 802.11ax and Intel® 2.5GbE LAN, PCIe 4.0 x16 slot, Dual NVMe PCIe X4 M.2 Connectors, Front USB Type-C® Header
- Powerful performance support 11th and 10th Gen Intel® Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4 memory, 2 DIMMs
- The limitless connectivity by Intel® Thunderbolt™ 4
- High-bandwidth and low-latency network support by Intel® 2.5GbE LAN
- Intel® Wi-Fi 6 2x2 802.11ax with all new antenna support for better signal
- Dual Ultra-Fast NVMe PCIe x4 M.2 connectors with unique thermal guards
- Comprehensive cooling solution design for the better thermal dissipation
- Smart Fan 6 features hybrid fan headers and numerous temperature sensors for fan mode configuration
| Audio Channels | 7.1 |
| Maximum Memory | 128 GB |
| 128 GB | |
| Memory Technology | DDR4 SDRAM |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| DIMM | |
| Memory Speed Supported | 3600 MHz |
| 3666 MHz | |
| 3733 MHz | |
| 3800 MHz | |
| 2133 MHz | |
| 2400 MHz | |
| 2666 MHz | |
| 2800 MHz | |
| 2933 MHz | |
| 3000 MHz | |
| 3866 MHz | |
| 4000 MHz | |
| 4133 MHz | |
| 4266 MHz | |
| 4300 MHz | |
| 4400 MHz | |
| 4500 MHz | |
| 4600 MHz | |
| 3200 MHz | |
| 3300 MHz | |
| 3333 MHz | |
| 3400 MHz | |
| 3466 MHz | |
| 3600 MHz | |
| 3666 MHz | |
| 3733 MHz | |
| 3800 MHz | |
| 3866 MHz | |
| 4000 MHz | |
| 4133 MHz | |
| 4266 MHz | |
| 4300 MHz | |
| 4400 MHz | |
| 4500 MHz | |
| 4600 MHz | |
| 2133 MHz | |
| 2400 MHz | |
| 2666 MHz | |
| 2800 MHz | |
| 2933 MHz | |
| 3000 MHz | |
| 3200 MHz | |
| 3300 MHz | |
| 3333 MHz | |
| 3400 MHz | |
| 3466 MHz | |
| Intel Optane Memory Ready | Yes |
| Onboard Video | CPU Dependent Video |
| Limited Warranty | 3 Year |
| Number of Total Expansion Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Package Contents |
|
| Country of Origin | China |
| Brand Compatibility | Intel |
| Form Factor | Mini ITX |
| Width | 6.7" |
| Depth | 6.7" |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| 2.5Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 4 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| Number of M.2 Interfaces | 2 |
| Number of Onboard USB 3.2 Ports | 3 |
| RAID Levels | 5 |
| 10 | |
| 1 | |
| 0 | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of Thunderbolt 4 Ports | 2 |
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | Z590I VISION D |
| Manufacturer Website Address | http://www.gigabyte.us |
| Manufacturer | Gigabyte Technology, Inc |
| Product Model | Z590I VISION D |
| Product Name | Z590I VISION D (rev. 1.0) Desktop Motherboard |
| Product Series | VISION |
| Brand Name | Gigabyte |
| Processor Supported | Core i7 |
| Core i5 | |
| Pentium Gold | |
| Core i9 | |
| Core i3 | |
| Celeron | |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1200 |
| Chipset Manufacturer | Intel |
