HighPoint Rocket 1604A PCIe Gen5 x16 to 4x M.2 NVMe Switch AIC - R1604A
HighPoint’s Rocket 1604A 4-Channel NVMe Switch AIC is an ultra-compact high-speed 4-port M.2 NVMe storage connectivity solution capable of delivering up to 56GB/s of transfer bandwidth for industry-standard x86 workstation and server platforms via a single PCIe x16 slot. The AIC can directly host up to four M.2 SSDs, removing the need for internal drive bays and cabling accessories. The half-length, single-width form factor is ideal for space-constrained computing environments such as industrial workstations, edge platforms and rackmount servers.
Key Features:
-
4 Independent M.2 Ports
-
Wide-range of M.2 Form factor Support (2242, 2260, 2280)
-
Leverages Broadcom’s 48-lane PCIe Gen5 PEX89048 PCIe Switch IC:
• Ensures the fastest, densest downstream connectivity possible
• Optimizes signal integrity & stability, and minimizes latency
-
Designed to maximize performance & connectivity density per PCIe 5.0 x16 slot: Up to 56GB/s and 12 Million IOPs using just four NVMe SSDs!
-
Customizable Firmware Solutions for Gen5 AICs
-
Natively supported by Mainstream Operating systems; delivers driverless deployment experience
-
Robust, flexible & scalable; Tailor speed & capacity for the deployment & infrastructure requirements of each Application/Workflow
-
Supports x86 Intel/AMD & ARM Platforms
-
Firmware-based Diagnotics Capability
Specifications
|
Product Model
|
Rocket 1604A
|
|
Hardware Features
|
|
|
Bus Interface
|
PCIe 5.0 x16
|
|
Number of Channel / Port
|
4 x NVMe Ports (Dedicated PCIe 5.0 x4 per port)
|
|
Port Type
|
M.2
|
|
Data Transfer Rate
|
64GB/s
|
|
Number of devices
|
4
|
|
SSD Form Factor
|
M.2 (2242, 2260, 2280)
|
|
Synthetic Hierarchy
|
Yes
|
|
Diagnostic LED Support
|
Disk Active, Disk Fail, Disk Present
|
|
External Power Connector
|
N/A
|
|
Toolless SSD Installation
|
Yes
|
|
FRU Support
|
Yes Store VPD Data
|
|
Host CPU Architect Support
|
|
|
CPU Architect Support
|
X86 / ARM
|
|
Mechanical Features
|
|
|
Form Factor
|
Full-Height, Half-Length
|
|
Card Dimensions
|
167mm x 110mm
|
|
Width
|
Single Width
|
|
Card Weight
|
0.80 lbs.
|
|
PCIe Bracket
|

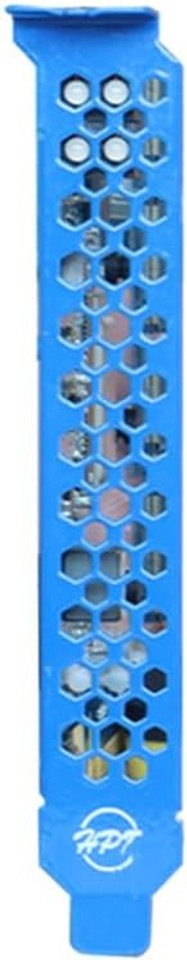

Full-Height ventilated bracket
|
|
Heatsink
|

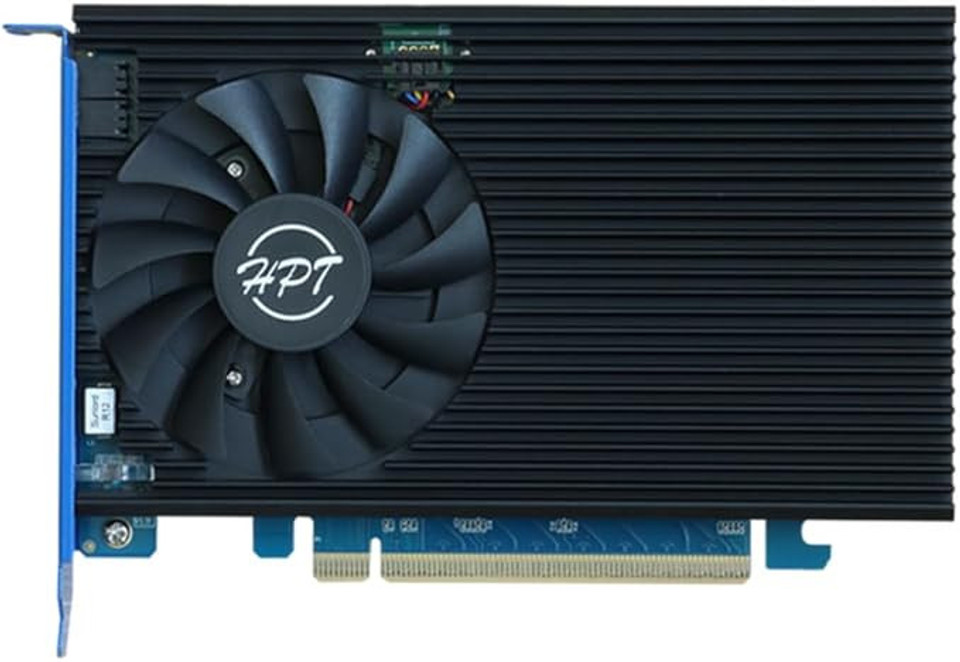

1. One Big heatsink to cover all the board area 2. One 8010 Fan inside the Heatsink 3. the Adapter with Heatsink installed will not violate the PCIe Spec
|
|
Cooling System
|
Heatsink with a 8010 Fan inside
|
|
Supported Systems
|
|
|
OS
|
All the Operating Systems with Native NVMe Driver
|
|
Software Secure Boot
|
Yes
|
|
NVMe RAID Management
|
|
|
Management Suites
|
MPT Utility
|
|
Operating Environment
|
|
|
Working Temp
|
+5°C ~ + 55°C
|
|
Storage Temp
|
-20°C ~ +80°C
|
|
Operating Voltage
|
PCIe: 12V, 3.3V
|
|
MTBF
|
920,585 Hours
|
|
Kit Contents
|
|
|
Kit Contents
|
Rocket 1604A Switch AIC
|
|
|
QIG
|
|
|
Thermal pad: 70*90*0.75mm, K=8, Gray；V100；x1 Thermal pad: 70*90*1.5mm, K=3, Blue；V100；x1 Thermal pad: 70*90*1mm, K=8, Gray；V100; x1
|
|
|
4 x additional M.2 Rubber
|
