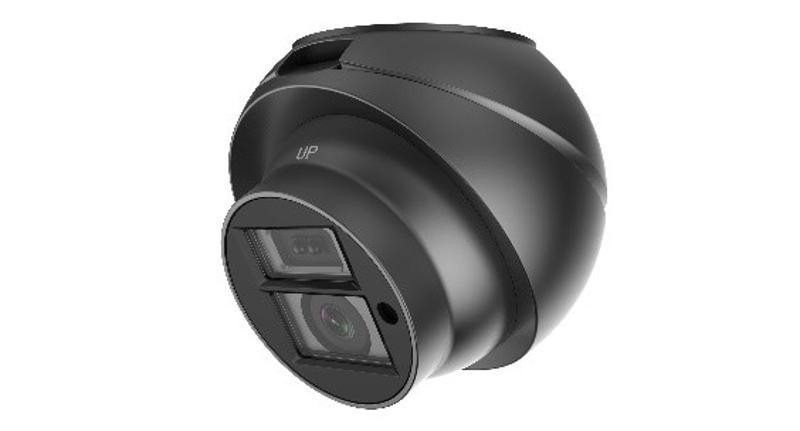

Hikvision 1080P 1/2.9”CMOS conch analog camera - AE-VC222T-S(2.1mm)

• Adopts progressive scan CMOS to prevent motion image aliasing
• Supports HD coaxial output with the resolution 1080P
• Min. illumination: 0.1 Lux @(F1.2, AGC ON)
• Supports auto day & night switch
• Adopts auto electronic shutter to adapt to different environment
• Supports auto gain control and self-adaption to light
• Adopts built-in mic and supports audio input
• Shock-proof design and aviation output plug

Specification

Camera

• Shutter Speed: 1/25 s to 1/30,000 s
• P/N: P (Default format is PAL)
• Day & Night: Color

Lens

• Lens Mount: M12

Video

• Frame Rate: 1080P@25fps


• SNR: 42 dB

Interface

• Video Output: TVI
• Built-in Microphone: Yes
• Built-in Speaker: No
• Audio: Yes
• Interface Style;

1 Vpp Composite Output (aviation plug)

1: Video, 2: Audio, 3: power, 4: ground

Supplement Light Unit

• Power Supply: 9 to 16 V DC
• Power Consumption: Max. 2.2 W

General

• Camera Material: Plastic
• Camera Dimension: 74 mm × 64.5 mm × 71.1 mm (2.91" × 2.54" × 2.80")
• Startup and Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), Humidity 90% or less (non-condensing)
