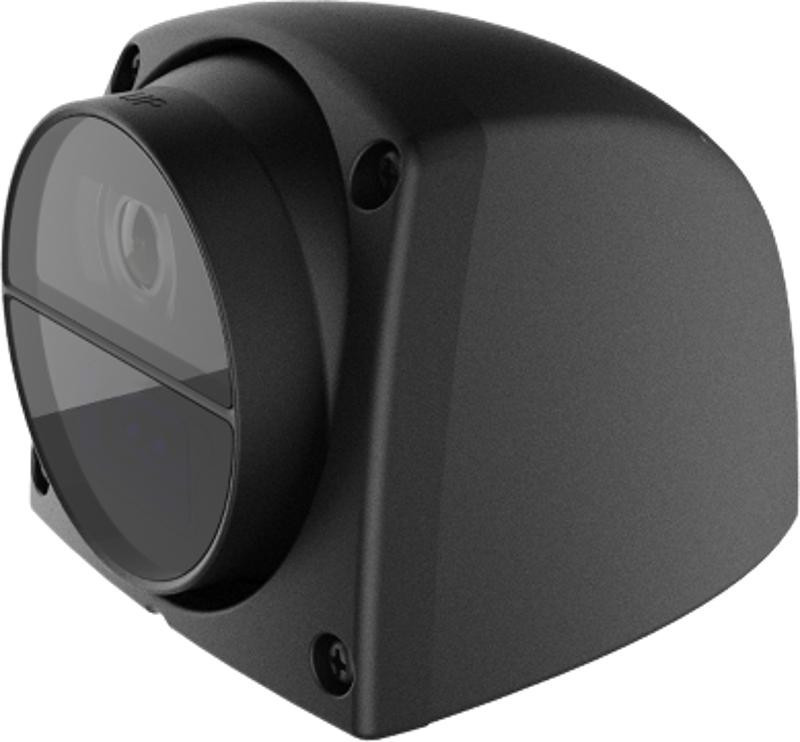

Hikvision 1080P 1/2.9”CMOS infrared array conch analog camera - AE-VC1224T-IT(2.1mm)
- Adopts progressive scan CMOS to prevent motion image aliasing
- Supports HD image coaxial output with1080P resolution
- Min. illumination: 0.1 Lux @(F1.2, AGC ON), 0 Lux with IR
- Supports auto electronic shutter to adapt to different monitoring environments
- Supports auto electronic gain and self-adaptation to light
- IP68
- Adopts shock-proof design and aviation output plug
- (Optional) Supports left-right mirroring
DatasheetSpecification
Camera
- Shutter Speed: 1/50 s to 1/50,000 s
- Day & Night: Electronic
Lens
- Lens Mount: M12
Video
- Frame Rate: 720p@25 fps
- SNR: 42 dB
Interface
- Video Output: 1 Vpp Composite Output (aviation plug)
- Interface Style: 1: video, 2: empty, 3: power, 4: ground
Supplement Light Unit
- Power Supply: 9 to 16 V DC
- Power Consumption: Max. 2.5 W
General
- Protection: IP68,IP69K,IK10
- Camera Dimension: 74.7 mm × 65.8 mm × 57.3 mm (2.9" × 2.6" × 2.3")
- Startup and Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), 90%
