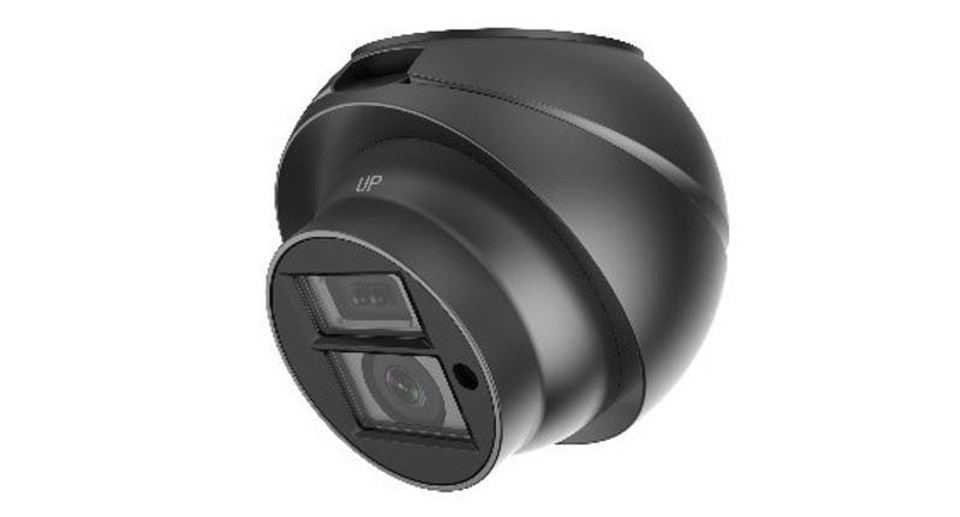

Hikvision 1080P 1/2.9”CMOS infrared array conch analog camera - AE-VC222T-ITS(2.1mm)

Product code: UK-HIK-AE-VC222T-ITS(2.1mm)
Condition: New
Availability: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.uk | Call Us: +44 330 043 2524

Request A Quote

SSL Secure Payment

Hikvision 1080P 1/2.9”CMOS infrared array conch analog camera - AE-VC222T-ITS(2.1mm)

Hikvision 1080P 1/2.9”CMOS infrared array conch analog camera - AE-VC222T-ITS(2.1mm)

Hikvision 1080P 1/2.9”CMOS infrared array conch analog camera - AE-VC222T-ITS(2.1mm)

  • Adopts progressive scan CMOS to prevent motion image aliasing
  • Supports HD coaxial output with the resolution 1080P
  • Min. illumination: 0.1 Lux @(F1.2, AGC ON), 0 Lux with IR
  • Supports auto day & night switch
  • Adopts auto electronic shutter to adapt to different environment
  • Support built-in mic and audio input
  • Shock-proof design and aviation output plug

Datasheet

Specification

Camera

  • Image Sensor: Progressive Scan CMOS
  • Shutter Speed: 1/25 s to 1/50,000 s
  • Resolution: 1920×1080
  • Day & Night: Electronic

Lens

  • FOV;

2.1mm, horizontal: 117°, vertical: 66°, diagonal: 143°

2.8mm, horizontal: 96°, vertical: 50°, diagonal: 115°

3.6mm, horizontal: 75°, vertical: 44°, diagonal: 90°

  • Lens Mount: M12

Illuminator

  • IR Range: 10 m

Video

  • Frame Rate: 1080P@25fps

Audio

  • Built-in Mic: Yes


  • SNR: 42 dB

Interface

  • Video Output: 1, Vp-p Composite Output (aviation plug)
  • Audio;

Audio output: 1, aviation plug (linear resistance: 1 kΩ)

Audio Input: Build-in MIC

  • Interface Type;

Aviation Pin Order

1: Video, 2: Audio, 3: Power, 4: Ground

General

  • Product Dimension: 74 mm × 64.5 mm × 71.1 mm (2.9" × 2.5" × 2.8")
  • Power Supply: 9 to 16 V DC
  • Power Consumption: Max. 2.2 W
  • Startup and Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), humidity 90% or less
  • Weight: Approx. 200 g (0.44 lb.)
