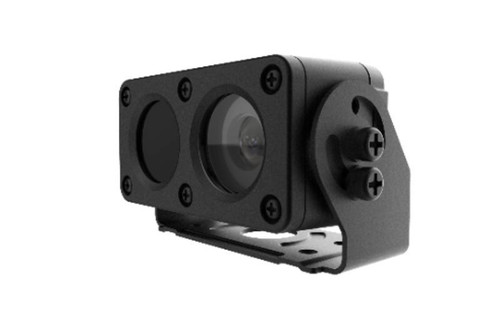

Hikvision 1080P 1/2.9”CMOS infrared array conch analog camera - AE-VC224T-IT(2.8mm)

• Adopts progressive scan CMOS to prevent motion image aliasing
• Supports HD image coaxial output with1080P resolution
• Min. illumination: 0.1 Lux @(F1.2, AGC ON), 0 Lux with IR
• Supports auto electronic shutter to adapt to different monitoring environments
• Supports auto electronic gain and self-adaptation to light
• IP68
• Adopts shock-proof design and aviation output plug
• (Optional) Supports left-right mirroring

Datasheet

Specification

Camera

• Shutter Speed: 1/50 s to 1/50,000 s
• Day & Night: Electronic

Lens

• Lens Mount: M12

Video

• Frame Rate: 720p@25 fps


• SNR: 42 dB

Interface

• Video Output: 1 Vpp Composite Output (aviation plug)
• Interface Style: 1: video, 2: empty, 3: power, 4: ground

Supplement Light Unit

• Power Supply: 9 to 16 V DC
• Power Consumption: Max. 2.5 W

General

• Protection: IP68,IP69K,IK10
• Camera Dimension: 74.7 mm × 65.8 mm × 57.3 mm (2.9" × 2.6" × 2.3")
• Startup and Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), 90%
