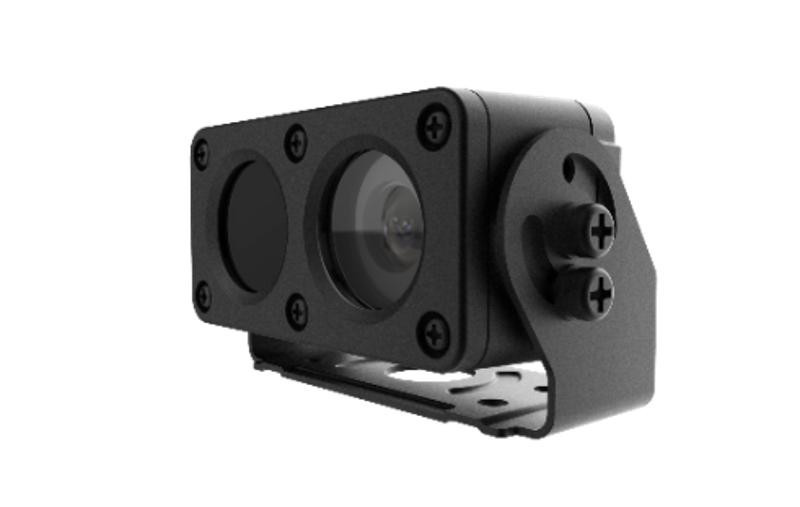

Hikvision 1080P 1/2.9”CMOS infrared array square analog camera - AE-VC253T-IT(2.8mm)

• Progressive scan CMOS
• Up to 1080P resolution
• Low illumination, 0.1 lux @ (F1.2, AGC ON), 0 lux with IR
• Supports auto electronic day & night switch
• Supports auto white balance
• Supports left & right mirror mode
• IP 68 protection level

Datasheet

Specification

Camera

• Shutter Speed: 1/25 s to 1/50,000 s
• P/N: P (Default format is PAL and support switching to NTSC)
• Wide Dynamic Range: 85dB
• Day & Night: Electronic

Lens

• Lens Mount: M12

Video

• Frame Rate: 720p@25 fps


• SNR: 42 dB

Interface

• Video Output: TVI
• Built-in Microphone: No
• Built-in Speaker: No
• Audio: No
• Interface Style;

1 Vpp Composite Output (aviation plug)

1: video, 2: empty, 3: power, 4: ground

Supplement Light Unit

• Power Supply: 9 to 16 V DC
• Power Consumption: Max. 2.5 W

General

• Camera Dimension: 83.2 mm × 46 mm × 41.6 mm (3.28" × 1.81" × 1.64")
• Startup and Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), 90%
