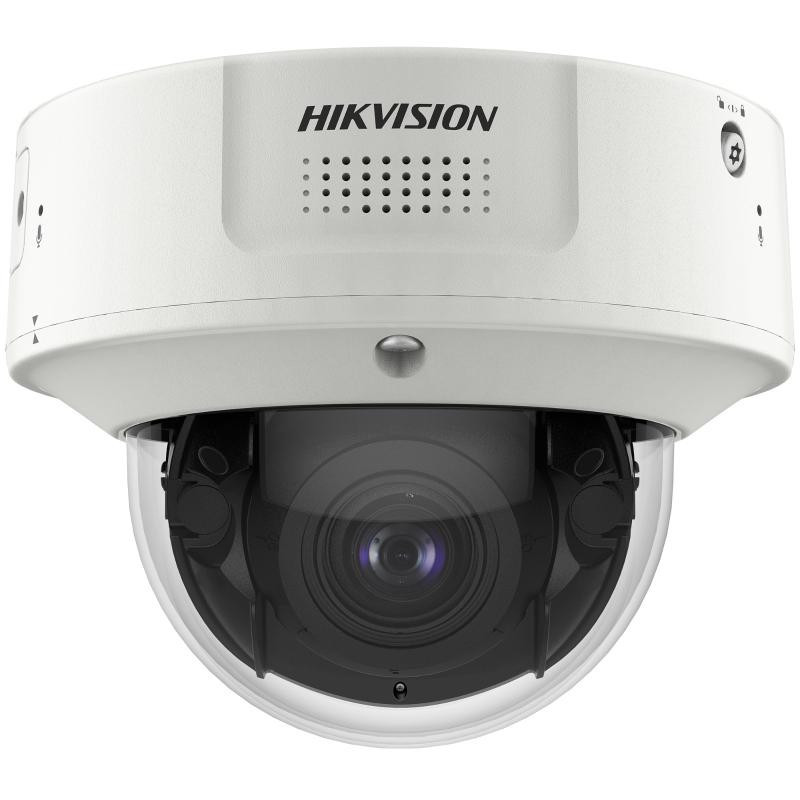

Hikvision 12MP DeepinView HEOP Moto Varifocal Dome Camera

• Hikvsion Embedded Open Platform 2.0 for 3rd party integration
• Supports 2 Tops computing power, 150 MB system memory, 800 MB smart RAM, and 2GB eMMC storage for sharing resources
• High quality imaging with 12 MP resolution
• Excellent low-light performance via DarkFighter technology
• Clear imaging against strong back light due to DWDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67) and vandal proof (IK10)

Datasheet

Specifications

Camera

• Image Sensor: 1/1.7" Progressive Scan CMOS
• Max. Resolution: 4000 × 3000
• Min. Illumination: Color: 0.009 Lux @ (F1.2, AGC ON),B/W: 0.0009 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

• Focal Length & FOV;

2.8 to 12 mm, horizontal FOV 100.6° to 37.8°, vertical FOV 72.2° to 28.3°, diagonal FOV 137.3° to 47.3°

8 to 32 mm, horizontal FOV 38.1° to 13.7°, vertical FOV 28.2° to 10.4°, diagonal FOV 48.7° to 17.1°

• Focus: Auto,Semi-auto,Manual
• Iris Type: P-iris
• Aperture: 2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6

DORI

• DORI;

2.8 to 12 mm:

D: 233.5 m, O: 92.7 m, R: 46.7 m, I: 23.4 m

8 to 32 mm:

D: 627 m, O: 248.8 m, R: 125.4 m, I: 62.7 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: 2.8 to 12 mm: Monitoring: 30 m; 8 to 32 mm: Monitoring: 50 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

HEOP

• Open Resources;

Memory: 150 MB,

Smart RAM: 800 MB,

eMMC: 2 GB

• Computing Power: 2 TOPS
• Open Capability: HEOP 2.0 OpendevSDK
• Deep Learning Structure: Caffe,PyTorch,TensorFlow
• Programming Language: C,C++

General

• Power;

12 VDC ± 20%, 1.02 A, max. 12.4 W,three-core terminal block,reverse polarity protection,

24 VAC ± 20%, 0.82 A, max. 11.8 W,

PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.29 A to 0.22 A, max. 12.5 W

• Material: Base: metal, cover: metal
• Dimension: Ø144.3 mm × 114.1 mm (Ø5.7" × 4.5")
• Package Dimension: 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
• Weight: Approx. 945 g (2.0 lb.)
• With Package Weight: Approx. 1425 g (3.0 lb.)
• Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions;

With -H: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing),

Without -H: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat,one-key reset,mirror,password protection,pixel counter,anti-banding
• Cable Length: 0.25 m (0.8 ft.)
