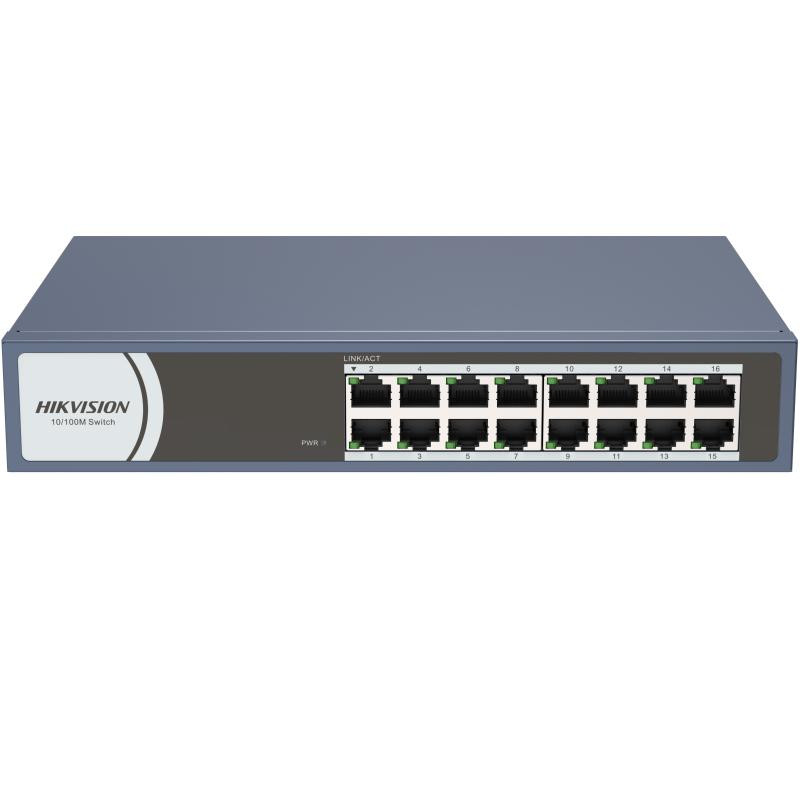

Hikvision 16-Port Fast Ethernet Switch - DS-3E0116R-O
- 16 × 10/100 Mbps RJ45 Port
- Easy Plug-and-Play Installation
- Desk or rack installation and wall-mounting
- Rugged Metal Case
DatasheetSpecifications
General
- Shell: Metal material, fan-free design
- Net Weight: 1.1 kg (2.42 lb)
- Dimensions (W × H × D): 257..0 mm × 44.5 mm × 175.8 mm (10.118'' × 1.751'' × 6.921'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 220 VAC, 50/60 Hz
- Max. Power Consumption: 6.6 W
- Power Consumption in Idle: <6.6 W
- Surge Protection: 6 KV
Network Parameters
- Ports: 16 × 10/100 Mbps RJ45 port
- MAC Address Table: 8 K
- Switching Capacity: 3.2 Gbps
- Packet Forwarding Rate: 2.38 Mpps
- Internal Cache: 2 Mbits
