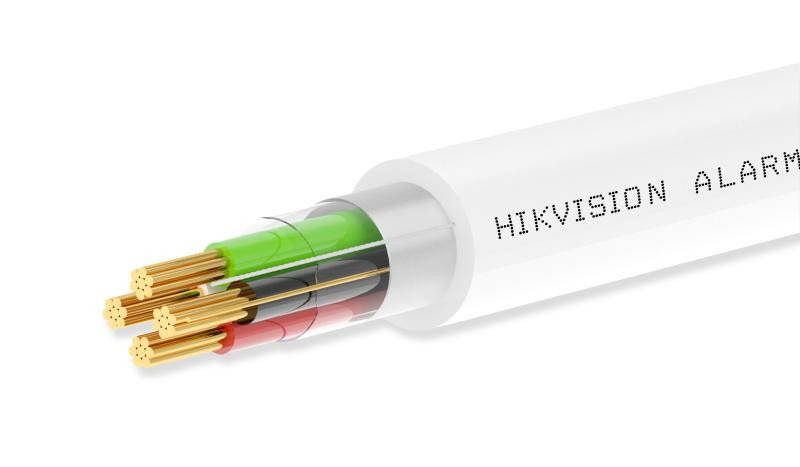

Hikvision 2+2-Core Shielded LSZH Alarm Cable - DS-1AC2A2BPL1
- Suitable for high-rise office buildings, hospitals, entertainment venues hotels, guest houses and other buildings.
- Used for wiring of fire alarms, smoke detectors, voice communications, anti-theft alarms, and fire circuit protection.
- Bare stranded copper conductor with less resistance, and better electrical properties and transmission performance.
- Jacket with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Smooth appearance, reel in box, easy to pull.
- Flame retardant, compliant with EN50575.
- Continuous operation at -20 to 70℃.
- Compliant with RoHS 2.0.
Specification
Category
- Product Category: Alarm Cable 2×0.50mm2+4×0.22mm2
Fire resistance
- Fire resistance: CPR Eca
Conductor/Conductor 1
- Conductor Material: Bare Stranded Copper (99.95%)
- Conductor spec: 7/(0.185± 0.007) mm 25 AWG
Conductor/Conductor 2
- Conductor Material: Bare Stranded Copper (99.95%)
- Conductor spec: 16/(0.185± 0.007) mm 21AWG
Packaging and Weights
- Packaging Type: Reel in box
- Package dimension: 328mm×286mm×330mm
- Packaging quantity: 1
- Length: (305 ± 1.5) m
- 10±2.00kg
