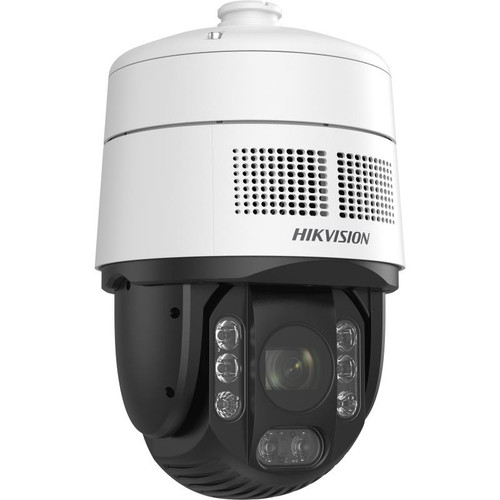

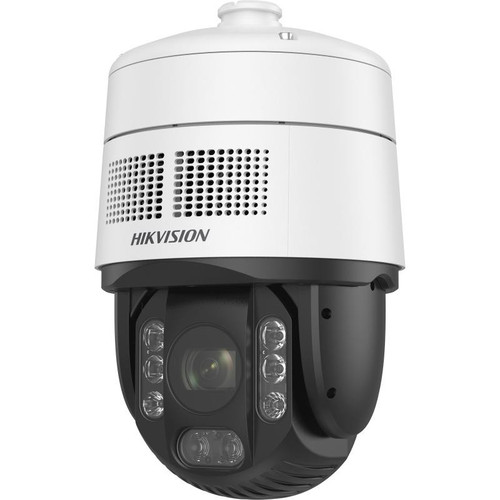

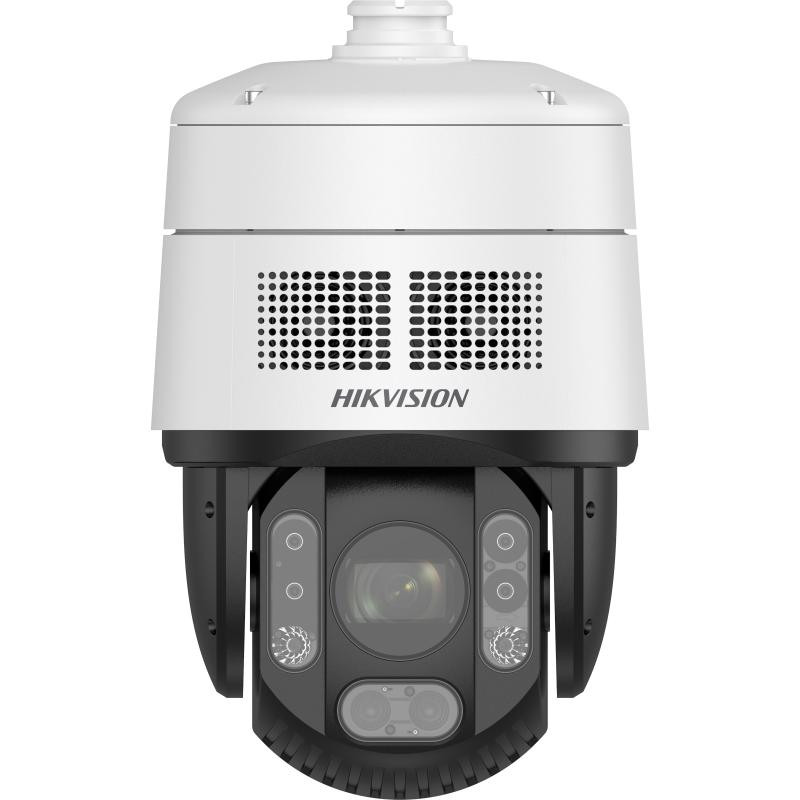

Hikvision 2 MP 25X Powered by DarkFighter IR Acusense Warning Enhanced Network Speed Dome - DS-2DE7A225IWG-EB/SL

• 1/2.8" progressive scan CMOS
• High quality imaging with 2 MP resolution, up to 60 fps
• Excellent low-light performance with powered-by-DarkFighter technology
• 25× optical zoom and 16× digital zoom provide close up views over expansive areas
• Focuses on human and vehicle targets classification based on deep learning
• Powerful sound and strobe light deterrent, effective up to 100 meters
• Expansive night view with up to 200 m IR distance

Datasheet

Specifications

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/1 s to 1/30,000 s
• Day & Night: IR cut filter
• Zoom: 25x optical, 16x digital
• Slow Shutter: Yes

Lens

• Focal Length: 4.8 mm to 120 mm
• FOV;

  Horizontal field of view: 57.6° to 2.5° (wide-tele),

  Vertical field of view: 34.4° to 1.4° (wide-tele),

  Diagonal field of view: 64.5° to 2.9° (wide-tele)

• Focus: Auto, semi-auto, manual
• Aperture: Max. F1.6
• Zoom Speed: Approx. 3.6 s

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: IR Distance: up to 200 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Strobe Light Flashing: Up to 100 m white light flashing

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
• Tilt Speed: Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
• Proportional Pan: Yes
• Presets: 300
• Preset Freezing: Yes
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Park Action: Preset, patrol scan, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

General

• Power;

  36 VDC ± 25%, max. 42 W,

  Hi-PoE

• Dimension: Ø 220 mm × 363.3 mm (Ø 8.66" × 13.91")
• Weight: Approx. 5 kg (11.03 lb.)
• Material: ADC12
• Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• Demist: Yes
