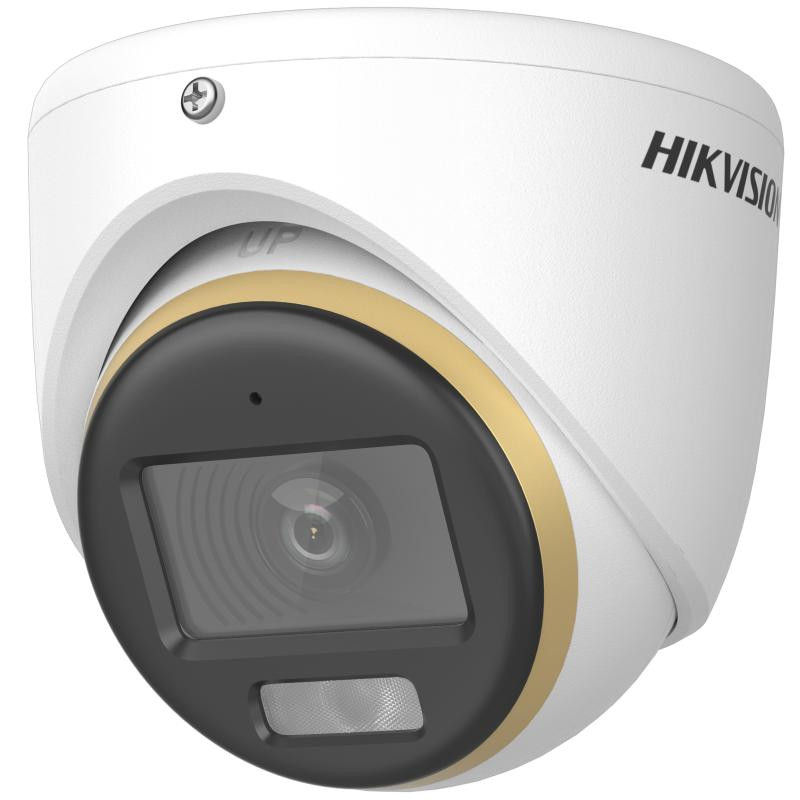

Hikvision 2 MP ColorVu Dual-light Fixed Turret Camera

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 24/7 colour imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m white light distance for bright night imaging
• Up to 20 m IR distance for bright night imaging
• High quality audio with audio over coaxial cable, built-in mic
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Specification

Camera

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night: ICR
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
• Signal System: PAL/NTSC
• Slow Shutter: Max. 16 times

Lens

• Lens Type: 2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV:

2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 123°

• mm, horizontal FOV: 85°, vertical FOV: 46°, diagonal FOV: 98°

• Lens Mount: M12

Microphone

• Pickup Distance: In a radius of up to 5 m
• Amount: 1

Illuminator

• Supplement Light Type: Smart, IR, White Light
• Supplement Light Range: IR: Up to 20 m, White Light: Up to 20 m

General

• Material: Metal
• Dimension: Ø85.11 mm × 77.62 mm (Ø3.35" × 3.05")
• 335 g (0.74 lb.)
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)
• Communication: HIKVISION-C
• Language: English
• Power:

12 VDC ± 25%, max. 5.4 W

*You are recommended to use one power adapter to supply the power for one camera.
