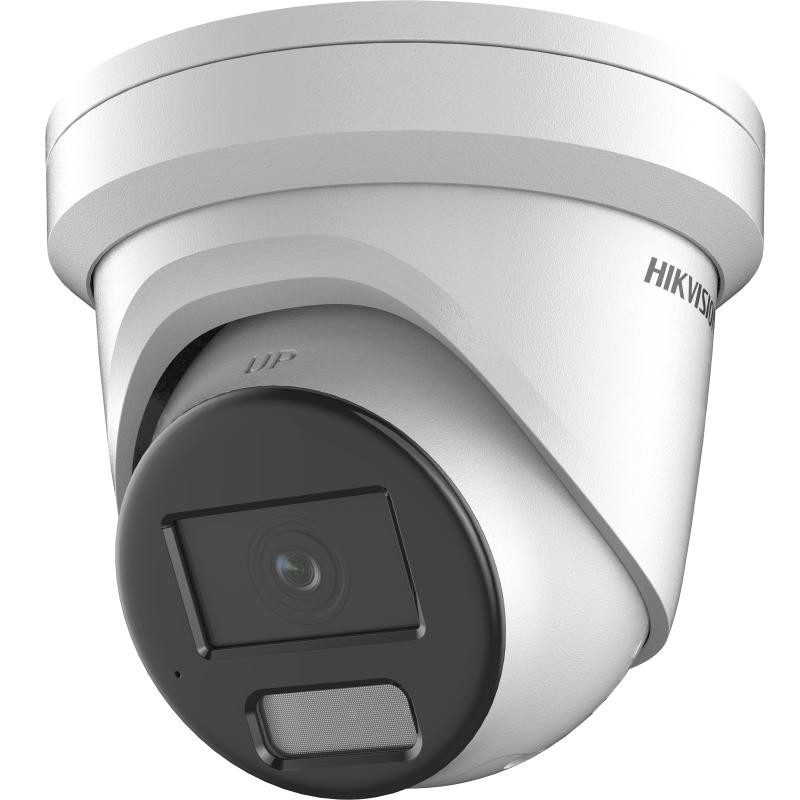

Hikvision 2 MP ColorVu Fixed Turret Network Camera

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB WDR technology
• Focusing on human and vehicle classification based on deep learning
• Built-in microphone for real-time audio security(-U)
• 24/7 colourful imaging
• Water and dust resistant (IP67)

Specification

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

2.8 mm, horizontal FOV 107°, vertical FOV 56°, diagonal FOV 127°

4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 99°

• Lens Mount: M12
• Iris Type: FIxed
• Aperture: F1.0
• Depth of Field:

• mm, 1.7 m to ∞

4 mm, 2.3 m to ∞

DORI

• DORI:

• mm, D: 46 m, O: 18 m, R: 9 m, I: 4 m

4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

• Supplement Light Type: White light
• Supplement Light Range: 30 m
• Smart Supplement Light: Yes

General

• Power:

12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.12 A, max. 7 W

• Dimension: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
• Package Dimension: 170 mm × 170 mm × 150 mm (7" × 7" × 5.9")
• Weight: 770 g (1.7 lb.)
• With Package Weight: 980 g (2.2 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language:

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
