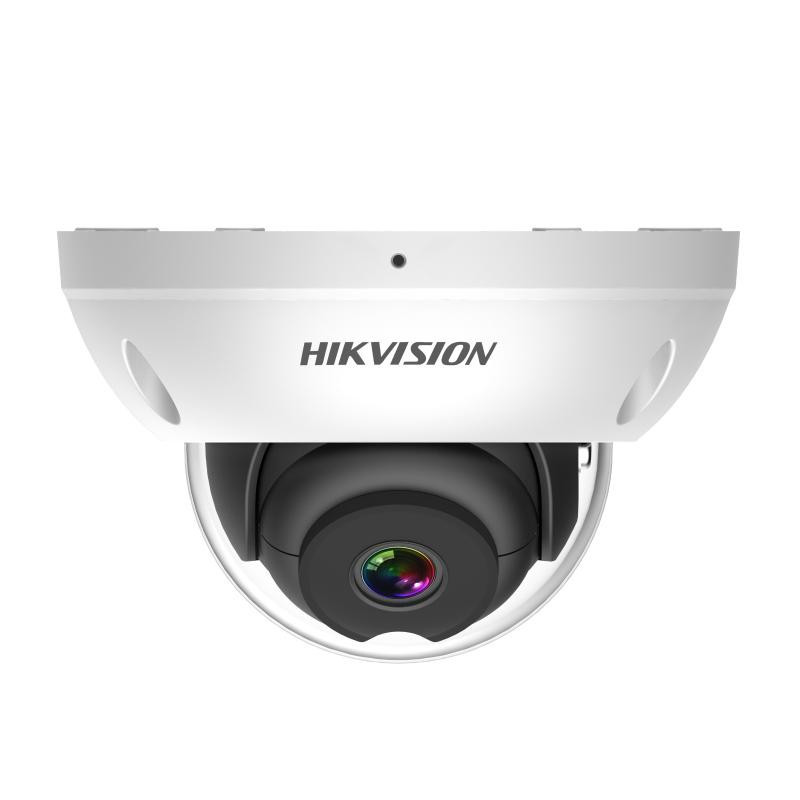

Hikvision 2 MP Mobile Mini Dome - AE-VC215I-ISF(M12)(2mm)

• High quality imaging with 2 MP resolution
• Water and dust resistant (IP66) and vandal proof (IK08)

Datasheet

Specification

Camera

• Image Sensor: 1/2.8''CMOS Progressive Scan
• Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
• Resolution: 1920 × 1080
• Shutter Speed: 1/3 s to 1/100, 000 s
• Day & Night: Electronic Day to Night
• Angle Adjustment;

Pan: -50°~+50°

Tilt: 0~60°

Lens

• Focal Length: 2mm/2.8mm/4mm
• Focal Length & FOV;

2mm: Horizontal FOV:132°, Vertical FOV:77°, Diagonal FOV:152°

2.8mm: Horizontal FOV:105°, Vertical FOV:56°, Diagonal FOV:126°

4mm: Horizontal FOV:87°, Vertical FOV:44°, Diagonal FOV:104°

• Lens Mount: M12
• Focus: Manual
• Max. Aperture;

2mm: F2.25

2.8/4mm: F1.6

Interface

• Ethernet Interface: 4-core M12 aviation plug
• Audio: 1 built-in mic, mono sound
• Reset Key: Support
• Interface Type: Interpolate
• TF Card Storage: Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering)

• Ethernet Interface;

M12: M12-D code Aviation plug

RJ45: 10 M/100 M self-adaptive Ethernet port

• Audio: Built-in MIC
• Reset Key: Built-in Reset
• TF Card Storage: Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering)

General

• Product Dimension: Φ97 mm × 62 mm (Φ3.8" × 2.4")
• Power;

RJ45: 0.139-0.088A, Max. 5W

M12: 0.139-0.088A, Max. 5W

• Protection: IP66, IK08
• Power Supply;

RJ45: PoE (802.3af, 36~57V)

M12: PoE (802.3af, 36~57V)

• Camera Material;

Front Cover: plastic

Base: metal

• Screw Material: SUS, Carbon steel coating
• Package Dimension: 111 mm × 111 mm × 95 mm (4.4″ × 4.4″ × 3.7″)
• Product Weight;

RJ45: Approx. 260 g (0.57 lb.)

M12: Approx. 255 g (0.56 lb.)

• Startup and Operating Conditions: -30°C to +60°C (-22°F to +140°F). Humidity 95% or less (non-condensing)
• Language: English
• General Function: Anti-flicker, heart beat, mirror, password protection
• Power Interface;

RJ45: PoE power supply

M12: 4-core aviation plug

• Cable Length: 50 cm
