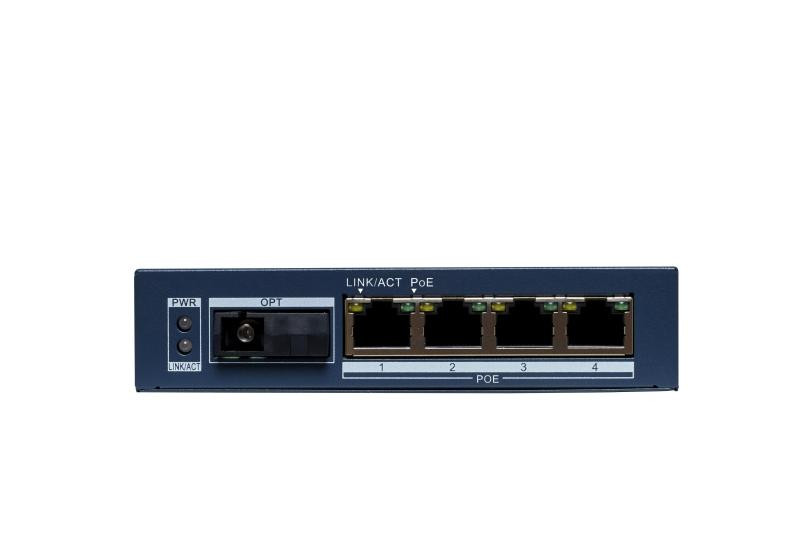

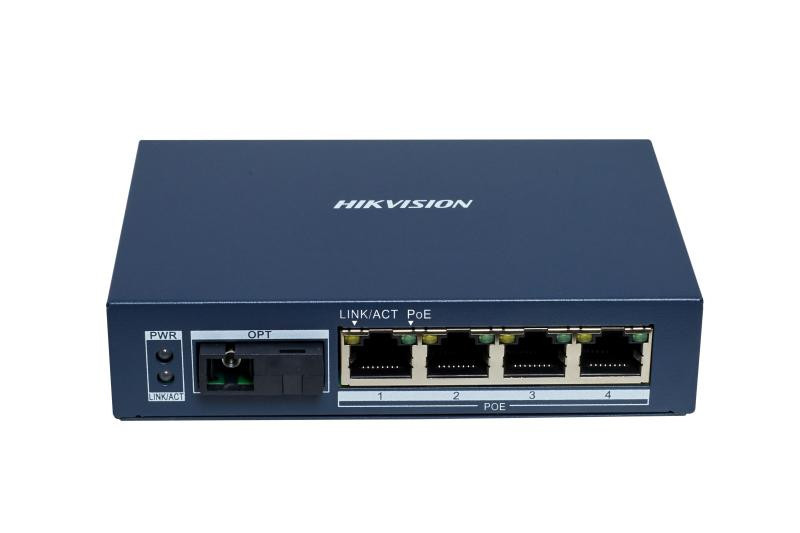

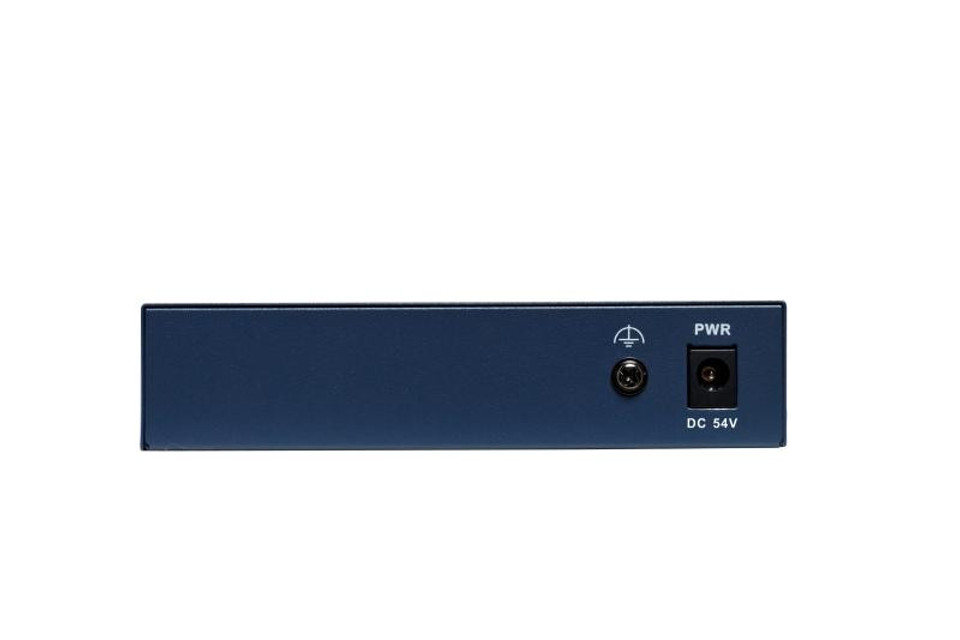

Hikvision 20KM Gigabit PoE Fiber Transceiver - DS-3D504TP-A
- 4 x 10/100/1000 Mbps PoE port and 1 x 1000 Mbps SC fiber optical port
- Plug-and-play and fast forwarding, achieving high-speed, lossless, and up to 20 km transmission of data signals with no configuration required
- 6 kV lightning protection design with high reliability
- Quasi-industrial-grade design with an operating temperature range of 0 °C to 40 °C
- Wavelength division multiplexing and single-fiber data forwarding, saving cabling costs
- Solid and high-strength industrial-grade metal shell with stronger heat dissipation capability
Specification
General
- Shell: Metal
- Net Weight: 0.13 kg (0.28 lb)
- Gross Weight: 0.23 kg (0.51 lb)
- Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 54VDC, 1.2A
- Max. Power Consumption: <65W
- Power Consumption in Idle: 2 W
- Installation Mode: Desk-Mounted,Wall-Mounted
- Surge Protection: 6 kV
Data Sheet(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +44 330 043 2524 | You can also use the quote request page
