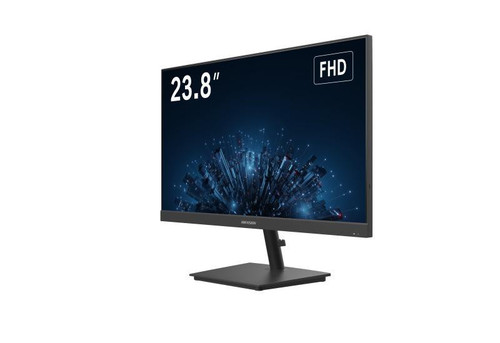

Hikvision 23.8 inch FHD 100Hz IPS Monitor - DS-D5024F2-6P2(EU)
- IPS technology, 178° ultra-wide view screen.
- 8 bit LVDS FHD (1920 × 1080) display.
- 100Hz refresh rate, more fluid and life-like video.
- Ultra-thin device body with ultra-thin border for 3 sides.
- Low blue light design for eye care.
- Dual interface of HDMI and VGA.
Specification
Display
- Screen Size: 23.8 inch
- Active Display Area: 527.04 mm (H) × 296.46 mm (V)
- Resolution: 1920 × 1080
- Backlight: E-LED
- Pixel Pitch: 0.2745 mm (H) × 0.2745 mm (V)
- Brightness: 250 cd/m²
- Viewing Angle: 178° (H) / 178° (V)
- Color Depth: 6 bit + FRC ,16.7 M
- Contrast Ratio: 4000: 1
- Response Time: 14 ms（typ）
- Refresh Rate: 100 Hz
- Haze: Haze 25% ，3 H
- Reliability: 7 × 16 H
- Color Gamut: 72% NTSC
Interface
- Video & Audio Input: HDMI 1.4 × 1, VGA x 1
- Video & Audio Output: Audio Out × 1
- Data Transmission Interface: None
- Control Interface: None
Power
- Power Supply: DC 12 V, 2.0 A
- Power Consumption: ≤ 24 W
- Standby Consumption: ≤ 0.5 W
Working Environment
- Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity: 20% to 90% RH (Non-Condensing)
- Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
- Storage Humidity: 10% to 90% RH (Non-Condensing)
General
- Speaker: None
- Casing Material: Plastic
- VESA: 75 mm × 75 mm (4-M4 × 6 mm)
- Bezel Width: 2 mm（up/left/right），23.55 mm（down）
- Product Dimensions (W × H × D):
Without base: 557.40 (W) mm × 326.70 (H) mm × 61.73 (D) mm
21.9 (W) inch × 12.9 (H) inch × 2.4 (D) inch
With base: 557.40 mm × 533.5 mm × 210.5 mm
21.9 (W) inch × 21 (H) inch × 8.3 (D) inch
- Package Dimensions (W × H × D):
647 (W) mm ｘ 440 (H) mm ｘ 111 (D) mm
25.47 (W) ｘ 17.32 (H) ｘ 4.37 (D) inch
- Net Weight: 2.4 ± 0.5 kg (5.3 ± 1.1 lb)
- Gross Weight: 3.8 ± 0.5 kg (8.4 ± 1.1 lb)
- Packing List: Monitor × 1, Base component × 1, Power adapter (12 V, 2 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
