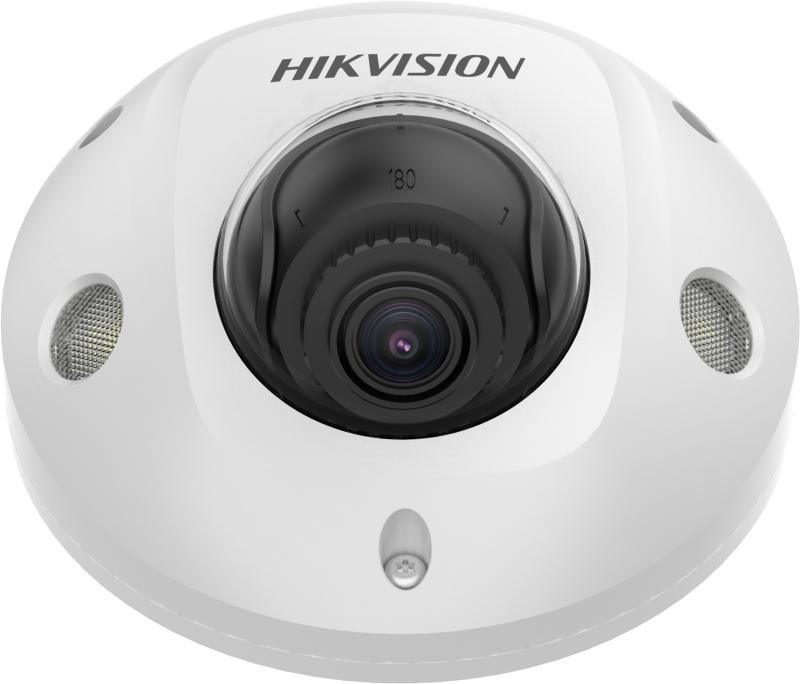

Hikvision 2MP AI Mobile Dome - DS-2XM6726G1-IM/ND/X(2.8mm)

• High quality image with 2MP resolution
• 2.8/4 mm fixed lens
• Clear imaging against strong back light based on 120 dB WDR technology
• Water and dust resistant (IP67) and vandal resistant(IK10)
• Support face masking and main code stream encryption.

Datasheet

Specification

Camera

• Image Sensor: 1/2.8" CMOS Progressive Scan
• Min. Illumination: 0.02Lux @ (F1.6, AGC ON)
• Resolution: 2MP
• Shutter Speed: 1/3 s to 1/100,000 s
• P/N;

PAL: 25fps

NTSC: 30fps

• Day & Night: IR Cut Filter
• Angle Adjustment: Pan:-30°~+30°, Tilt: 0°~75°, Rotate: 0°~ 360°
• White Balance;

Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light;

Support manual/automatic white balance adjustment.

Lens

• Focal Length: 2.8mm/4mm
• Focal Length & FOV;

2.8mm: horizontal:105°, vertical: 56°, diagonal: 126°

4mm: horizontal：87°, vertical: 44°, diagonal: 104°

• Lens Mount: M12
• Focus: Fixed focus
• Max. Aperture;

2.8mm: F1.6

4mm: F1.6

Interface

• Ethernet Interface: 4-core M12 aviation plug
• Audio: 1 built-in mic, mono sound
• Reset Key: Support
• Interface Type: Interpolate
• TF Card Storage: Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering)

General

• Product Dimension: 110 mm × 57.4 mm (4.3" × 2.26")
• Package Dimension: 252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
• Power: PoE: 0.16 A to 0.25A, max: 9.0 W
• Product Weight: Approx. 452 g (1 lb.)
• With Package Weight: 252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
• Protection: IP67, IK10
• Camera Material: Metal
• Startup and Operating Conditions: -30 °C to 75°C (-22 °F to 167°F), humidity 95% or less (non-condensing)
• Language: English, French, German, Russian, Italy, Korean, Portugual, Spanish, Turkish, Poland, Czech
• General Function: Anti-flicker, heartbeat, mirror, password protection, privacy mask
• Software Reset: Support
• Power Supply: M12: PoE (802.3af, 36 V to 57 V)
• Power Interface: -IM/ND: 4-core M12 aviation plug, PoE power supply
• Cable Length: 50 cm
