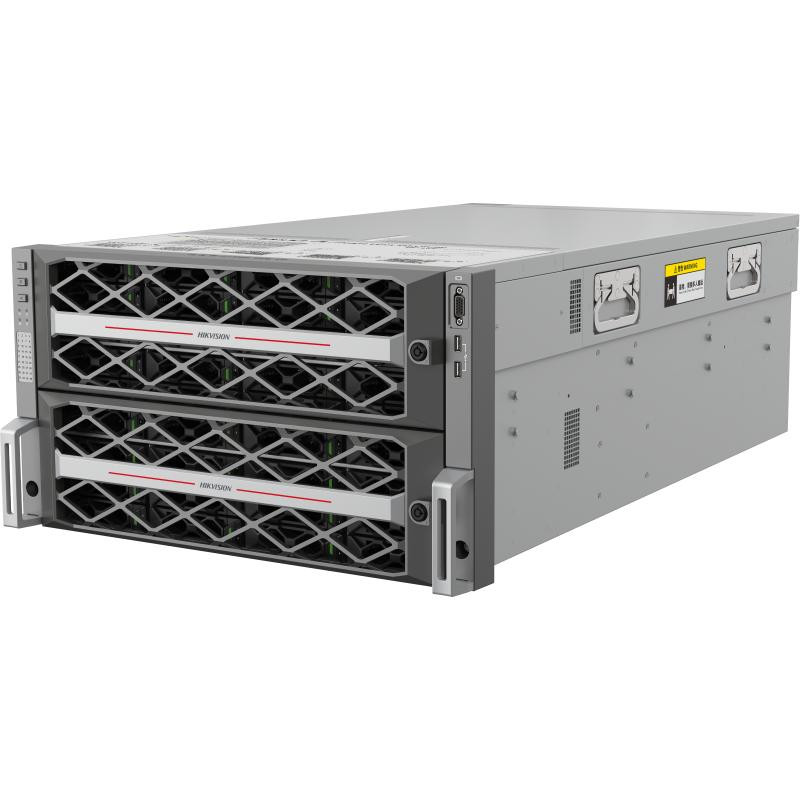

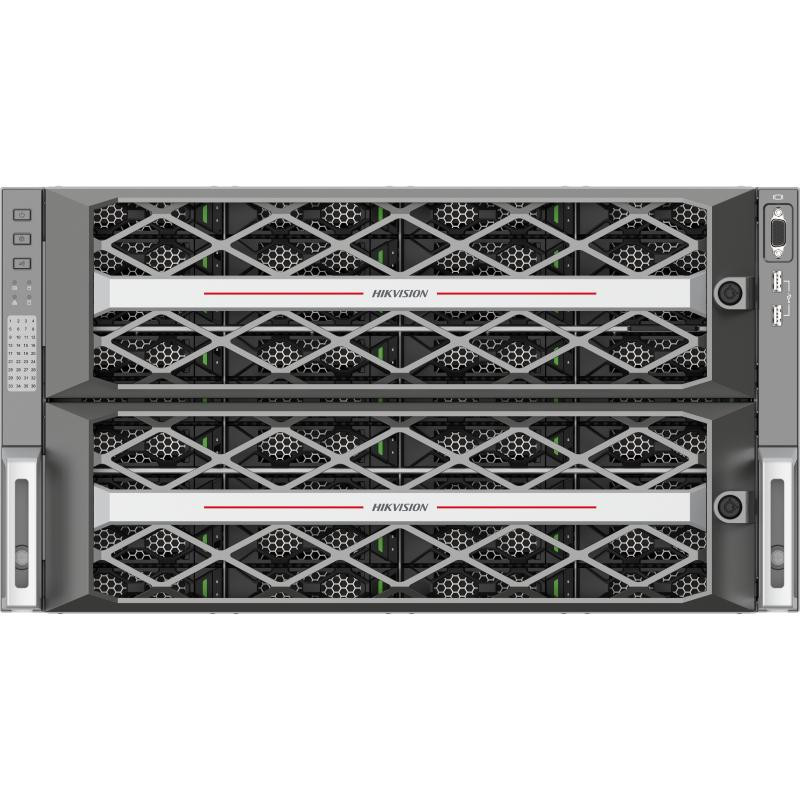

Hikvision 36-slot Single Controller Storage - DS-A80636SI

• High-quality recorder capable of storage and adopts multiple advanced technologies, including direct streaming video and picture technology, VRAID technology etc.
• Modular and no-cable design.
• Support scheduled backup function, allow the configuration of schedule to transfer historical recordings from IPC/NVR/DVR devices to network storage.
• Connectable to encoding devices (IPC/DVR//NVR) using standard stream media protocol such as RTSP, ONVIF etc
• Support multiple recording types, including continuous recording, manual recording, main ,sub and third stream recording; motion recording, sensor alarm recording etc.
• Support one-touch quick setting with user friendly B/S interface.
• Adopt ANR technology to ensure data integrity when the network disconnected.

Specifications

Performance Parameter

• Recording mode: video (2 Mbps) + picture: 550-ch (1100Mbps)
• Video performance: 550-ch (1100Mbps)

External Interface

• HDMI: Rear × 1
• eSATA Interface: Rear × 1

General specification

• Chassis: 6U
• Dimension (W × H × D): 447 × 262.1 × 787 mm (17.6 × 10.3 × 30.96 in)
• Weight (without HDDs): ≤ 41kg
• Power Module: Redundant 800W
• Rated power consumption: Working: ≤ 674W
• Working humidity: 20% to 80%RH (non-condensing/frozen)
• Storage humidity: 5% to 90%RH (non-condensing/frozen)

Network

• Protocol: RTSP, ONVIF, SDK, ISAPI

External interface

• USB;

USB 2.0: Front × 2

USB 3.0: Rear × 4

• Data network interface: 4 × 2.5G Ethernet interface(4 × GbE or 2 × GbE or 1 × GbE or 2 × 10GbE is extendable)
• COM: RS-232 serial interface × 1
• Management network interface: 1, 1000M Ethernet interface

Storage

• HDD slot: 36
• Interface/capacity: SATA/4 TB, 6 TB, 8 TB, 10 TB, 12 TB, 16 TB, 20 TB
• Hot-swapping: Supported
• HDD support: Enterprise Hard Disk
• RAID: RAID 0, 1, 5, 6, 10, 50, VRAID 2.0, Hot-Spare

Hardware

• Structure: Controller Structure
• Processor: 64-bit multi-core processor
• Cache: 16 GB (extendable to 64 GB)

Storage Management

• Disk management: Disk inspection, alarm and repair
• Logical volume management: video and picture pool management

Recording Management

• Recording mode: Timing recording, event recording
• Video protection: Lock key video, ANR, video loss detection and alarm
• Searching mode: Search by time and event
• Downloading mode: download by time, download by file

Device Maintenance

• Management mode: Web-based GUI, serial interface CLI, centralized management of multiple devices (HCP, HCM)
• Alarm mode: Sound, light, email, web page
• Log downloading: Download on web page

HDD

• HDD Model;

Hikvision, HK724TAH, 4TB;

Hikvision, DS40HKAI-VX1, 4TB;

Hikvision, HK726TAH, 6TB;

Hikvision, DS60HKAI-VX1, 6TB;

Hikvision, HK728TAH, 8TB;

Hikvision, DS80HKAI-VX1, 8TB;

Hikvision, HK7210AH, 10TB;

Hikvision, HK7212AH, WCAE, 12TB;

Hikvision, HK7216AH, 16TB;

Hikvision, HK7220AH, 20TB;

Hikvision, DS200HKAI-VX1, 20TB;
