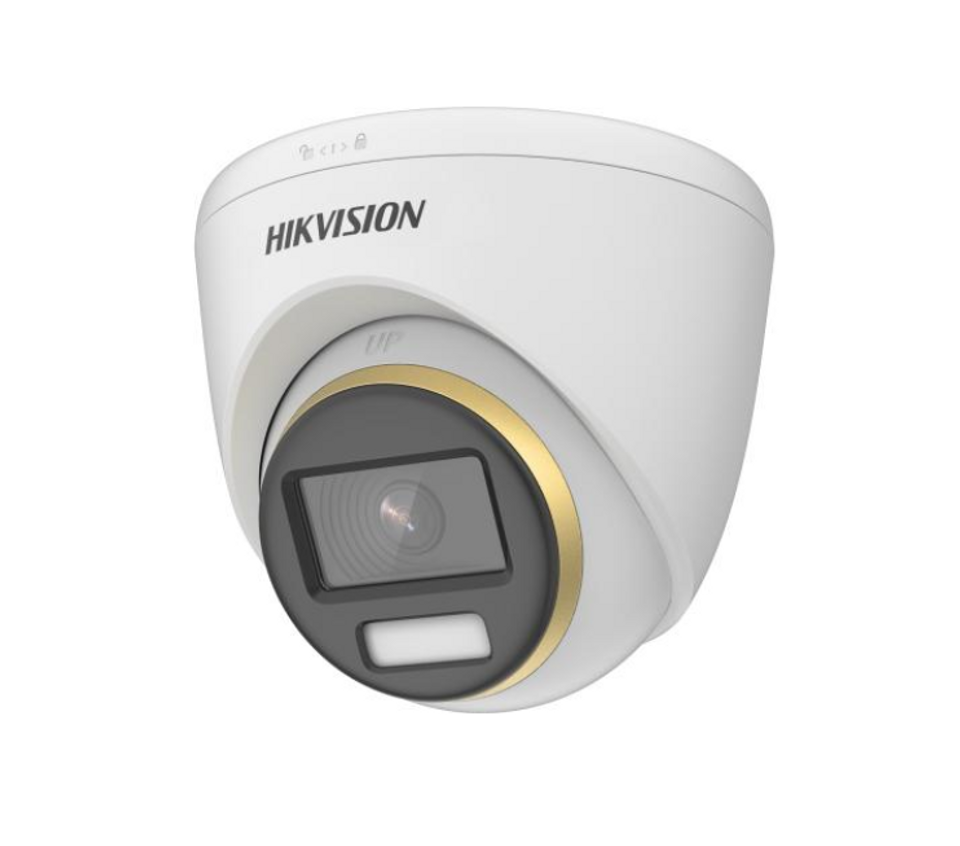

Hikvision 3K ColorVu Dual-light PoC Fixed Turret Camera

• High quality imaging with 3K, 2960 × 1665 resolution
• Excellent low-light performance
• 24/7 color imaging with F1.0 aperture
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 40 m IR distance for bright night imaging
• Up to 40 m white light distance for bright night imaging
• Water and dust resistant (IP67)
• Smart-Hybrid light, optimize your security with flexible lighting options

DATASHEET

Specification

Camera

• Image Sensor: 3K CMOS
• Signal System: PAL/NTSC
• Max. Resolution: 2960 (H) × 1665 (V)
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Lens

• Lens Type: 2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV:

  2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 139°

  3.6 mm, horizontal FOV: 80°, vertical FOV: 49°, diagonal FOV: 105°

• Lens Mount: M12

Illuminator

• Supplement Light Type: Smart, IR, White Light
• Supplement Light Range: IR: Up to 40 m, White Light: Up to 40 m


• Frame Rate: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
• Wide Dynamic Range (WDR): ≥130 dB
• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• Day/Night Mode: Auto/Color
• White Balance: Auto/Outdoor/Global/Manual
• Image Enhancement: WDR, BLC, HLC, Global, HLS
• Privacy Mask: 4 programmable privacy masks
• Noise Reduction: 3D DNR/2D DNR
• Image Settings: Smart Light;Mirror;Contrast;Brightness;Anti-Banding

Interface

• Video Output: 1 HD analog output

Event

• Motion detection: 4 programmable motion areas

General

• Language: English
• Operating Condition: -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensing)
• Material: Main body: Metal, Enclosure: Plastic
• Communication: HIKVISION-C
• Dimension: Ø109.98 mm × 98.27 mm (4.33" × 3.87")
• Weight: Approx. 360 g (0.79 lb.)
• Power;

  12 VDC±25%, max. 7.8 W, PoC.at,

  *You are recommended to use one power adapter to supply the power for one camera. If a high-impedance cable is used (such as the 18 m extension cable in the kit package), a 15 VDC adapter is required.

Approval

• Protection: IP67
