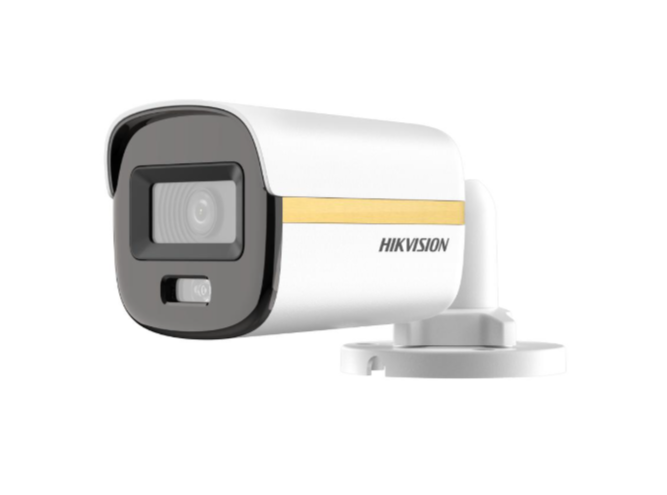

Hikvision 3K ColorVu Fixed Bullet Camera

• High quality imaging with 3K, 2960 × 1665 resolution
• Excellent low-light performance
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Water and dust resistant (IP67)
• 24/7 color imaging with F1.0 aperture

DATASHEET

Specification

Camera

• Image Sensor: 1/1.8" 3K CMOS
• Signal System: PAL/NTSC
• Max. Resolution: 2960 (H) × 1665 (V)
• Min. Illumination: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Light Alarm: Solid Light Alarm (White Light)
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

Lens

• Lens Type: 2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV:

  2.8 mm, horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 133°

  3.6 mm, horizontal FOV: 95°, vertical FOV: 50°, diagonal FOV: 115°

• Lens Mount: M16


• Frame Rate: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
• Wide Dynamic Range (WDR): ≥130 dB
• White Light: Auto/Off
• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• AGC: Yes
• Day/Night Mode: Auto/Color
• White Balance: Auto/Outdoor/Global/Manual
• Image Enhancement: WDR;Global;HLC;BLC;HLS
• Privacy Mask: 4 programmable privacy masks/8programmable privacy masks
• Noise Reduction: 3D DNR/2D DNR
• Image Settings: Brightness;Contrast;Mirror;Smart Light;Anti-Banding

Interface

• Video Output: 1 HD analog output

Event

• Motion detection: 4 programmable motion areas

General

• Language: English
• Operating Condition: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Power Supply;

  12 VDC ± 25%

  *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

• Consumption: Max. 5.3 W
• Material: Metal
• Communication: HIKVISION-C
• White Light Range: Up to 40 m
• Dimension: 194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
• Weight: Approx. 515 g (1.14 lb.)

Approval

• Protection: IP67
