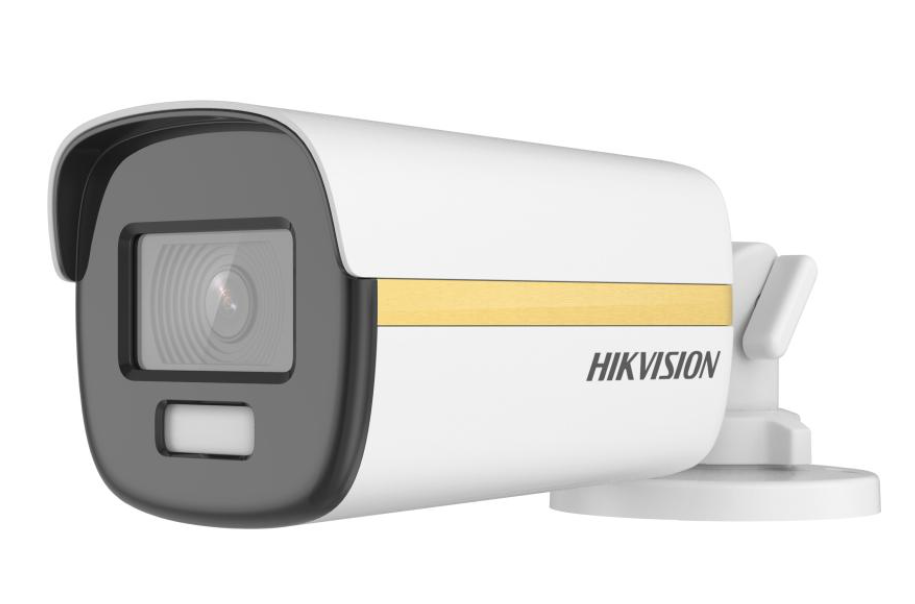

Hikvision 3K ColorVu Fixed Mini Bullet Camera
- High quality imaging with 3K, 2960 × 1665 resolution
- Excellent low-light performance
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 20 m white light distance for bright night imaging
- Water and dust resistant (IP67)
- 24/7 color imaging with F1.0 aperture
DATASHEETSpecification
Camera
- Image Sensor: 1/1.8" 3K CMOS
- Signal System: PAL/NTSC
- Max. Resolution: 2960 (H) × 1665 (V)
- Min. Illumination: 0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time: PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Light Alarm: Solid Light Alarm (White Light)
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Lens
- Lens Type: 2.8 mm and 3.6 mm fixed focal lens
- Focal Length & FOV:
2.8 mm, horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 133°
3.6 mm, horizontal FOV: 95°, vertical FOV: 50°, diagonal FOV: 115°
- Lens Mount: M16
- Frame Rate: 3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
- Wide Dynamic Range (WDR): ≥130 dB
- White Light: Auto/Off
- Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
- AGC: Yes
- Day/Night Mode: Color
- White Balance: Auto/Outdoor/Global/Manual
- Image Enhancement: WDR;Global;HLC;BLC;HLS
- Privacy Mask: 4 programmable privacy masks
- Noise Reduction: 3D DNR/2D DNR
- Image Settings: Brightness;Contrast;Mirror;Smart Light;Anti-Banding
Interface
- Video Output: 1 HD analog output
Event
- Motion detection: 4 programmable motion areas
General
- Language: English
- Operating Condition: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- Power Supply;
12 VDC ± 25%
*You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
- Consumption: Max. 4 W
- Material: Metal
- White Light Range: Up to 20 m
- Communication: HIKVISION-C
- Dimension: 161.1 mm × 70 mm × 70 mm (6.34" × 2.76" × 2.76")
- Weight: Approx. 400 g (0.88 lb.)
Approval
- Protection: IP67
