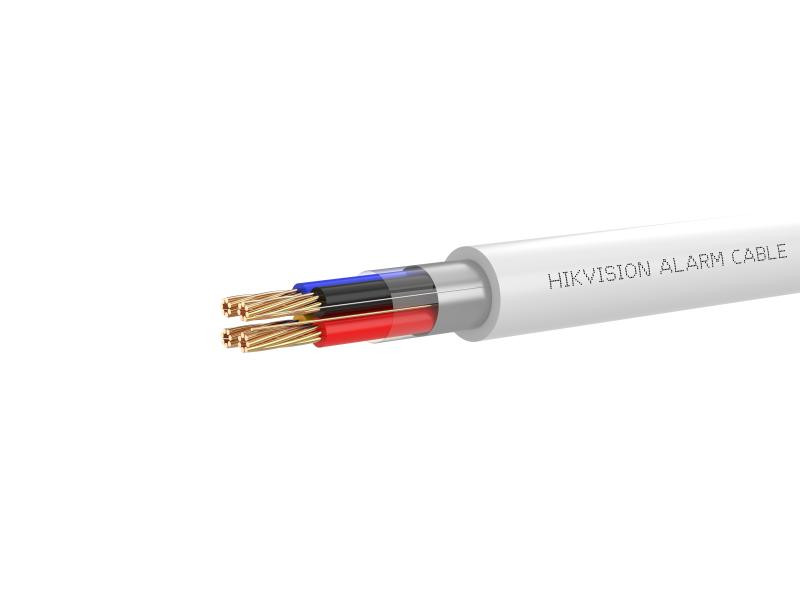

Hikvision 4-Core PVC Alarm Cable Used For Wiring Of Smoke Detectors, Anti-Theft Alarms, & Motion Detectors
- Suitable for high-rise office buildings, hospitals, entertainment venues hotels, guest houses and other buildings.
- Used for wiring of smoke detectors, anti-theft alarms, and motion detectors.
- Jacket with good mechanical strength, reducing damage during the project.
- Continuous operation at -20 to 70℃.
- Compliant with RoHS 2.0, CPR Eca.
Specification
Category
- Product Category: 4-Core Alarm Cable
Fire resistance
- Fire resistance: CPR Eca
- Product spec:
- Core4 * 0.22mm²
Conductor/Conductor 1
- Conductor Material: Bare Copper (99.95%)
- Conductor spec: 7 * (0.185 ± 0.01) mm
Insulation
- Sheath Color: Red/Yellow/Blue/Black
Insulation/Insulation 1
- Insulation Material: PVC
- Insulation Thickness: ≥ 0.18m
- Insulation Diameter: 1.0 ± 0.10mm
Rip-cord
- Rip-cord: polyester
Jacket
- Jacket Material: PVC
- Jacket thickness: ≥ 0.50 mm
- Jacket Diameter: 3.50 ± 0.30 mm
- Color: White
Packaging and Weights
- Packaging Type: 1 roll/pcs, 8 pcs/carton
- Package dimension: 165 * 165 * 103 mm/roll, 340 * 340 * 220 mm/carton
- Length: 100 m
- 0±0.5 kg/roll, 17.0±2.0 kg/carton
DATA SHEET(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +44 330 043 2524 | You can also use the quote request page
