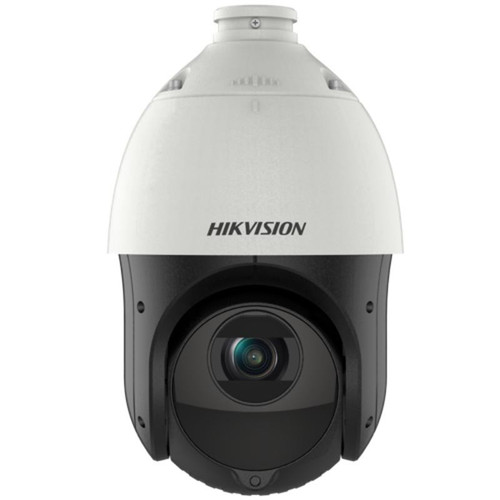

Hikvision 4 MP 25X Powered by DarkFighter IR Acusense Network Speed Dome

• Focuses on human and vehicle targets classification based on deep learning
• Support face capture. Up to 5 faces captured at the same time
• 1/2.8" progressive scan CMOS
• High quality imaging with 4 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology
• 25× optical zoom and 16× digital zoom provide close up views over expansive areas
• Expansive night view with up to 100 m IR distance
• Support H.265+/H.265 video compression

Datasheet

Specifications

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1/1 s to 1/30,000 s
• Day & Night: IR cut filter
• Zoom: 25x optical, 16x digital
• Slow Shutter: Yes

Lens

• Focal Length: 4.8 mm to 120 mm
• FOV;

  Horizontal field of view: 55° to 2.4° (wide-tele),

  Vertical field of view: 33° to 1.4° (wide-tele),

  Diagonal field of view: 61.5° to 2.8° (wide-tele)

• Focus: Auto, semi-auto, manual
• Aperture: Max. F1.6
• Zoom Speed: Approx. 3.6 s

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: IR Distance: up to 100 m

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: Pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt Speed: Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Pan: Yes
• Presets: 300
• Preset Freezing: Yes
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Park Action: Preset, patrol scan, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Scheduled Task: Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

General

• Power: 12 VDC, max. 18 W, including max. 1.6 W for heater and 9 W for IR; PoE (802.3at)
• Dimension: Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42")
• Weight: Approx. 2 kg (4.41 lb)
• Material: ADC12
• Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• Demist: Yes
