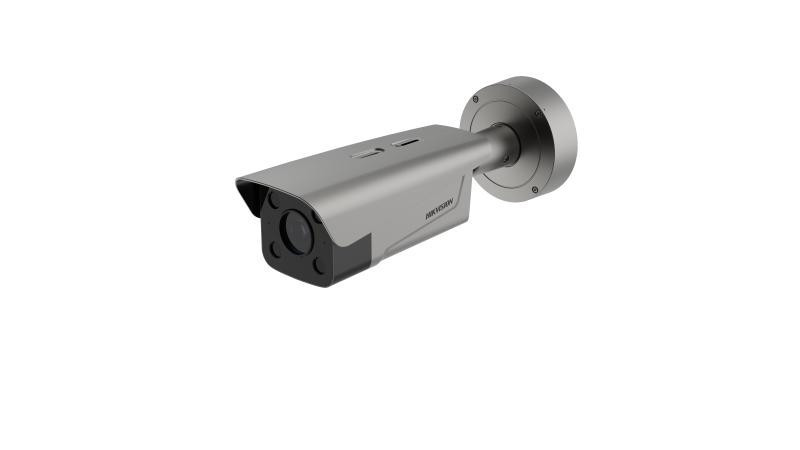

Hikvision 4 MP Access ANPR Camera - DS-TCG406-E

• 1/1.8" progressive scan CMOS.
• Up to 2688 × 1520 resolution with real-time video.
• 4 built-in high-performance LEDs (integrated white light and IR).
• 2.8 to 12 mm/8 to 32 mm motorized vari-focal lens.
• Supports relay output to control vehicle barrier gate.
• Supports Wiegand, connectable with access control system.
• Supports loop triggering, radar triggering, and video triggering LPR.
• Supports multi-frame LPR, improving LPR rate.
• Supports dirty license plate recognition.
• Equipped with vehicles passing detection algorithm to realize auto switch of barrier gate normally open mode during continuous vehicles passing and improve passing efficiency.
• Supports vehicle type, vehicle color, and vehicle brand recognition.
• Integrated shield, lights, and TF card slot (up to 1 TB).
• Up to 100,000 blocklist and allowlist.
• Supports offline control of barrier gate under allowlist mode.
• Supports a variety of installation methods: pole mounting, wall mounting, pendant mounting, and universal joint installation. Equipped with concealed wire box.
• Adopts entrance and exit dedicated exposure algorithm to adapt to the front/back light and inconsistent front and rear license plates scenes to improve LPR accuracy.

Specification

Camera

• Max. Resolution: 2688 × 1520
• Sensor Type: 1/1.8" Progressive Scan CMOS
• Min. Illumination;

Color: 0.0005 Lux @ (F1.2, AGC ON)

B/W: 0.0001 Lux @ (F1.2, AGC ON)

0 Lux with IR

• Shutter: 1/30 s to 1/100,000 s
• Day/Night Switch: Supported
• IR Cut Filter;

IR cut filter

Blue glass module to reduce ghost phenomenon

Lens

• Lens Type;

2.8 to 12 mm

8 to 32 mm

• Aperture;

2.8 to 12 mm: F1.2 to F2.5t

8 to 32 mm: F1.7 to F1.73

• Focal Length & FoV;

2.8 to 12 mm, horizontal FoV: 114.5° to 41.8°, vertical FoV: 59.3° to 23.6°, diagonal FoV: 141.1° to 48°,

8 to 32 mm, horizontal FoV: 42.5° to 15.1°, vertical FoV: 23.3° to 8.64°, diagonal FoV: 49.6° to 17.3°

• Focus: AutoVari-focal lens, motor-driven lens

General

• Power Supply: 12 to 24 VDC/PoE (802.3at, 44 V to 57 V), 300 mA to 230 mA
• Working Consumption: 10 W Max.
• Dimensions: 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch)
• Weight: 3.25 kg (7.17 lb.)
• Weight (with Package): 4.3 kg (9.48 lb.)
• Package Size: 465 mm × 200 mm × 198 mm (18.31 × 7.87 × 7.80 inch)
• Storage Conditions;

Temperature: -20 °C to 70 °C (- 4°F to 158 °F)

Humidity: 95% (non-condensing)

• Startup and Operating Conditions;

Temperature: -30 °C to 70 °C (-22 °F to 158 °F)

Humidity: 95% (non-condensing)
