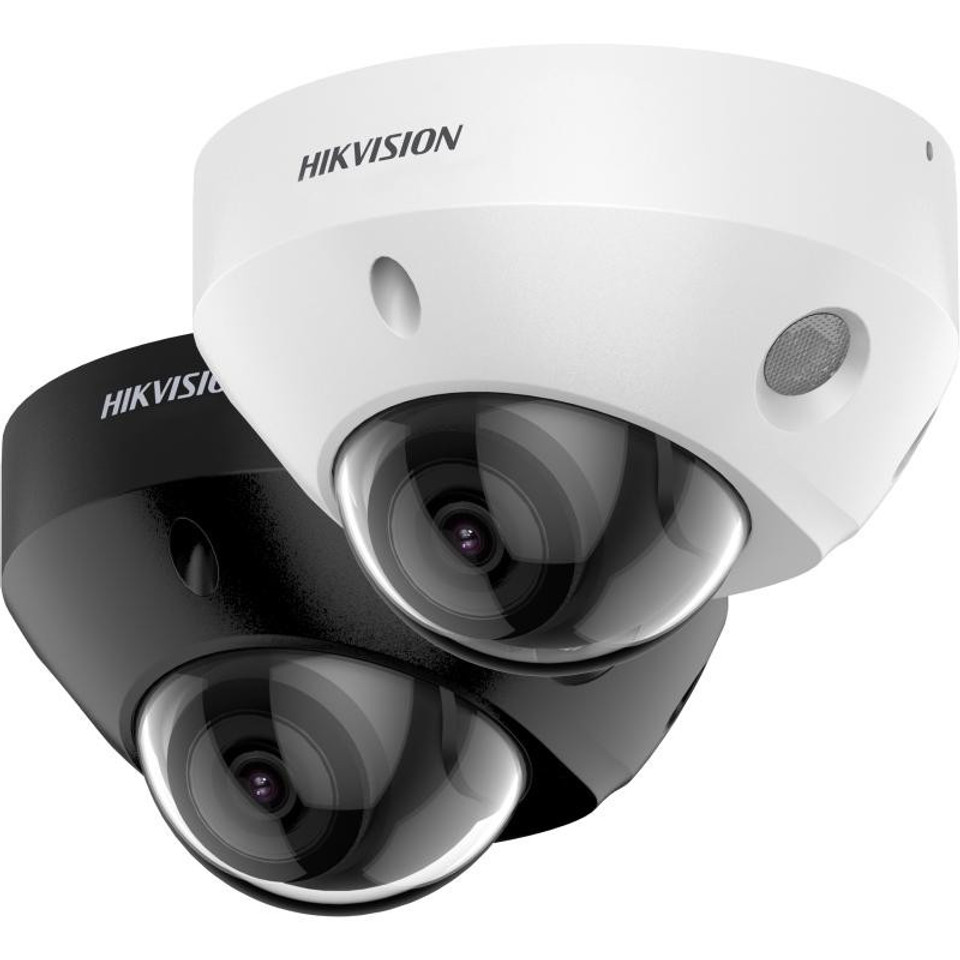

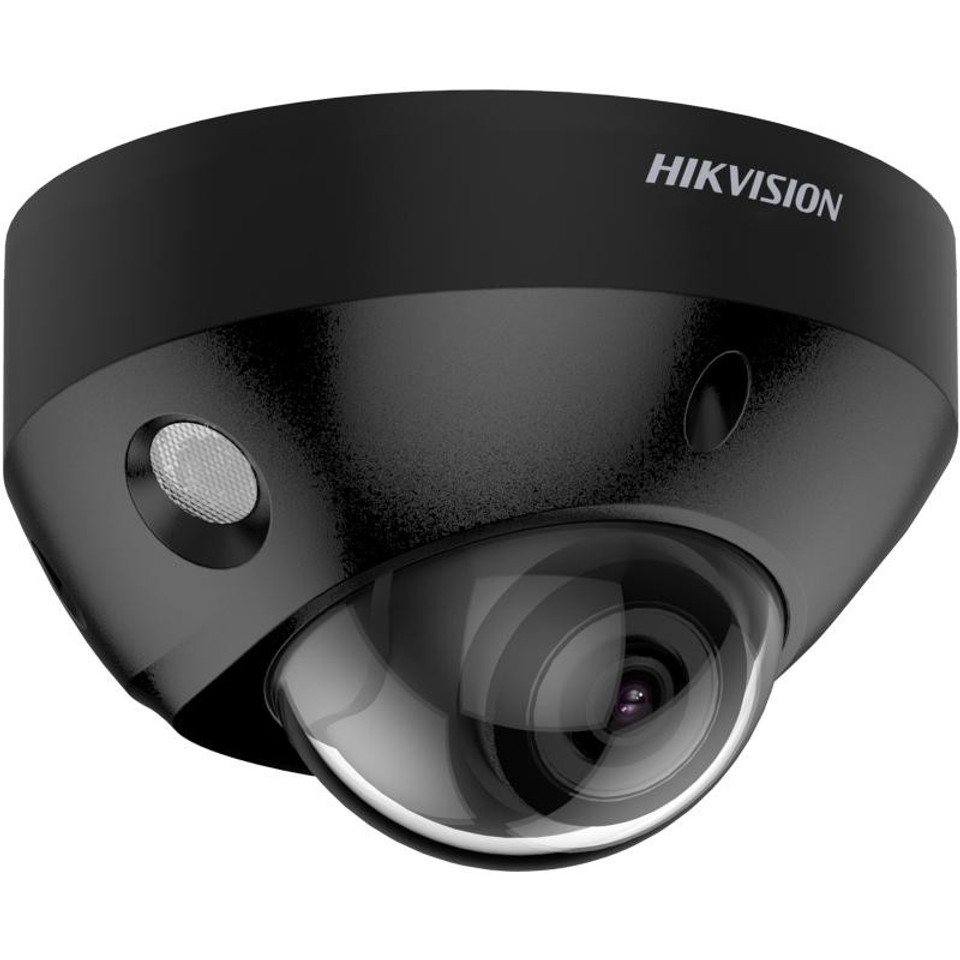

Hikvision 4 MP ColorVu Fixed Mini Dome Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• 24/7 colorful imaging
• Focus on human and vehicle classification based on deep learning
• -S: audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK08)

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: 24/7 Colour imaging
• Angle Adjustment: Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

4 mm, horizontal FOV 95°, vertical FOV 47°, diagonal FOV 115°

• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:

• mm: 2.3 m to ∞

4 mm: 3.2 m to ∞

DORI

• DORI:

2.8 mm:

D: 58 m

O: 23 m

R: 11 m

I: 6 m

4 mm:

D: 77 m

O: 30 m

R: 16 m

I: 8 m

Illuminator

• Supplement Light Type:  White Light
• Supplement Light Range:  Up to 30 m
• Smart Supplement Light:  Yes

General

• Power:

12 VDC ± 25%, Ø5.5 mm coaxial power plug, reverse polarity protection, 0.54 A, max. 6.5 W

PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W

• Material: Base: aluminium, cover: plastic
• Dimension: Ø113.6 mm × 72.6 mm (Ø4.5" × 2.9")
• Package Dimension: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
• 400 g (0.9 lb.)
• With Package Weight: 635 g (1.4 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Start up and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
