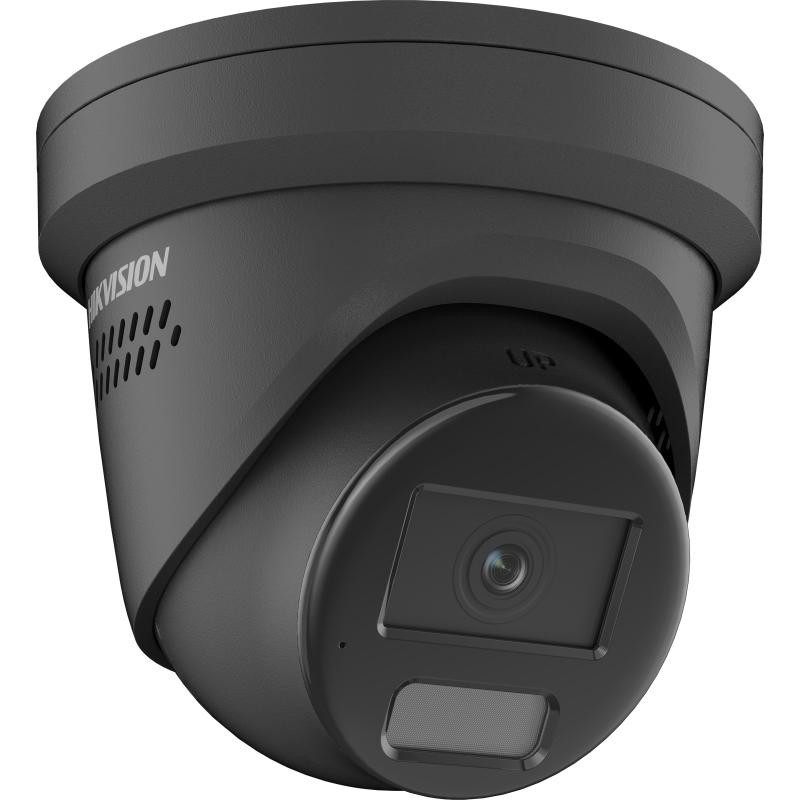

Hikvision 4 MP ColorVu Strobe Light and Audible Warning Fixed Turret Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 130 dB WDR technology
• Focus on human and vehicle targets classification based on deep learning
• 24/7 colorful imaging
• Active strobe light and audio alarm to warn intruders off
• Provide real-time security via built-in two-way audio
• Audio and alarm interface available
• Water and dust resistant (IP67)

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

• Focal Length & FOV:

2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6°

4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°

• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:

• mm: 3.1 m to ∞

4 mm: 5.4 m to ∞

DORI

• DORI:

• mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m

4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m

Illuminator

• Supplement Light Type: White light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes

General

• Power:

12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W

• Dimension: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
• Package Dimension: 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
• Weight: 760 g (1.7 lb.)
• With Package Weight: 1040 g (2.3 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Start up and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language:

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
