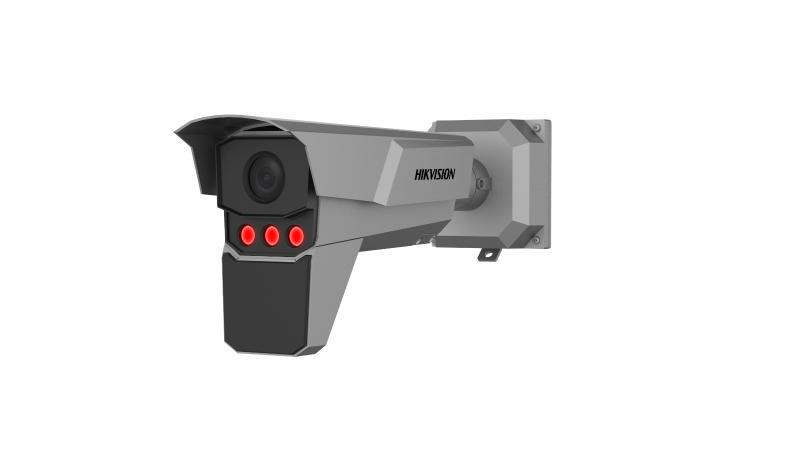

Hikvision 4 MP Radar-Assisted ANPR Smart Monitoring Camera - iDS-TCM403-GR/POE/2812

• High quality imaging with 4 MP resolution(1/1.8'' CMOS)
• Built-in 77GHz high frequency millimeter wave radar
• Built-in ANPR engine, equipped with AI algorithm
• Clear imaging against strong back light due to 140 dB WDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• Water and dust resistant (IP67) and vandal proof (IK10)

Datasheet

Specification

Camera

• Image Sensor: 1/1.8″ progressive scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light
• Shutter Time: 1/50 s to 1/40,000 s
• Day & Night: 24/7 color imaging

Lens

• Focal Length & FOV;

2.8-12mm : Horizontal: 113.5° to 39°, Vertical: 58.4° to 22.7°, Diagonal: 141.3° to 44.3°

8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°

• Focus: Auto
• Iris Type: DC-IRIS
• Aperture;

2.8-12mm : F1.38,

8-32mm : F1.7

General

• Operating System: Linux
• Power;

DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block,

PoE: 802.3at, Type 2, Class 4, max. 15 W

• Material: Aluminum alloy
• Dimension: 429.5 mm × 120 mm × 184.2 mm (16.9" × 4.72" × 7.3") (L × W × H)
• Package Dimension: 595 mm × 259 mm × 193 mm (23.4" × 10.2" × 7.6") (L × W × H)
• Weight: Approx. 3.405 kg (7.51 lb.)
• With Package Weight: Approx. 4.635 kg (10.22 lb.)
• Operating Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
• Storage Condition: -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
• General Function: One-key reset, three streams, heartbeat, password protection, watermark
• Language: 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
