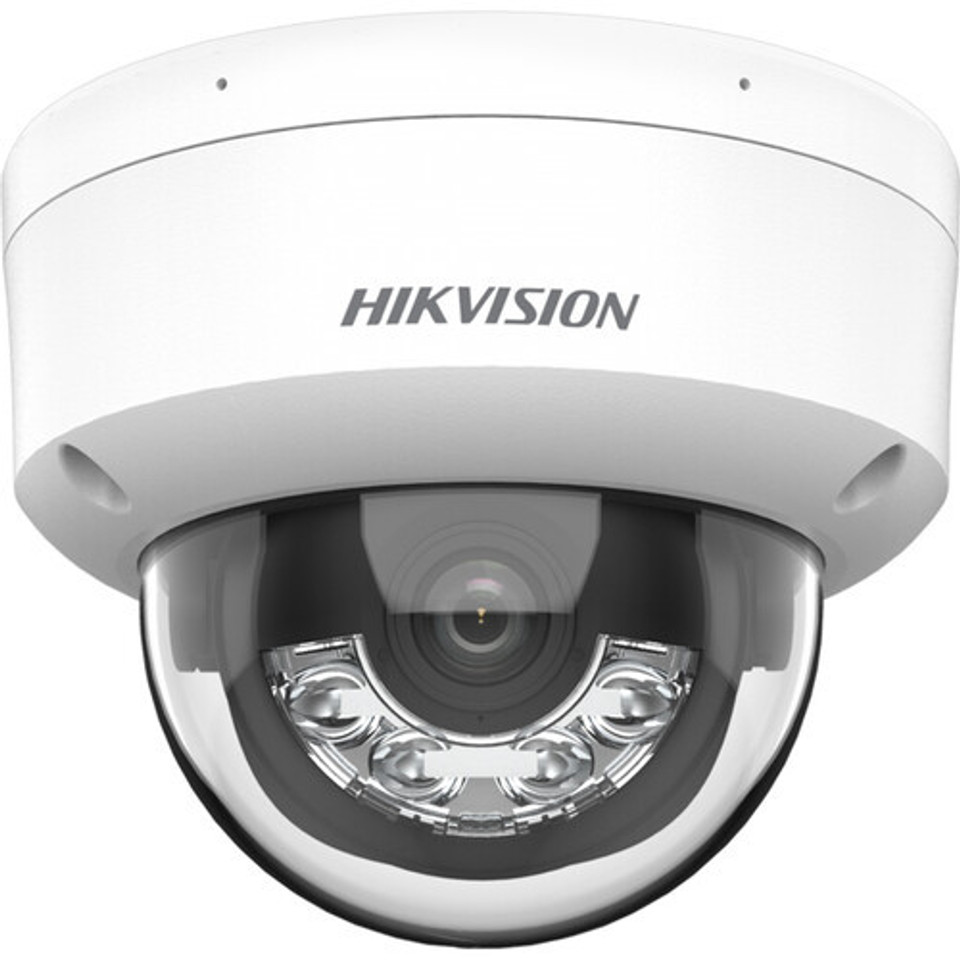

Hikvision 4 MP Smart Hybrid Light Fixed Dome Network Camera

• High quality imaging with 4 MP resolution
• Support Human and Vehicle Detection
• Smart Hybrid Light: advanced technology with long range
• Built-in microphone for real-time audio security
• Efficient H.265+ compression technology
• Support on-board storage up to 512 GB (SD card slot) (Optional)
• Water and dust resistant (IP67) and vandal resistant (IK08)

DATASHEET

Specification

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

  2.8 mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°

  4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°

• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6

DORI

• DORI:

  2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m

  4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream;


  50 Hz:

  20 fps (2560 × 1440)

  25 fps (1920 × 1080, 1280 × 720)

  60 Hz:

  20 fps (2560 × 1440)

  24 fps (1920 × 1080, 1280 × 720)

• Sub-Stream;

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Region of Interest (ROI): 1 fixed region for main stream

Audio

• Audio Type: Mono sound
• Environment Noise Filtering: Yes
• Audio Sampling Rate: 8 kHz/16 kHz
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

• Security: Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
• API: Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
• User/Host;

  Up to 32 users

  3 user levels: administrator, operator, and user

• Client: iVMS-4200,Hik-Connect
• Web Browser;

  Plug-in required live view: IE 10, IE 11,

  Local service: Chrome 57.0+, Firefox 52.0+


• Wide Dynamic Range (WDR): 120 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC,HLC,3D DNR
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain,white balance, adjustable by client software or web browser
• SNR≥ 52 dB
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: Yes
• Reset Key: -F: Yes

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
• Linkage: Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General

• Power;

  12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

  PoE: IEEE 802.3af, Class 3, max. 7.5 W

• Material: Metal & Plastic
• Dimension: Ø121.4 mm × 97.7 mm (Ø4.8" × 3.8")
• Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight: Approx. 550 g (1.2 lb.)
• With Package Weight: Approx. 550 g (1.2 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

• EMC;

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7

• Safety;

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017,

  BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

• Environment;

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• Protection: IP67: IEC 60529-2013,IK08: IEC 62262:2002
