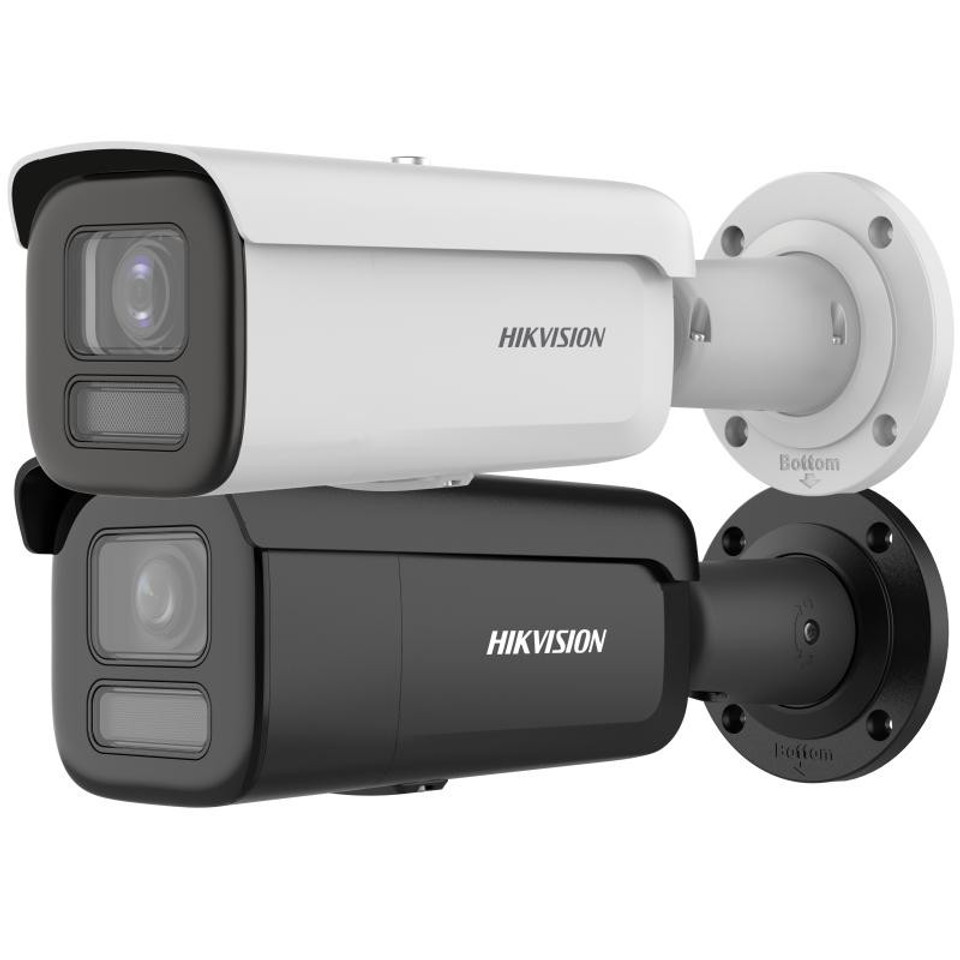

Hikvision 4 MP Smart Hybrid Light with ColorVu Motorized Varifocal Bullet Network Camera

• High quality imaging with 4 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Motorized varifocal lens for easy installation and monitoring
• Focus on human and vehicle classification based on deep learning
• Water and dust resistant (IP67) and vandal resistant (IK10)

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Colour: 0.0008 Lux @ (F1.2, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
• Lens Mount: Integrated
• Iris Type:  Fixed
• Aperture: F1.2
• Depth of Field1 m to ∞

DORI

• DORI:

Wide: D: 60.0m, O: 23.8 m, R: 12.0 m, I: 6.0 m

Tele: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m

Illuminator

• Supplement Light Type: IR,White Light
• Supplement Light Range:  Up to 60 m
• Smart Supplement Light:  Yes
• IR Wavelength: 850 nm

General

• Power:

12 VDC ± 25%, 1.21 A, max. 14.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3at, Class 4, max. 18 W

• Material: Front cover: Metal, body: Metal, bracket: Metal
• Dimension: 298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8")
• Package Dimension: 386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
• 1085 g (2.4 lb.)
• With Package Weight: 1639 g (3.6 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Start up and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
