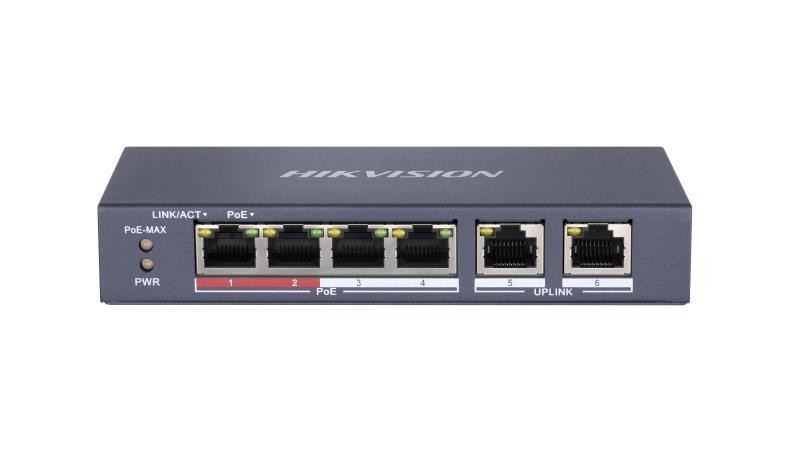

Hikvision 4 Port Fast Ethernet Unmanaged POE Switch - DS-3E0106P-E/M
- 4 x 10/100Mbps PoE port, and 2 × 10/100Mbps RJ45 port.
- IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design
Specification
General
- Shell: Metal material
- Net Weight: 0.27 kg (0.60 lb)
- Gross Weight: 0.52 kg (1.15 lb)
- Dimensions (W × H × D): 145 mm × 68.45 mm × 25.6 mm (5.71'' × 2.69'' × 1.01'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 48 VDC, 0.8 A
- Installation Mode: Desk-Mounted, Wall-Mounted
- Max. Power Consumption: 38 W
- Power Consumption in Idle: 3 W
- Surge Protection: 6 KV
Network Parameters
- Ports: 4 x 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
- MAC Address Table: 2 K
- Switching Capacity: 1.2 Gbps
- Packet Forwarding Rate: 0.89 Mpps
- Internal Cache: 768 Kbits
PoE Power Supply
- PoE Standard: IEEE 802.3af;IEEE 802.3at
- PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Port: PoE: Ports 1 to 4
- Max. Port: Power30 W
- PoE Power Budget: 35 W
Dialing Function
- Long Range:
Ports 1 to 4 : up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Software Function
- VIP Port: Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
Approval
- EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry:
CE-RoHS (201165EU);
WEEE (201219EU);
Reach (Regulation (EC) No.19072006)
