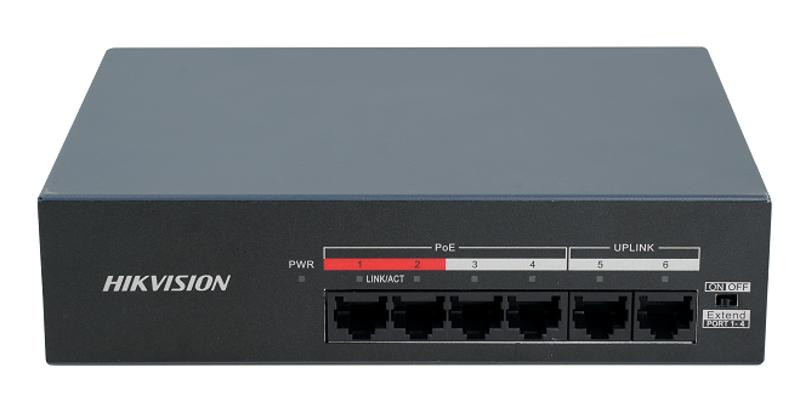

Hikvision 4 Port Fast Ethernet Unmanaged POE Switch - DS-XS06-P
- 4× 10/100 Mbps PoE RJ45 port and 2 × 10/100 Mbps RJ45 port
- Whole-device PoE power of 35 W
- Long-range transmission supported
- High-priority ports supported
Specification
General
- Shell: Metal material
- Net Weight: 0.54 kg (1.19 lb)
- Gross Weight: 0.58 kg (1.28 lb)
- Dimensions (W × H × D): 175.0 mm × 44.0 mm × 124.0 mm (6.89'' × 1.73'' × 4.88'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 220 VAC, 50 Hz, 0.8 A
- Max. Power Consumption: 35 W
- Power Consumption in Idle: 2.0 W
- Installation Mode: Desk-Mounted,Wall-Mounted
- Surge Protection: 2 KV
Network Parameters
- Ports: 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
- MAC Address Table: 2 K
- Switching Capacity: 1.2 Gbps
- Packet Forwarding Rate: 0.89 Mpps
- Internal Cache: 0.77 Mbits
PoE Power Supply
- PoE Port: PoE: Ports 1 to 4
- Max. Port Power: 30 W
- PoE Power Budget: 35 W
