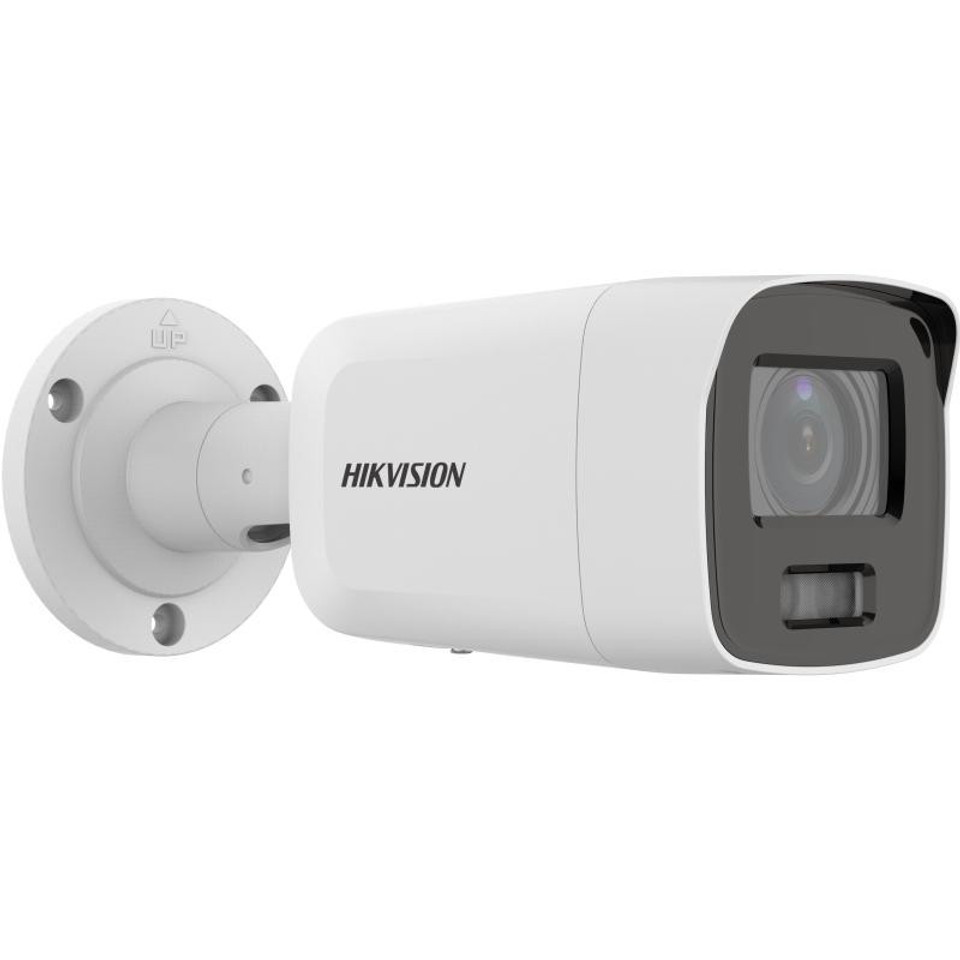

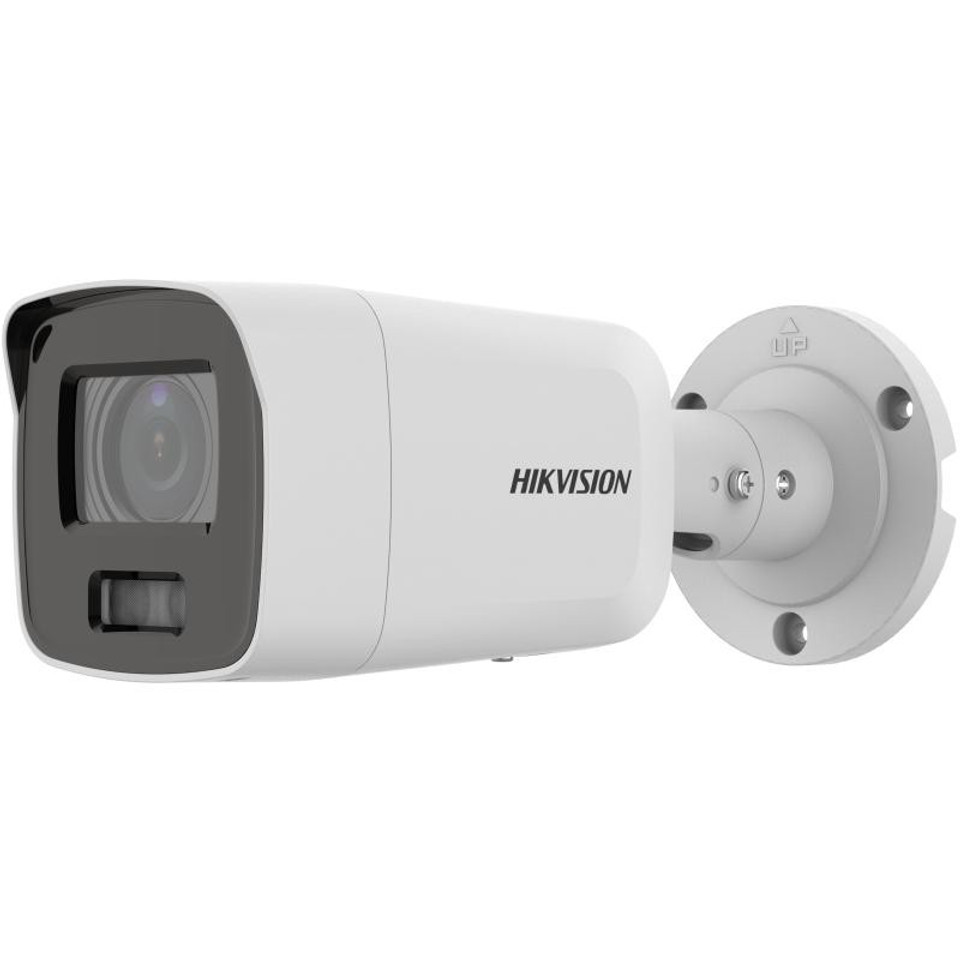

Hikvision 4 K ColorVu Fixed Bullet Network Camera

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• Focus on human and vehicle classification based on deep learning
• 24/7 colourful imaging
• Built-in microphone for real-time audio security (-U)

Specification

Camera

• Image Sensor: 1/1.2" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Colour: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens Type:  Fixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV:

2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124°

4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°

6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°

• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:

2.8 mm: 4.5 m to ∞

• mm: 7 m to ∞

6 mm: 13 m to ∞

DORI

• DORI:

2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m

• mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m

6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m

Illuminator

• Supplement Light Type:  White light
• Supplement Light Range: 40 m
• Smart Supplement Light: Yes

General

• Power:

12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: (802.3af, Class 3, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W

• Dimension: 8 × 78.6 × 215.2 mm (3.1" × 3.1" × 8.5")
• Package Dimension: 315 × 137 × 141 mm (12.4" × 5.4" × 5.6")
• Weight: 850 g (1.9 lb.)
• With Package Weight: 1270 g (2.8 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Start up and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language:

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter

Data Sheet
