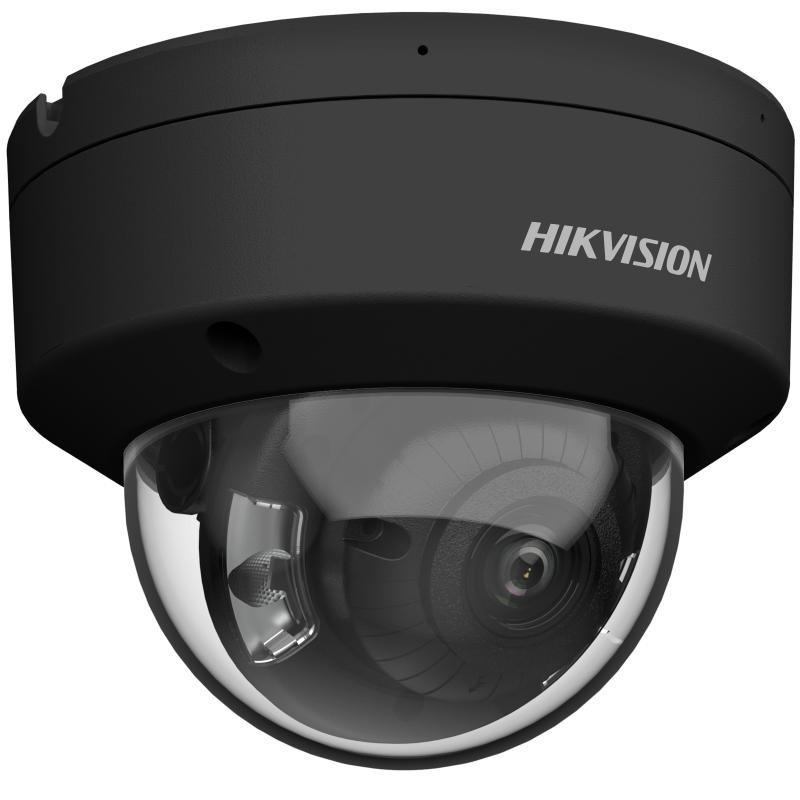

Hikvision 4K ColorVu Fixed Dome Network Camera

• High quality imaging with 8 MP resolution
• 24/7 colourful imaging
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• Focus on human and vehicle targets classification based on deep learning
• -SU: Built-in microphone for real-time audio security, audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK10)

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: 24/7 color imaging
• Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

2.8 mm, horizontal FOV 109°, vertical FOV 59°, diagonal FOV 130°

4 mm, horizontal FOV 93°, vertical FOV 49°, diagonal FOV 111°

• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:

• mm: 3.1 m to ∞

4 mm: 3.5 m to ∞

DORI

• DORI:

2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m

4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes

General

• Power12 VDC ± 25%, 0.6 A, max. 7 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5 W
• Material: Metal
• Dimension:

Ø121.5 mm × 97.6 mm (Ø4.8 × 3.8\")"

• Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight: 540 g (1.2 lb.)
• With Package Weight: 735 g (1.6 lb.)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat, anti-banding, mirror, flash log, password reset via email, pixel counter, password protection, one-key reset, three streams
• Start up and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
