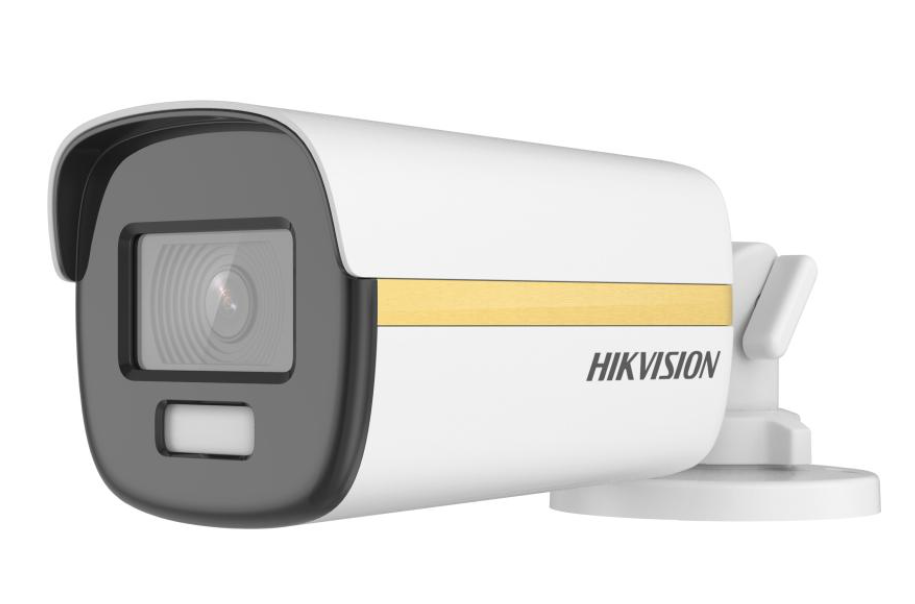

Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera

• High quality imaging with 8 MP, 3840 × 2160 resolution
• 24/7 color imaging
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, 3.6 mm, 6mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Water and dust resistant (IP67)

DATASHEET

Specification

Camera

• Image Sensor: 8 MP CMOS
• Signal System: PAL/NTSC
• Max. Resolution: 3840 (H) × 2160 (V)
• Min. Illumination: 0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
• Shutter Time: PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
• Day & Night: 24/7 Color Imaging
• Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Lens

• Lens Type: 2.8 mm, 3.6 mm, 6mm fixed focal lens
• Focal Length & FOV:

  2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131°

  3.6 mm, horizontal FOV: 93°, vertical FOV: 48°, diagonal FOV: 113°

  6 mm, horizontal FOV: 57°, vertical FOV: 30°, diagonal FOV: 67°

• Lens Mount: M16

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 40 m


• Frame Rate: TVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps
• Wide Dynamic Range (WDR): ≥130 dB
• Image Parameters Switch: STD/HIGH-SAT/HIGHLIGHT
• Day/Night Mode: Color
• White Balance: Auto/Manual
• Image Enhancement: WDR, BLC, HLC, Global, HLS
• Privacy Mask: 4 programmable privacy masks
• Noise Reduction: 3D DNR/2D DNR
• Image Settings: Brightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light, AGC

Interface

• Video Output: 1 HD analog output
• Alarm: Solid Light Alarm (White Light)

Event

• Motion detection: 4 programmable motion areas

General

• Language: English
• Operating Condition: -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Material: Metal
• Communication: HIKVISION-C
• Dimension: 194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
• Weight: Approx. 566 g (1.25 lb.)
• Power;

  12 VDC ± 25%/PoC.at, Max. 5.1 W

  *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

Approval

• Protection: IP67
