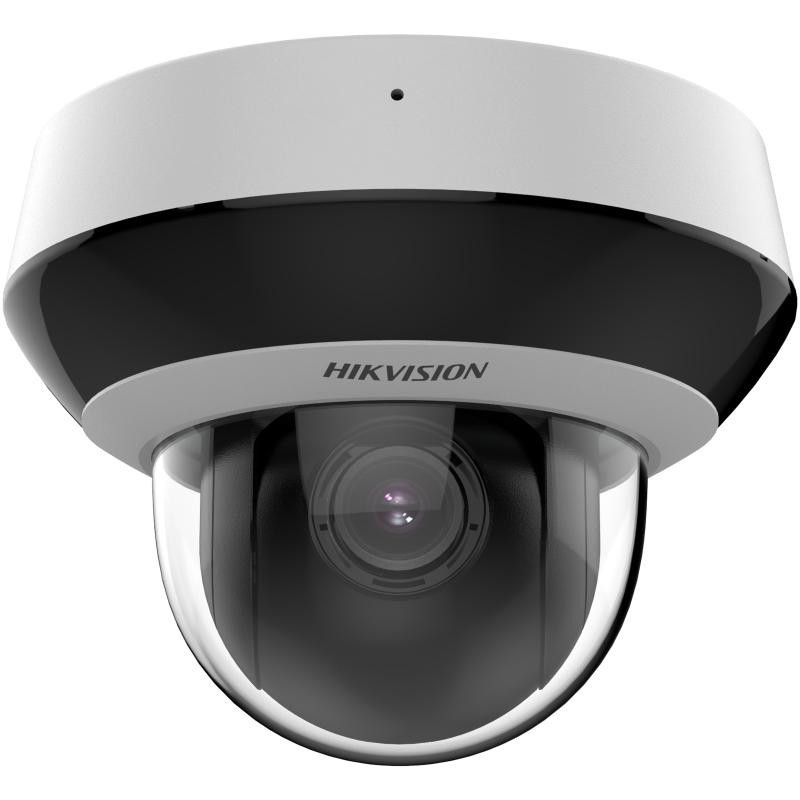

Hikvision 4MP 4X IR Mini Outdoor Acusense PTZ Camera - DS-2DE2A404IWG1-E

• High quality imaging with 4 MP resolution
• Focuses on human and vehicle classification based on deep learning
• Excellent low-light performance via powered-by-DarkFighter technology
• 4x optical zoom allows for closer viewing of subjects in expansive areas
• Built-in microphone and speaker for real-time audio security
• Up to 20 m IR range ensures safety at night
• Water and dust resistant (IP66) and vandal proof (IK10)

Specifications

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.005 Lux @ (F1.8, AGC ON),B/W: 0.001 Lux @ (F1.8, AGC ON),0 Lux with IR
• Shutter Speed: 1/1 s to 1/30,000 s
• Day & Night: IR cut filter
• Zoom: 4x optical, 16x digital
• Slow Shutter: Yes

Lens

• Focal Length: 2.8 to 12 mm
• FOV: Horizontal field of view: 99.4° to 32.8°, vertical field of view: 51.7° to 18.4°, diagonal field of view: 119.9° to 37.5°
• Focus: Auto, semi-auto, manual
• Aperture: Max. F1.8
• Zoom Speed: Approx. 2 s

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: IR Distance: up to 20 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

PTZ

• Movement Range (Pan): 0° to 355°
• Movement Range (Tilt): 0° to 90°
• Pan Speed: Pan speed: configurable from 0.1° to 50°/s, preset speed: 50°/s
• Tilt Speed: Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
• Proportional Pan: Yes
• Presets: 300
• Park Action: Preset,patrol scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Scheduled Task: patrol scan,Preset,dome reboot,dome adjust
• Power-off Memory: Yes

Video

• Main Stream;

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);

60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream;

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Video Compression;

Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG

• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed regions for main stream

Audio

• Audio Compression: G.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
• Audio Bit Rate: 64 Kbps (G.711),16 Kbps (G.722.1),32 to 160 Kbps (MP2L2),16 to 64Kbps (AAC-LC),16 Kbps (G.726)
• Audio Sampling Rate: 8 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Client: iVMS-4200, HikCentral Pro, Hik-Connect
• Web Browser: Chrome80+、Firefox80+、Safari13+、Edge89+


• Image Parameters Switch: Yes
• Image Settings: Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ＞52dB
• Defog: Digital Defog
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: 24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional Focus: Yes
• Regional Exposure: Yes

Interface

• Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: 1 built-in microphone, picking up sounds in the radius up to 5 meters
• Built-in Speaker: 1 built-in speaker, with effective distance reaching max. 10 meters
• Audio;

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;

1 output (line out), line level, output impedance: 600 Ω

• Reset: Yes
• Power Output: 12 VDC, max. 60 mA

Event

• Basic Event: Motion detection, video tampering alarm, exception
• Smart Event: Line crossing detection,intrusion detection,region entrance detection,region exiting detection
• Linkage: notify surveillance center,audible warning,trigger recording,send email,Upload to FTP/NAS/memory card

General

• Power: 12 VDC, Max. 9.2 W; PoE (802.3af)
• Dimension: Ø130.7 mm × 103.6 mm (Ø5.15" × 4.00")
• Weight: Weight: Approx. 560 g (1.23 lb.),With Package Weight: Approx. 780 g (1.72 lb.)
• Operating Condition: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)
• General Function: Mirror, password protection

Approval

• Protection: IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and voltage transient protection
