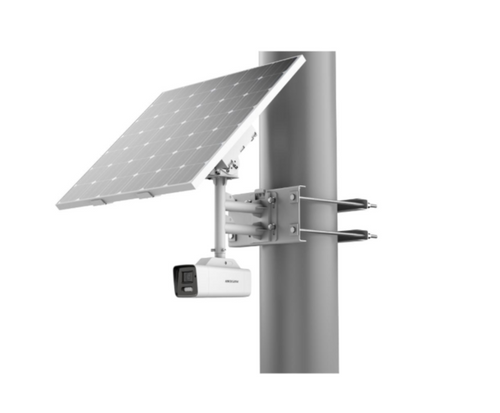

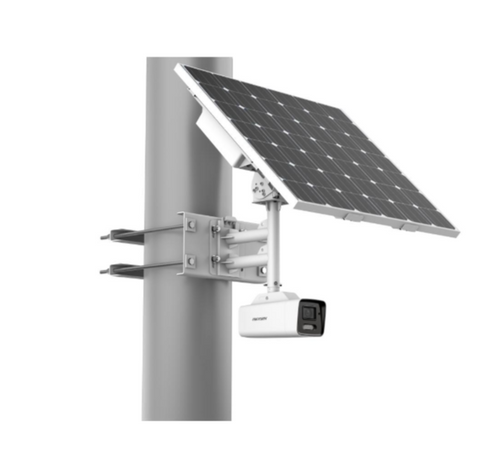

Hikvision 4MP ColorVu Fixed Bullet 4G Network Camera

• High quality imaging with 2560 × 1440@ 15 fps resolution
• 24/7 Colorful imaging
• Clear imaging against strong back light due to 130 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
• Camera: Water and dust resistant (IP67)
• Built-in 64 GB eMMC storage

DATASHEET

Specification

Camera

• Focal Length & FOV;

  2.8 mm, horizontal FOV: 105.7°, vertical FOV: 57.3°, diagonal FOV: 124.9°

  4 mm, horizontal FOV: 88.7°, vertical FOV: 44.7°, diagonal FOV: 107.5°

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Iris Type: Fixed
• Aperture: F1.0
• Lens Mount: M16

DORI

• DORI;

  2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 5.5 m

  4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7.5m

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes

Video

• Main Stream;

  50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

  60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 12.5 fps (640 × 480, 640 × 360)

  60 Hz: 15 fps (640 × 480, 640 × 360)

• Third Stream;

  50 Hz: 1 fps (1280 × 720, 640 × 480)

  60 Hz: 1 fps (1280 × 720, 640 × 480)

• Video Compression;

  Main stream: H.264/H.265

  Sub-stream: H.264/H.265/MJPEG

  Third Stream: H.265/H.264

  *Performance mode: main stream supports H.264+, H.265+

• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 4 fixed regions for main stream

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• User/Host;

  Up to 32 users

  3 user levels: administrator, operator, and user

• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
• Network Storage;

  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Client: Hik-Connect (proactive mode also supports), Hik-central Professional
• Web Browser;

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication

• SIM Card Type: MicroSIM
• Frequency;

  DS-2XS6A47G1-L/4G:

  LTE-TDD: Band38/40/41

  LTE-FDD: Band1/3/5/7/8/20/28

  WCDMA: Band1/5/8

  GSM: 850/900/1800MHz



  DS-2XS6A47G1-L/4G (US):

  LTE-FDD: Band2/4/5/12/13/66/71

  WCDMA: Band2/4/5



  DS-2XS6A47G1-L/4G (LA):

  LTE-TDD: Band38/40

  LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66

  WCDMA: Band1/2/3/4/5/8

  GSM: 850/900/1800/1900MHz



  DS-2XS6A47G1-L/4G (JP):

  LTE-TDD: Band41

  LTE-FDD: Band1/3/8/11/18/19/21/26/28

  WCDMA: Band1/6/8/19



• Standard;

  DS-2XS6A47G1-L/4G: LTE-TDD/LTE-FDD/WCDMA/GSM

  DS-2XS6A47G1-L/4G (US): LTE-FDD/WCDMA

  DS-2XS6A47G1-L/4G (LA): LTE-TDD/LTE-FDD/WCDMA/GSM

  DS-2XS6A47G1-L/4G (JP): LTE-TDD/LTE-FDD/WCDMA


• Wide Dynamic Range (WDR): 130 dB
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR, Defog
• Image Parameters Switch: Yes
• Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR: ≥ 52 dB
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• RS-485: 1 RS-485 (half duplex, connect to external battery)
• Audio;

  1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

  1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

• Alarm: 1 input(s), 1 output(s) (max. 12 VDC, 1 A)
• On-Board Storage;

  Built-in memory card slot, support microSD card, up to 256 GB;

  Built-in 64 GB eMMC storage

• Reset Key: Yes
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Power Output: 12 VDC, max. 1000 mA

Event

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

General

• Power;

  12 VDC ± 20%, Ø5.5 mm coaxial power plug

  1. Standby power consumption: 53 mW

  2. The average power consumption of 24 hours: 2 W (4G transmission is excluded).

  3. The max. power consumption: 3.2 W

• Material: Front cover: metal, body: metal, bracket: metal
• Dimension:263.5 × 224.3 × 128.7 mm (10.4" × 8.8" × 5.1")
• Package Dimension: 405 × 260 × 177 mm (15.9" × 10.2" × 7.0")
• Weight: Approx. 2.3 kg (5.1 lb.)
• With Package Weight: Approx. 3.2 kg (7.1 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Approval

• EMC;

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  FCC (47 CFR Part 15, Subpart B);

  IC (ICES-003: Issue 7)

• RF;

  CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133);

  ICASA: same as CE-RED

  FCC ID (47 CFR Part15 Subpart C);

  IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5);

  MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)

• Safety;

  CB (IEC 62368-1:2014+A11)

  CE-LVD (EN 62368-1:2014/A11:2017)

  LOA (IEC/EN 60950-1)

• Environment;

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• Protection: Camera: IP67 (IEC 60529-2013)
