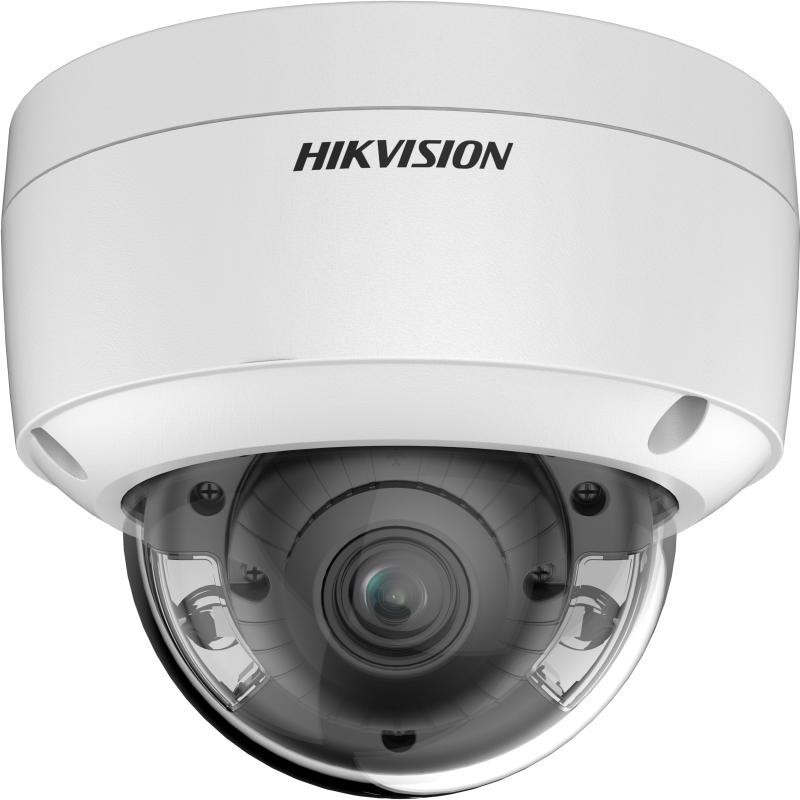

Hikvision 4MP ColorVu Fixed Dome Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• 24/7 colourful imaging
• Focus on human and vehicle targets classification based on deep learning
• -SU: Built-in microphone for real-time audio security, audio and alarm interface available
• Water and dust resistant (IP67) and vandal resistant (IK10)

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: 24/7 Color imaging
• Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°

• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:

• mm: 2.5 m to ∞

4 mm: 3.5 m to ∞

DORI

• DORI:

• mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m

4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

• Supplement Light Type:  White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light:  Yes

General

• Power:

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W

• Dimension: Ø121.4 mm × 100.1 mm (Ø4.8" × 3.9")
• Package Dimension: 150 mm × 150 mm × 141 mm (5.9" × 5.9" ×5.6")
• Weight: 600 g (1.3 lb.)
• With Package Weight: 820 g (1.6 lb.)
• Language:

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Start up and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
