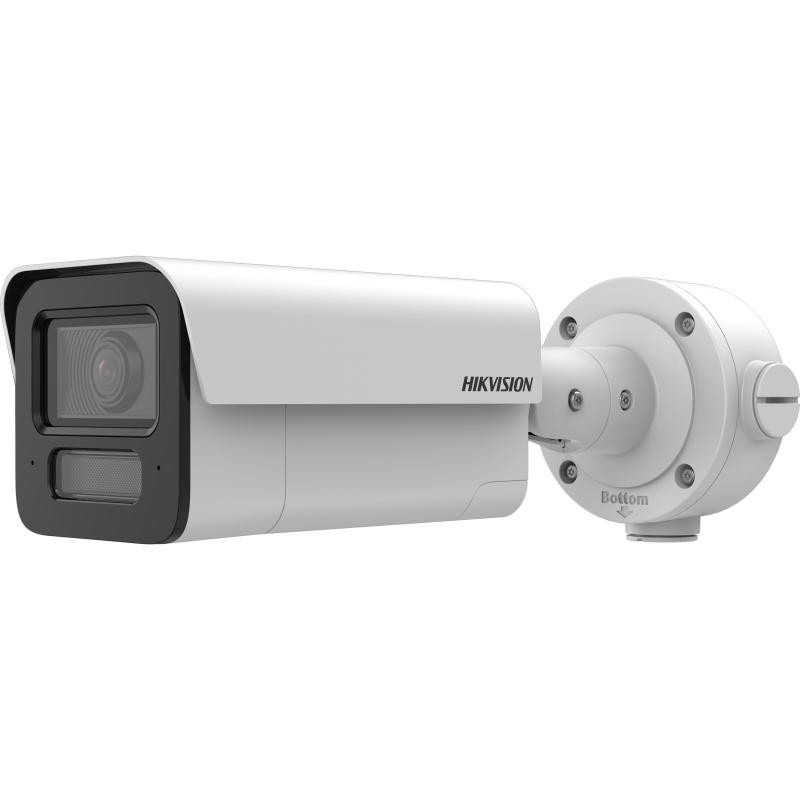

Hikvision 4MP DeepinViewX Fixed Lens Bullet Camera for Perimeter Protection

Product code: UK-iDS-2CD5T47G2/V-XS(2.8mm)
Condition: New
Availability: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.uk | Call Us: +44 330 043 2524

Request A Quote

SSL Secure Payment

Hikvision 4MP DeepinViewX Fixed Lens Bullet Camera for Perimeter Protection

Hikvision 4MP DeepinViewX Fixed Lens Bullet Camera for Perimeter Protection

Hikvision 4MP DeepinViewX Fixed Lens Bullet Camera for Perimeter Protection

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via DarkFighter2.0 technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
  • Built-in front window heater to ensure clear image under rainy or snowy weather
  • Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras

Datasheet

Specifications

Camera

  • Image Sensor: 1/1.8" Progressive Scan CMOS
  • Max. Resolution: 2688 × 1520
  • Min. Illumination: Color: 0.0014 Lux @ (F1.0, AGC ON),B/W: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR,0 Lux with light
  • Shutter Time: 1 s to 1/100,000 s
  • Day & Night;

IR cut filter,

Blue glass module (less ghost phenomenon)

Lens

  • Focal Length & FOV;

2.8 mm, horizontal FOV 104°, vertical FOV 54°, diagonal FOV 127°

4 mm, horizontal FOV 89°, vertical FOV 46°, diagonal FOV 108°

  • Iris Type: Fixed
  • Aperture: F1.0

DORI

  • DORI;

2.8 mm, D (Detect): 61 m, O (Observe): 24 m, R (Recognize): 12 m, I (Identify): 6 m

4 mm, D (Detect): 75 m, O (Observe): 30 m, R (Recognize): 15 m, I (Identify): 7 m

The DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.

Illuminator

  • Supplement Light Type: IR,White Light
  • Supplement Light Range: Up to 80 m
  • Smart Supplement Light: Yes
  • IR Wavelength: 850 nm

General

  • Power;

two-core terminal block,

12 VDC ± 20%, 1.4 A, max. 16.8 W,

PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.4 A to 0.3 A, max. 17.1 W

  • Material: Aluminum alloy body
  • Dimension: 326.3 mm × 113.0 mm × 88.5 mm (12.85" × 4.45" × 3.48")
  • Package Dimension: 386 mm × 156 mm × 155 mm (15.3" × 6.2" × 6.2")
  • Weight: Approx. 1370 g (3 lb.)
  • With Package Weight: Approx. 2084 g (4.59 lb.)
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions;

With -H: -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing),

Without -H: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)

  • Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function: Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log
  • Heater: Yes
  • Demist: Yes
