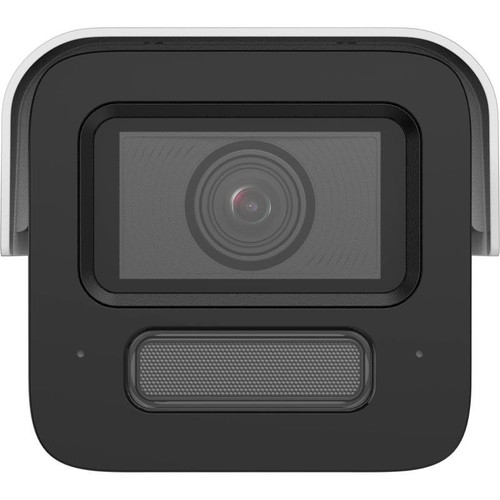

Hikvision 4MP DeepinViewX Triple Fixed Lens Bullet Camera for Perimeter Protection

• High quality imaging with 4MP and 2 × 2MP Resolution
• Excellent low-light performance via DarkFighter 2.0 Sharp motion
• Efficient H.265+ compression technology to save bandwidth and storage
• Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
• Dedicated Guanlan large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras. Detect person and vehicle up to 120 m
• Red/blue alarm LED and audible warning
• Motorized tilt adjustment from -10° to 10° for easy installation
• TPM 2.0 for cyber security

Specification

Camera

• Image Sensor: 1/2.7" Progressive Scan CMOS
• Max. Resolution:

Channel 1: 2688 × 1520

Channel 2: 1920 × 1080

Channel 3: 1920 × 1080

• Min. Illumination:

Channel 1: Colour: 0.005 Lux @ (F1.2, AGC ON),B/W:0.002 Lux @ (F1.2, AGC ON),0 Lux with IR;

Channel 2: Colour: 0.005 Lux @ (F1.2, AGC ON),B/W:0.0002 Lux @ (F1.2, AGC ON),0 Lux with IR;

Channel 3: Colour: 0.005 Lux @ (F1.2, AGC ON),B/W:0.0002 Lux @ (F1.2, AGC ON),0 Lux with IR

• Shutter Time: 1 s to 1/100,000 s

Lens

• Aperture:

4 mm, F1.6

12 mm, F1.6

25 mm, F2.8

• Focal Length & FOV:

4 mm, horizontal FOV 82.5°, vertical FOV 45.3°, diagonal FOV 96.1°

12 mm, horizontal FOV 25.4°, vertical FOV 14.4°, diagonal FOV 29.1°

• m, horizontal FOV 13.0°, vertical FOV 7.4°, diagonal FOV 14.9°

• Iris Type: Fixed

DORI

• DORI:

4 mm, D: 77.6 m, O: 30.8 m, R: 15.5 m, I: 7.8 m

12 mm, D: 171 m, O: 67.9 m, R: 34.2 m, I: 17.1 m

25 mm, D: 331 m, O: 131.4 m, R: 66.2 m, I: 33.1 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 120 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

General

• Power:

12 VDC ± 20%, 2.1 A, max. 25.2 W

PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.56 A to 0.45 A, max. 25.5 W

• Material: Front cover: metal, body: metal, bracket: metal
• Dimension: 9 mm × 139.5 mm × 337 mm (5.1" × 5.5" × 13.2")
• Package Dimension: 423 mm × 200 mm × 198 mm (16.65" × 7.87" × 7.8")
• Weight:

With -Y: Approx. 2500 g (5.51 lb.),

Without -Y: Approx. 2510g (5.53 lb.)

• With Package Weight

With -Y: Approx. 3470 g (7.65 lb.),

Without -Y: Approx. 3530 g (7.78 lb.)

• Storage Conditions: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions:

With -H: -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing),

Without -H: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing)

• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, password protection, one-key reset
• Heater: -Y: Yes
• Device Management: Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
