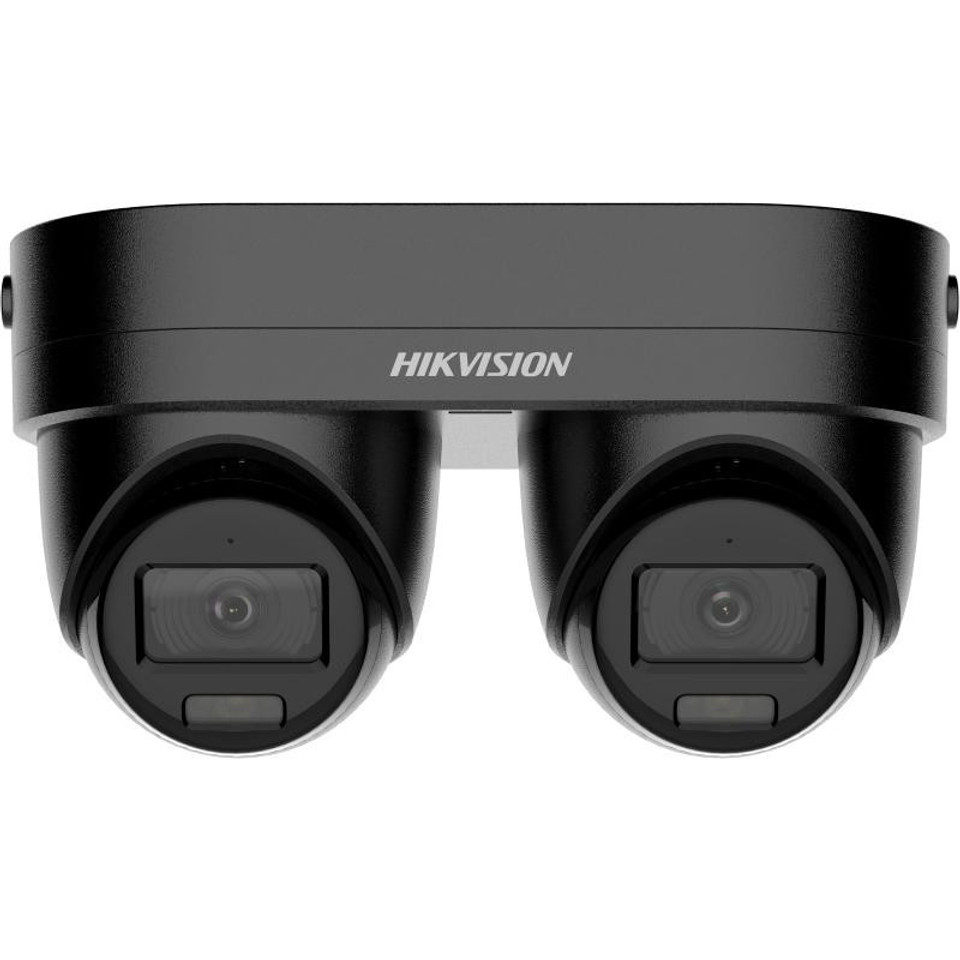

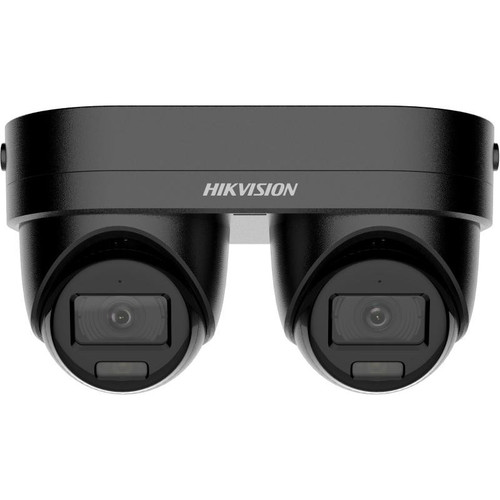

Hikvision 4MP Acusense Motorized Varifocal Turret Network Camera

• 2 independent channels, 1 wiring, 1 IP
• 2.8/4 mm in one camera, point vari-focal
• Innovative interpolated design, highly waterproof and user-friendly
• Excellent low illumination performance via Powered by DarkFighter
• Active strobe light and audio alarm to warn intruders off
• Anti-corrosion design (NEMA 4X), more reliable
• Person and vehicle classification based on deep learning
• Crystal-clear audio with Arrayed Dual-Mic

Specification

Camera

• Image Sensor:

Channel 1: 1/3" Progressive Scan CMOS,

Channel 2: 1/3 Progressive Scan CMOS"

• Max. Resolution:

Channel 1: 2688 × 1520,

Channel 2: 2688 × 1520

• Min. Illumination:

Channel 1: Colour: 0.001 Lux @ (F1.6, AGC ON),0 Lux with IR,

Channel 2: Colour: 0.001 Lux @ (F1.6, AGC ON),0 Lux with IR

• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night:

Channel 1: IR cut filter,

Channel 2: IR cut filter

• Angle Adjustment:

Channel 1: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°,

Channel 2: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

• Lens Type: Channel 1: Varifocal lens, motorized lens,2.8mm and 4mm Channel 2: Varifocal lens, motorized lens,2.8mm and 4mm
• Focal Length & FOV:

Channel 1:

2.8 mm, horizontal FOV 99.3°, vertical FOV 52.9°, diagonal FOV 120.2°

4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0°

Channel 2:

2.8 mm, horizontal FOV 99.3°, vertical FOV 52.9°, diagonal FOV 120.2°

4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0°

• Lens Mount: Ø14
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field:

2.8 mm: 1.2 m to ∞

4 mm: 1.5 m to ∞

DORI

• DORI:

Channel 1:

2.8 mm, D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m

4 mm, D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m

Channel 2:

• mm, D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m

4 mm, D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

General

• Power

12 VDC ± 25%, 1.42 A, max. 17 W, two-core terminal block, reverse polarity protection,

PoE: IEEE 802.3at, Class 4, max. 18 W

• Material: Metal
• Dimension: 9 mm × 120.1 mm × 97.2 mm (7.9" × 4.7" × 3.8")
• Package Dimension: 305 mm × 162 mm × 165 mm (12.0" × 6.4" × 6.5")
• Weight: 1200 g (2.6 lb.)
• With Package Weight: 1567 g (3.5 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
• Flashing Light:

-SRB: Red and Blue Light

-SL: White Light
