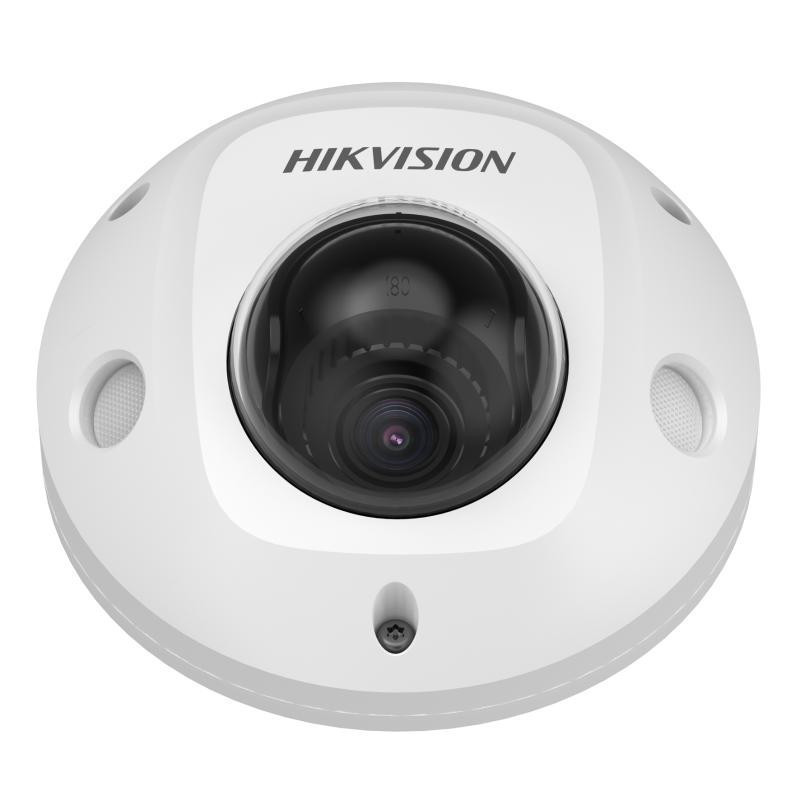

Hikvision 4MP Mobile Dome Camera - 1 RJ45 10M/100M Self-adaptive Ethernet Port - DS-2XM6746G1-ID(2mm)(AE)

• High quality imaging with 4MP resolution
• 2/2.8/4mm fixed lens
• Clear imaging against strong back light based on 120 dB WDR technology
• Water and dust resistant (IP67) and vandal resistant(IK10）

Datasheet

Specification

Camera

• Shutter Speed: 1/3 s to 1/100,000 s
• P/N;

PAL: 25fps

NTSC: 30fps

Enable Third Stream，cannot configure 2560 * 1920 @ 30fps

Third Stream Not Enabled，can be configured 2560 * 1920 @ 30fps

• Day & Night: IR Cut Filter
• Angle Adjustment: Pan:-30°~+30°, Tilt: 0°~75°, Rotate: 0°~ 360°
• White Balance;

Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light;

Support manual/automatic white balance adjustment.

Lens

• Focal Length: 2mm/2.8mm/4mm
• Focal Length & FOV;

2 mm, horizontal FOV 122°, vertical FOV 71°, diagonal FOV 139°

2.8 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 112°

4 mm, horizontal FOV 78°, vertical FOV 40°, diagonal FOV 93°

• Lens Mount: M12
• Focus: Manual focus
• Max. Aperture;

2mm: F2.25

2.8mm/4mm: F1.6

Network

• Protocols: TCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS ,RTSP,SNMP,QOS,FTP,RTCP,NTP,UPNP,SMTP,IGMP,ICMP,IPV6,UDP,SSL/TLS
• Simultaneous Live View: Up to 8 channels
• API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User Management: Up to 16 users, 3 levels: Administrator, Operator and User

• Web Browser: IE8+, Chrome45+, Edge41+, Firefox45+

Interface

• Video Output: Not supported
• Ethernet Interface;

-ID: 1 RJ45 10M/100M self-adaptive Ethernet port

-IM/ND: 1 four-core M12 aviation plug

• Audio: 1 built-in mic, mono sound
• Reset Key: Support
• Interface Type: Interpolate
• TF Card Storage: Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering)

General

• Product Dimension: 110 mm × 57.4 mm (4.3" × 2.26")
• Package Dimension: 252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
• Power;

PoE: 0.30 A to 0.20 A, max: 7.5W

DC: 0.83A to 0.21A, max: 7.5W

• Product Weight: Approx. 452 g (1 lb.)
• With Package Weight: 252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
• Protection: IP67, IK10
• Camera Material: Metal
• Startup and Operating Conditions: -30 °C to 75°C (-22 °F to 167°F), humidity 95% or less (non-condensing)
• Language: English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
• General Function: Anti-flicker, heartbeat, mirror
• Software Reset: Support
• Power Supply;

-ID: 9-36V& PoE (802.3af, 36 V to 57 V)

-IDM: 9-36V& PoE (802.3af, 36 V to 57 V)

-IM/ND: PoE (802.3af, 36 V to 57 V)

• Power Interface;

-ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply

-IM/ND: 4-core M12 aviation plug, PoE power supply

• Cable Length: 50 cm
