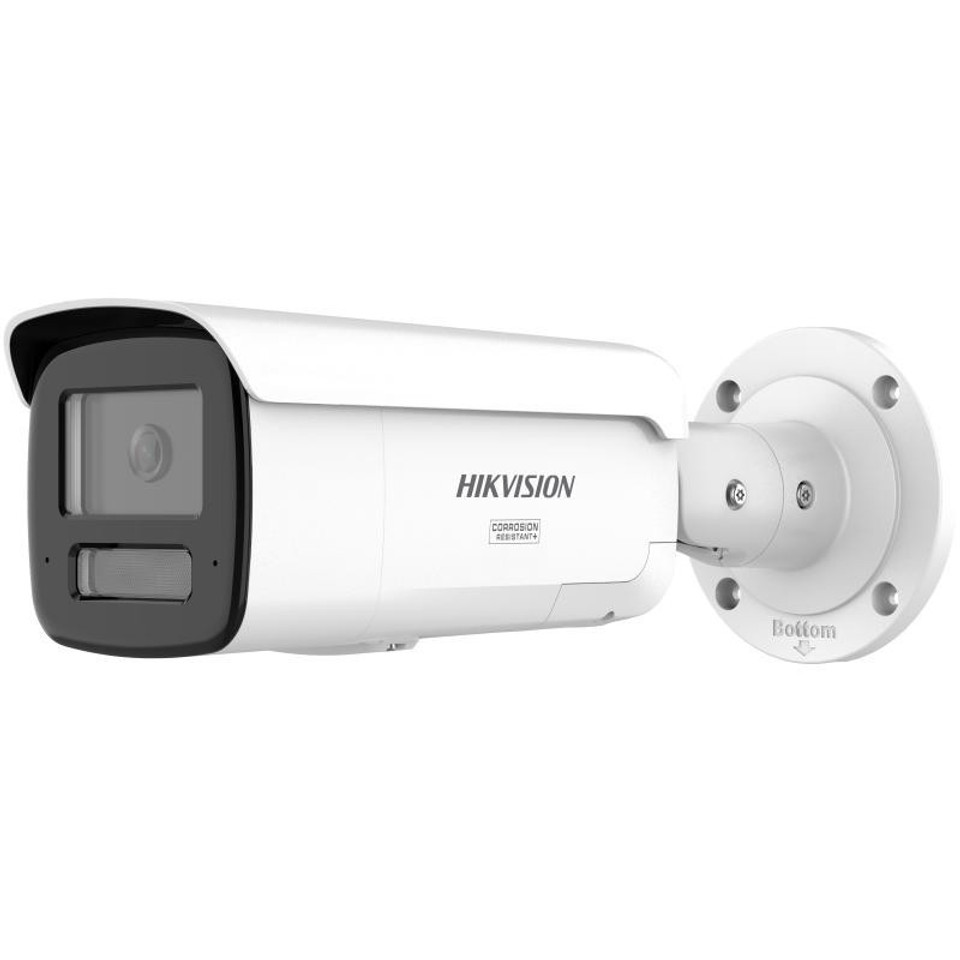

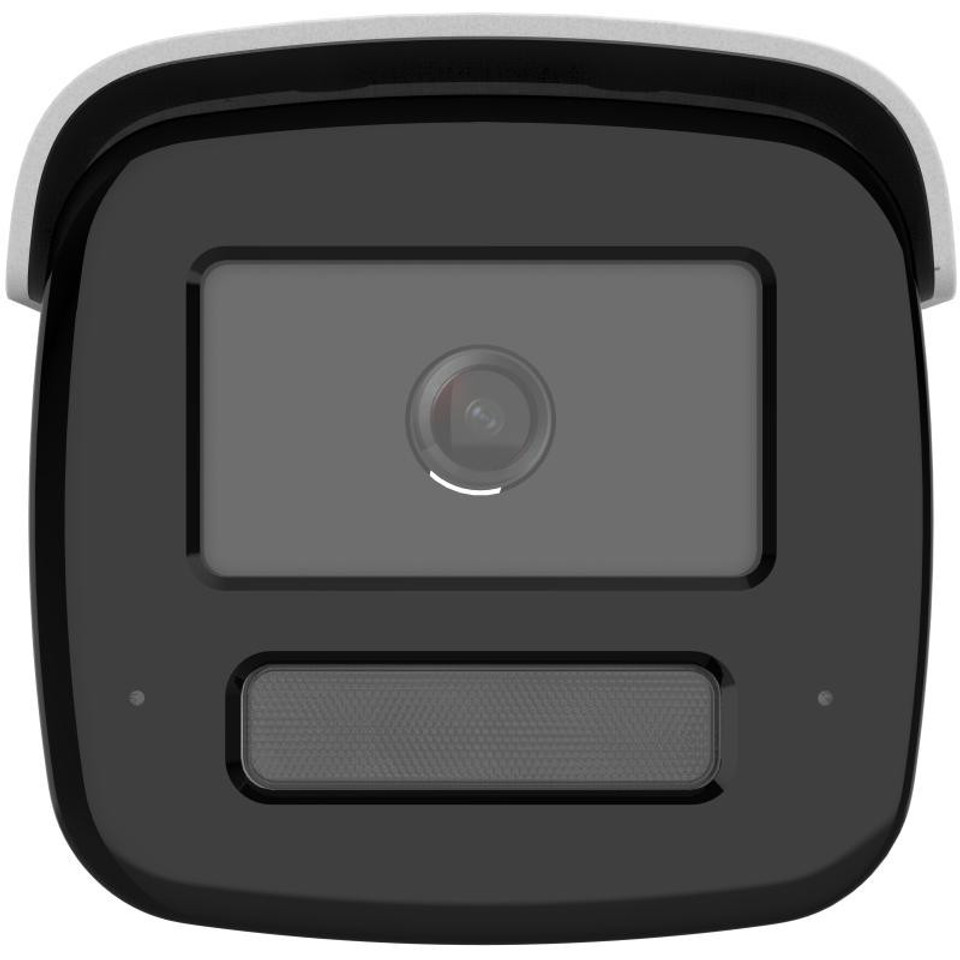

Hikvision 4 MP Smart Hybrid Light with ColorVu Fixed Bullet Network Camera

• HikAI-ISP for excellent noise reduction effect
• 24/7 colourful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• Provide real-time security via built-in two-way audio
• Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)
• Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
• Audio and alarm interface available
• Water and dust resistant (IP67)
• Active strobe light and audio alarm to warn intruders off

Specification

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
• Shutter Time: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:

2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°

4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°

• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field:

• mm: 2.5 m to ∞

4 mm: 3.1 m to ∞

DORI

• DORI

• mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m

4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

• Supplement Light Type: White Light,IR
• Supplement Light Range: Up to 60 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

General

• Power:

12 VDC ± 25%, 1.41 A, max. 17 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

PoE: IEEE 802.3at, Class 4, max. 18 W

• Material: Front cover: metal, body: metal, bracket: Metal
• Dimension: 7 mm × 93.3 mm × 91.2 mm (11.3" × 3.7" × 3.6")
• Package Dimension: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
• Weight: 1250 g (2.8 lb.)
• With Package Weight: 1800 g (4.0 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Flashing Light:

/SRB model: Red and Blue Light

/SL model: White Light
